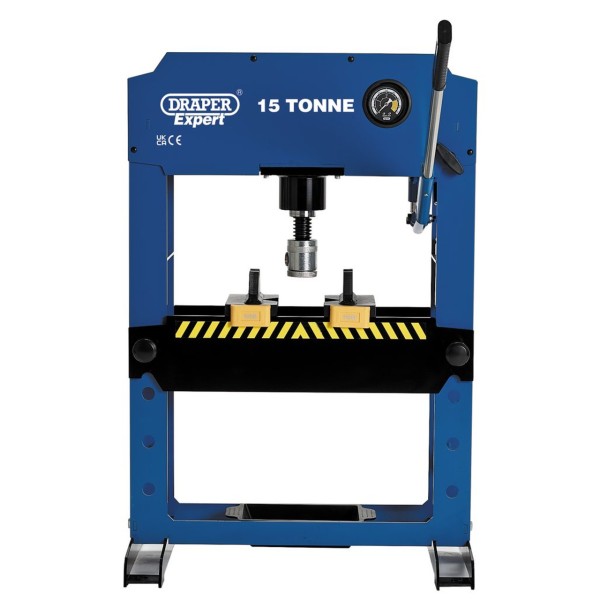

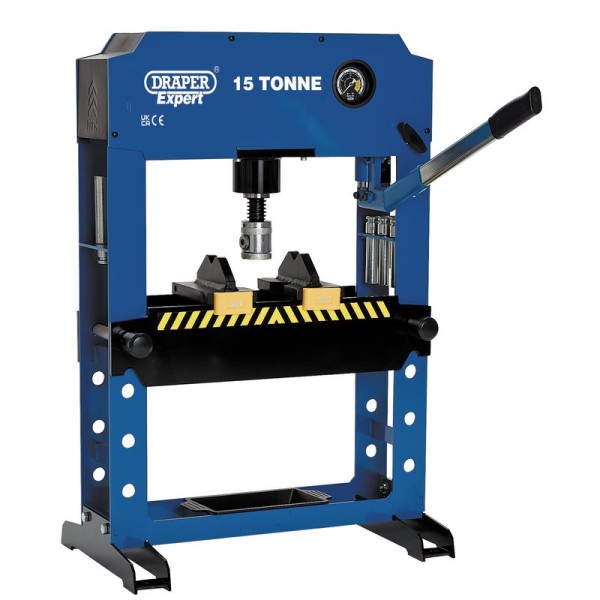

Draper Expert Hydraulic Bench Press, 15 Tonne (70563)

Robust hydraulic 15 tonne bench press with hand pump for manual hydraulic operation. There are eight adjustable table heights with a working range between 45-385mm. Robot welding one-piece frame for increased stability. There are dustproof covers fitted to the top of the frame to prevent dust entering the pump and ram, which helps to increase their service life. There is a removable parts tray located in the frame base. Supplied with eight press pins ranging from 2-15 tonnes and two flat v-shaped pressing blocks.

• Adjustable table heights
• Manual hydraulic operation
• Storage tray located in the base frame, which can be removed
• Supplied with press pins

Specifications

• Capacity 15 Tonne
• Gauge diameter 60mm
• Ram stroke 170mm
• Ram diameter 50mm
• Table height 45-385mm
• Press pin capacity 2-15 Tonnes
• Overall height 855mm
• Frame dimensions (H) 810 x (W) 440 x (D) 134mm
• Weight (net) 56kg
