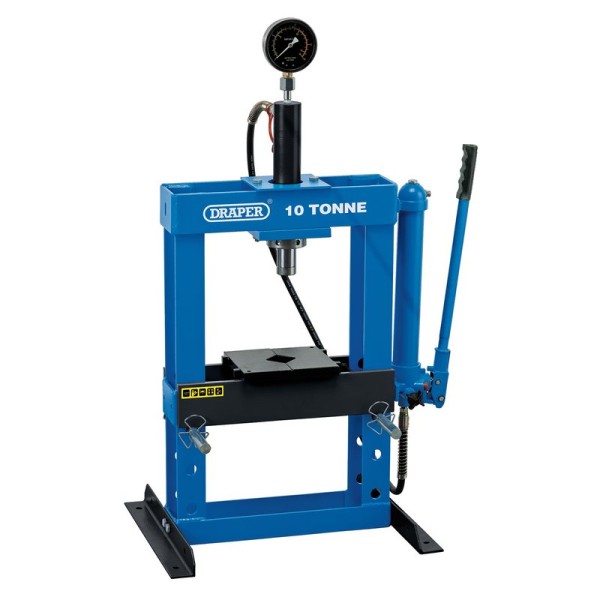

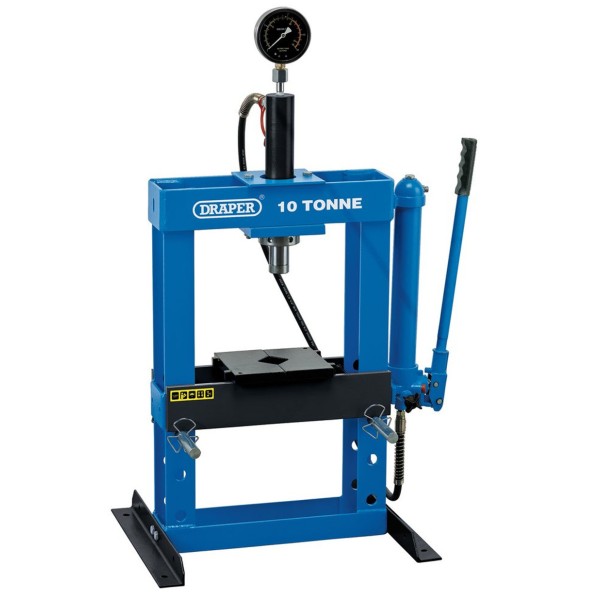

Draper Bench Press, 10 Tonne (70538)

Robust hydraulic 10 tonne bench press with sliding ram. There are four adjustable table heights: 110, 195, 280 and 365mm. The glycerine liquid filled gauge provides increased accuracy and prolonged service life. There is a detachable hand pump that can be secured to the press or bench. An anti-kink coil is fitted to each end of the flexible hose for increased protection. Fitted with a safety valve to prevent the press from overloading. Complete with two flat V-shaped blocks. Fully tested and certified for safe, reliable operation.

• Sliding ram
• Four adjustable table heights between 110-365mm
• Glycerine filled gauge for increased accuracy and long service life
• Detachable hand pump that can be secured to the press or bench
• Anti-kink coil fitted to each end of the flexible hose for increased protection

Specifications

• Capacity 10 tonne
• Gauge range 0-16 tonne
• Gauge diameter 105mm
• Ram stroke 175mm
• Ram diameter 40mm
• Ram height to table 110-365mm
• Working table width 335mm
• Overall height 1058mm
• Weight 55kg
