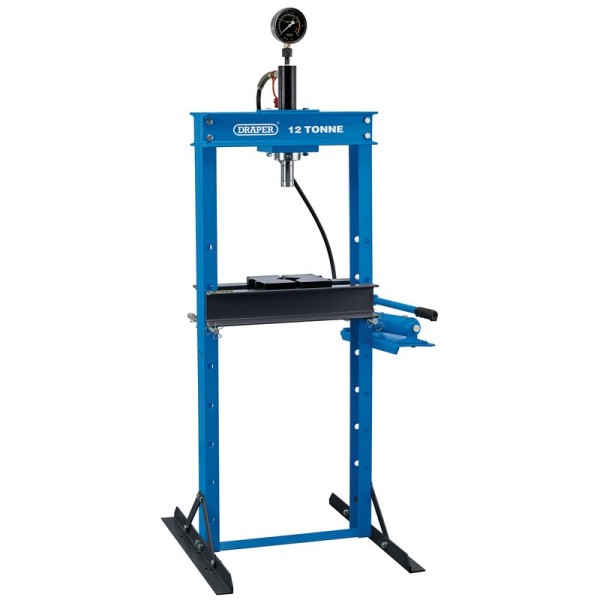

Draper 12 Tonne Floor Press

FEATURES:

For use in the garages and workshops. Featuring a sliding ram, 8 x adjustable platform heights ranging between 77 - 917mm, a liquid - filled gauge for increase accuracy and prolonged service life and a detachable hand pump, which can be secured to the press or bench. Fitted with an anti - kink coil fitted at each end of the flexible hose for added protection and Supplied with 2 x flat V - shaped blocks.

SPECIFICATION:

• Capacity 12 tonne
• Frame Depth 80mm
• Frame Height 1350mm
• Frame width 630mm
• Max Table to Ram Height 917mm (max.)
• Min Table to Ram Height 77mm (max.)
• Overall height 1655mm
• Ram stroke 180mm
• Ram Type Sliding
• Working table width 455mm
• Weight 78.5kg
