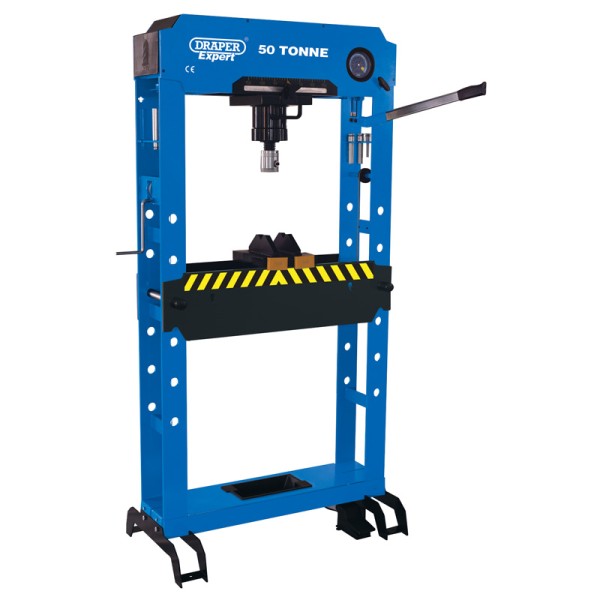

Draper Expert Pneumatic/Hydraulic Floor Press, 50 Tonne (35582)

Pneumatic and manual 50T floor press with movable cylinder. Supplied with pin set and two V blocks for working on cylindrical workpieces. Fitted with two stage working table adjustment and built in pin set storage on pallet.

• Pneumatic and manual 50T floor press with movable cylinder
• Supplied with pin set and two V blocks for working on cylindrical workpieces
• Fitted with two stage working table adjustment and built in pin set storage

Specifications

• Capacity 50 tonnes
• Max Height Ram to Table 780mm
• Min Height Ram to Table 80mm
• Overall Height 1900mm
• Overall Width 930mm
• Ram Stroke 215mm
• Table Depth 200mm
• Table Width 750mm
