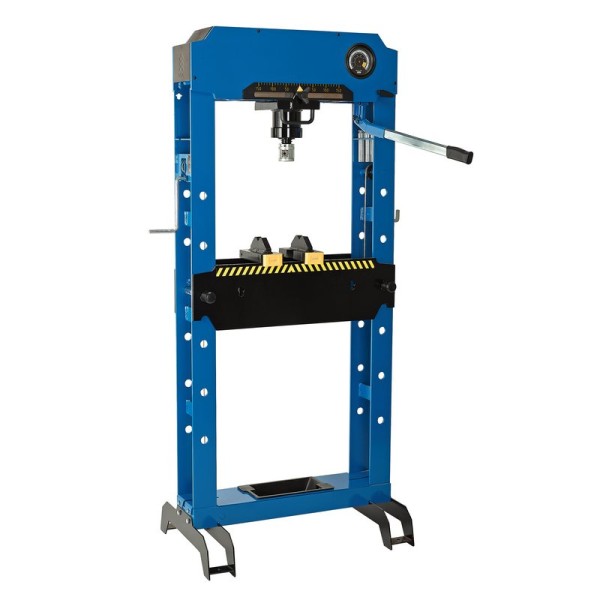

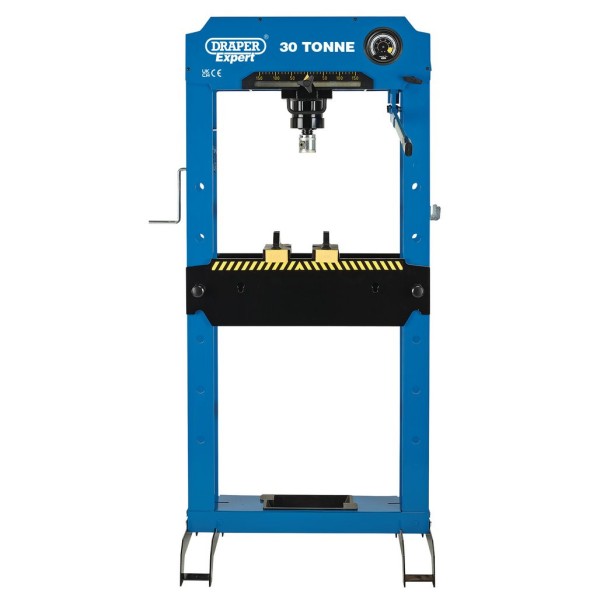

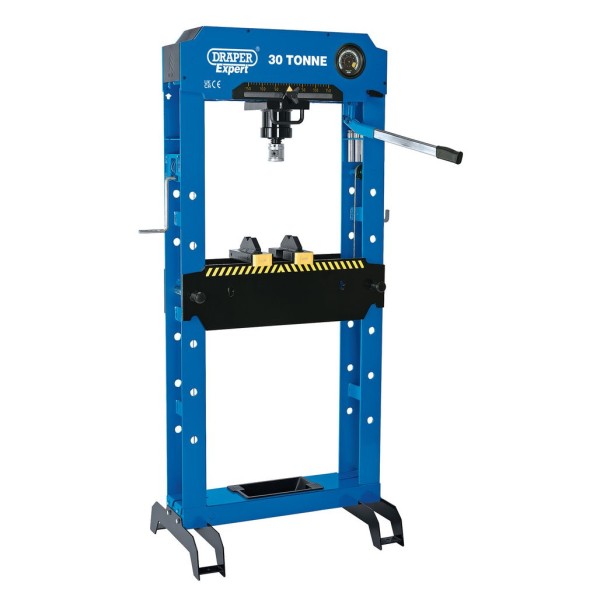

Draper Expert Hydraulic Floor Press, 30 Tonne (70561)

Robust hydraulic 30 tonne floor press with sliding ram for precise pressing. Fitted with hand pump for manual hydraulic operation. There are 12 adjustable table heights with a working range between 25-850mm. The table can be lifted or lowered using a winch. Robot welding one-piece frame for increased stability. There are dustproof covers fitted to the top of the frame to prevent dust entering the pump and ram, which helps to increase their service life. There is a removable parts tray located in the frame base. Supplied with eight press pins ranging from 2-15 tonnes and two flat v-shaped pressing blocks.

• Sliding ram
• Rack and pinion table
• Storage tray located in the base frame, which can be removed
• Supplied with press pins

Specifications

• Capacity 30 Tonne
• Gauge diameter 100mm
• Ram stroke 220mm
• Ram scale 145mm - 0mm - 145mm
• Ram diameter 50mm
• Table height 25-850mm
• Press pin capacity 2-15 Tonnes
• Overall height 1800mm
• Frame dimensions (H) 1685 x (W) 600 x (D) 148mm
• Weight (net) 157kg
