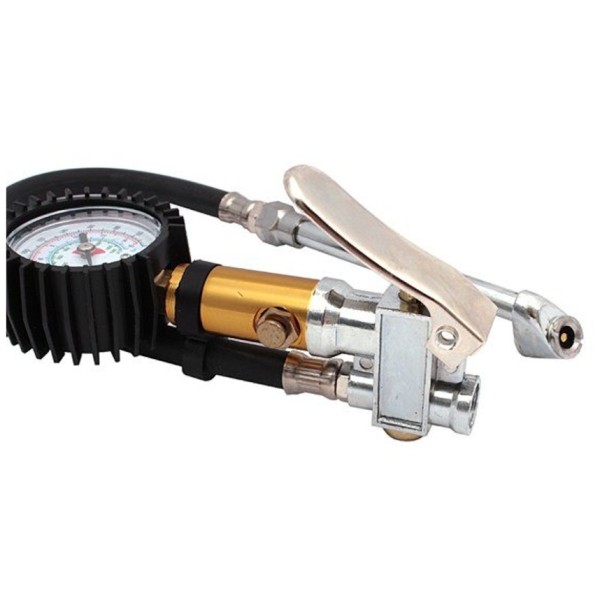

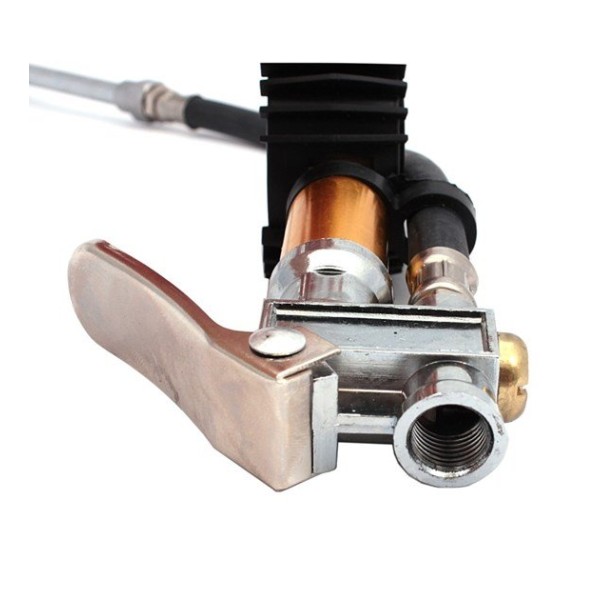

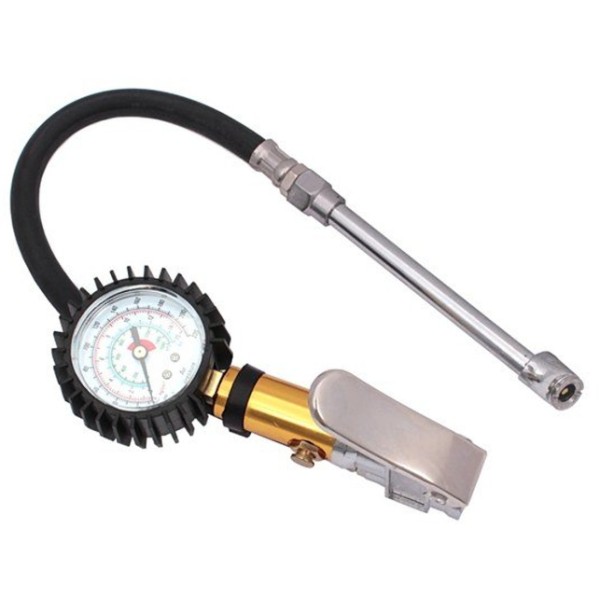

The IRPIPO2 Tyre Inflator Gun with Gauge is designed for quick tyre inflation and accurate pressure checking using a compressed air system. It combines an inflator gun, mechanical pressure gauge, air release valve and hose in one practical tool, making it suitable for garages, workshops, tyre service areas, fleet maintenance and home use.
The mechanical gauge features a clear dial with a scale up to 15 bar / 220 psi, allowing users to monitor tyre pressure while inflating. The four-unit scale supports readings in psi, kg/cm², kPa and bar, making it easy to work with different pressure standards.
The built-in air release valve allows controlled pressure reduction without removing the tool from the tyre valve. This helps users fine-tune pressure to the recommended level quickly and accurately.
The gauge is protected by a rubber housing to help reduce damage from typical workshop impacts. The 35cm hose improves access to tyre valves, while the quick coupler and 1/4" thread support fast connection to compressed air systems.
Features
- Tyre inflator gun with mechanical pressure gauge
- Suitable for inflating and checking tyre pressure
- Gauge scale up to 15 bar / 220 psi
- Four-unit pressure scale: psi, kg/cm², kPa and bar
- Air release valve for precise pressure adjustment
- Rubber gauge housing for impact protection
- 35cm hose for easier valve access
- Quick coupler for fast compressor connection
- 1/4" connection thread
- Simple and intuitive operation
- Suitable for workshop, garage and home use
- Universal use for cars, vans, motorcycles, scooters and bicycles
Typical Applications
- Inflating car tyres
- Checking tyre pressure
- Adjusting tyre pressure to the recommended value
- Use with workshop compressors
- Garage and tyre service work
- Fleet maintenance
- Motorcycle and scooter tyre inflation
- Bicycle tyre inflation where compatible
- Mobile service and general maintenance work
Benefits
- Combines inflation and pressure checking in one tool
- Helps maintain correct tyre pressure
- Air release valve allows fine pressure adjustment
- Four pressure units make readings easier across different standards
- Rubber-protected gauge improves durability in workshop conditions
- Quick coupler saves setup time
- 35cm hose improves access around wheel valves
- Suitable for both professional and home users
- Helps reduce the need for separate pressure checking tools
Technical Information
- Product Code: IRPIPO2
- Product Name: Tyre Inflator Gun with Gauge
- Product Type: Tyre Inflator with Mechanical Pressure Gauge
- Gauge Range: Up to 15 bar / 220 psi
- Pressure Units: psi, kg/cm², kPa, bar
- Gauge Type: Mechanical
- Gauge Housing: Rubber protected
- Valve: Air release valve
- Connector: Quick coupler
- Connection Thread: 1/4"
- Hose Length: 35cm
- Product Weight: 0.477 kg
- Unit of Measure: pcs
- EAN13 Barcode: 5907630151643
- Intended Use: Tyre inflation and tyre pressure checking with compressed air
Instructions for Use
- Connect the quick coupler to a compressed air hose or compressor system. Check that all connections are secure before use.
- Place the inflator nozzle firmly onto the tyre valve.
- Squeeze the trigger to inflate the tyre. Monitor the pressure gauge while inflating.
- To reduce pressure, use the air release valve until the required value is reached.
- Always follow the tyre or vehicle manufacturer’s recommended pressure value.
- After inflation, release the trigger, remove the nozzle from the tyre valve and disconnect the quick coupler from the compressed air hose.
- Use only with compressed air. Do not exceed the maximum gauge range of 15 bar / 220 psi.
- Store the tool in a dry place and protect the gauge, hose and seals from dirt, impact and damage.
