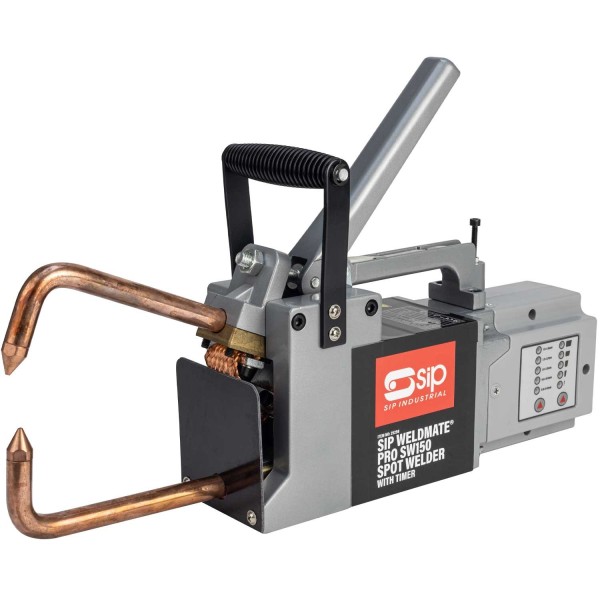

SIP WELDMATE® PRO SW150 Spot Welder w/ Timer (25298S)

The SIP WELDMATE® PRO SW150 Spot Welder with Timer is a portable resistance welder designed for sheet metal applications in automotive environments and light fabrication workshops.

Ideal for vehicle body panel repairs and light sheet metal tasks, this easy-to-use welder uses copper/chrome alloy electrodes to achieve a maximum welding thickness of 1.5mm + 1.5mm and features a microprocessor-controlled timer function for precise and consistent welds.

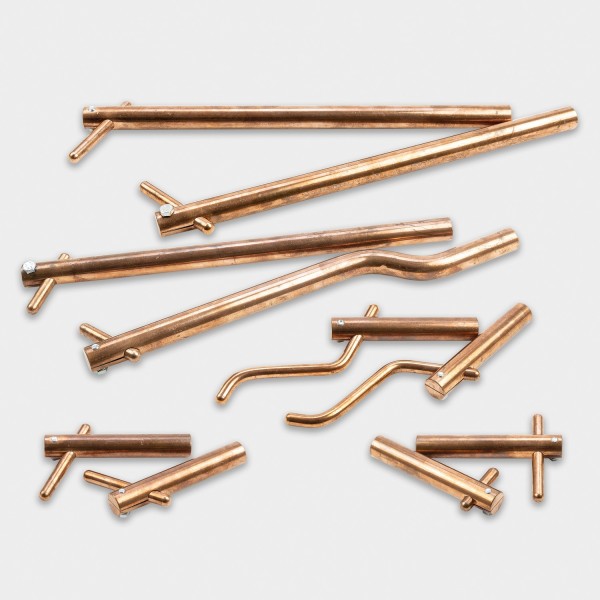

For added flexibility the welder operates from a 13A supply. It is also available with a range of additional electrode arms sold individually or as a bodywork kit for greater application versatility.

KEY FEATURES:

• Maximum welding thickness of 1.5mm + 1.5mm
• Timer function of 120~900ms for consistent welds
• Fitted with heavy-duty weld switch for reliable operation
• Operates from a 13A supply added for ease-of-use
• Heavy-duty carry handle for work area movement
• Supplied with replacement 16mm straight electrodes

Technical Information:

• ITEM NO. 25298
• Input Supply: 230v (13A)
• Max. Welding Thickness: 1.5mm + 1.5mm
• Spot Duration: 120-900ms
• Welds Per Minute: 3 welds per minute
• Max. Electrode Force: 460N
• Net Weight: 12.6kg
• Gross Weight: 13.5kg
• Product Dimensions: 244(H) x 94(W) x 475mm(D)
• Packaged Dimensions: 230(H) x 140(W) x 540mm(D)
