Product Code: 25113S

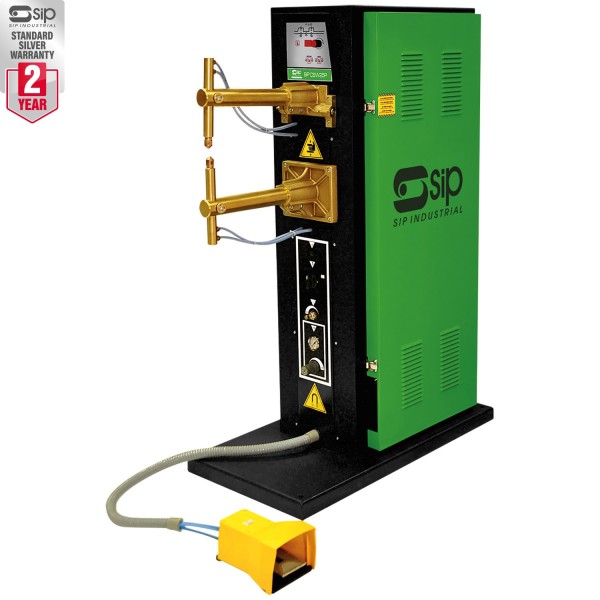

The SIP CSW25P Pneumatic Column Spot Welder offers easy spot welding in a variety of demanding applications, utilising single or double spot welding modes for use on oxidised or coated steels, and a 2-stage pneumatic foot pedal for precise positioning.
Browse SIP WELDING for more high-quality welding machines and accessories.
| ITEM NO. | 25113 |
| Input Supply: | 400v (50A) 1-PHASE |
| Max. Welding Power: | 50kVA |
| Duty Cycle: | 25kVA @ 50% |
| Mild Steel Capacity: | 5+5mm (flat) / 20+20mm (bar) |
| Stainless Steel Capacity: | 3+3mm (flat) / 12+12mm (bar) |
| No-Load Voltage: | 1.4v |
| Short Circuit Current: | 13.8KA |
| Max. Air Pressure: | 70psi (4.8bar) |
| Water Flow Rate: | 4ltr/min |
| Max. Electrode Force: | 204kgF @ 340mm 140kgF @ 450mm |
| Distance Between Arms: | 200mm (standard) 320mm (optional) |
| Arm Length: | 340mm to 480mm (standard) 200mm to 1000mm (optional) |
| Electrode Throat Size: | 100mm |
| Electrode Holder Diameter: | Ø 25mm |
| Electrode Diameter: | Ø 20mm |
| Arm Diameter: | Ø 45mm |
| Noise Level: | 70dB(A) |
| Net Weight: | |
| Gross Weight: | 178.00kg |
| Product Dimensions: | |
| Packaged Dimensions: | 1450(H) x 520(W) x 1070mm(D) |
