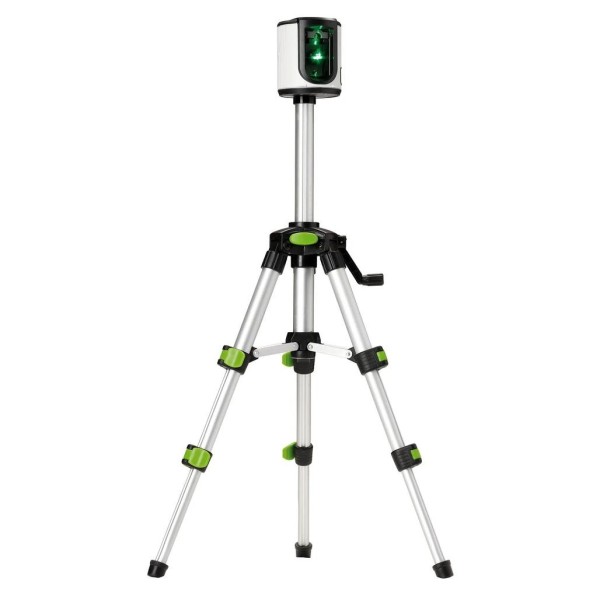

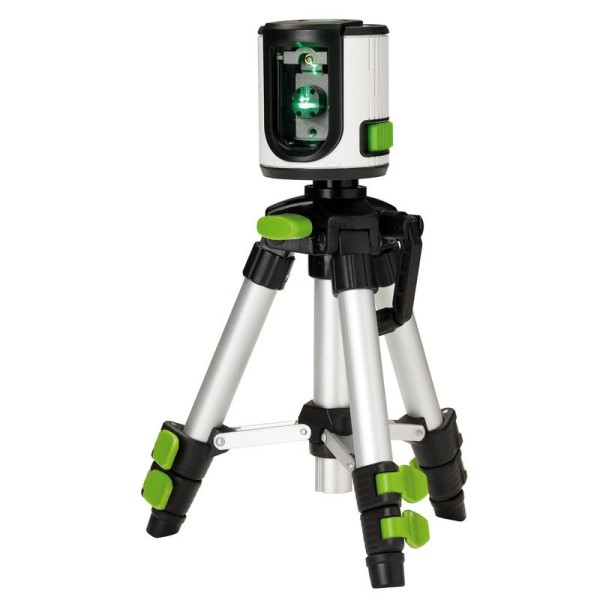

Laserliner 081.082E EasyCross-Laser Work Set (38173)

This automatic cross-line laser-line laser with compact tripod is suitable for precise levelling of horizontal, vertical and inclined surfaces. Ideally suited for aligning tiles, wallpaper, pictures and particularly for applications close to floor level such as fitting sockets. The device device produces a highly visible, bright, green laser cross. Optical signals warn the user when the unit is outside its self-levelling range. The pendulum lock ensures safe transportation.

• Accurate horizontal and vertical alignment of objects
• Easy alignment of slopes
• Bright laser cross with green laser technology
• Time-saving automatic alignment
• Light and robust compact 45 cm tripod, ideal for ground level applications
• Device issues warning when leaving the levelling range
• Pendulum restraint for safe transport
• Housing with recycled content

Specifications

• Battery operation Yes
• Self-Levelling Range ± 3°
• Accuracy ±0.5 mm/m
• Levelling Automatic
• Visibility (Typical) 40m
• Laser Wavelength 515nm
• Laser Class 2 / < 1 mW
• Power Supply 3 x 1.5V LR03 (AAA)
• Operating Time approx. 5 hours
• Operating Conditions 0°C … 50°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level
• Storage Conditions -10°C … 70°C, max. humidity 80% rH
• Dimensions (W x H x D) 62mm x 72mm x 61mm
• Weight 202g (incl. batteries/without accessories)
• Manual slope function Yes

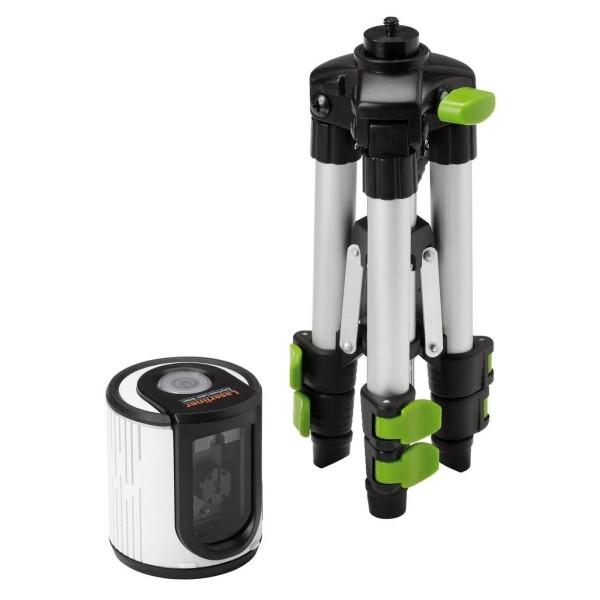

Contents

• 1 x EasyCross-Laser Green
• 1 x Compact Tripod, 45cm
• 1 x Batteries
