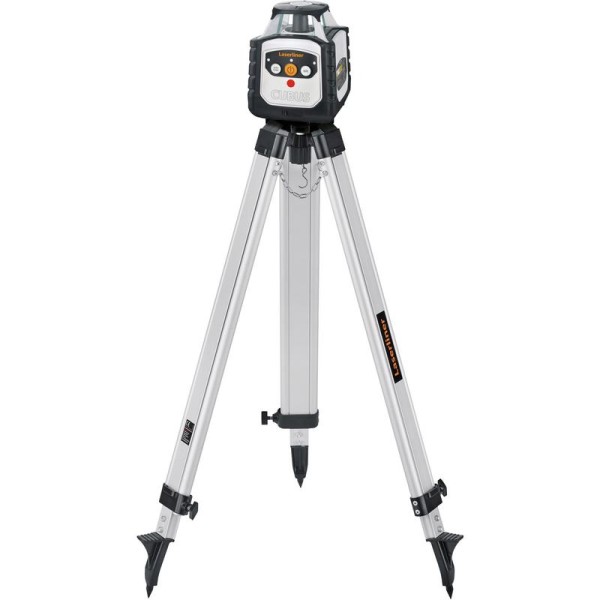

Laserliner 052.325A Cubus 110 S Set Fully Automatic Rotating Laser, 150cm (32173)

Product Description:

The sturdy, fully automatic rotary laser is perfect for precise alignment of horizontals. Furthermore, the device can be used for the levelling of verticals and slopes. Aligning partitions is easy thanks to an additional reference beam. The laser receiver can be easily attached to measuring staffs and allows a height reference to be marked. This has the advantage that the laser can be reset to the specified height at any time. The remote control for operating all of the functions at a distance of up to 40 metres is particularly handy. In the event of external influences, the automatic shut down prevents measurement errors. The HighCapacityPack with lithium-ion technology can be used and charged at the same time which means users can work without interruption.

• Precise alignment of horizontals
• Supplied with batteries
• Time-saving fully automatic alignment by means of automatic sensor
• Manual alignment of slopes
• The 90° reference beam is provided to plumb and align partition walls
• Long operating life due to powerful HighCapacityPack with lithium-ion technology
• Extremely simple operation for practical use
• All functions can be controlled with the remote control up to a max. distance of 40 m
• Plug-on stand/wall bracket with 5/8“ thread for vertical use
• Reliable measurement through automatic power off with ADS tilt

Specifications:

• Horizontal/vertical/angle levelling Yes
• Anti-Drift-System (ADS) Yes
• Hand receiver mode Yes
• Scan mode Yes
• Spot mode Yes
• Manual slope function Yes
• Precision sensor levelling Yes
• Battery and mains operation Yes
• Tilt warning function Yes
• Self-Levelling Range ± 4°
• Accuracy ±0.15 mm/m
• Levelling Automatic horizontal / vertical levelling with electronic levels and motors
• Laser Wavelength 635 nm
• Laser Class 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
• Laser Reception Range 1 - 100 m
• Protection Class IP 66
• Power Supply Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh
• Operating Time approx. 20 hours
• Battery Recharging Time approx. 4 hours
• Dimensions (W x H x D) 130 mm x 160 mm x 145 mm
• Weight 1300g

Contents:

• 1 x Laserliner 052.325A Cubus 110 S Set Fully Automatic Rotating Laser, 150cm
• 1 x SensoLite 110
• 1 x Light-weight tripod 150 cm
• 1 x Tripod/wall bracket
• 1 x Universal mount
• 1 x Telescopic levelling staff LT 4 m
• 1 x Remote control
• 1 x HighCapacityPack (Li-Ion)
• 1 x Batteries
• 1 x Network/charging device incl. international adapter
• 1 x Carrying strap
• 1 x Carrying case
