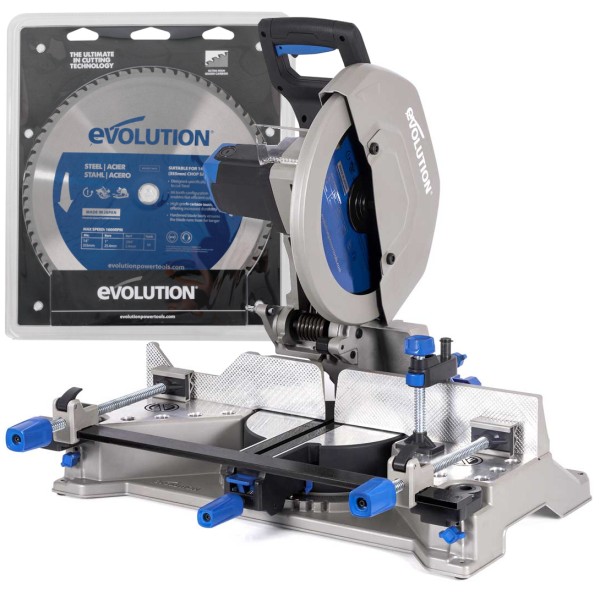

Evolution S355MCS Heavy-Duty Metal Cutting Mitre Chop Saw 2200W 240v

The S355MCS Metal Cutting Chop Mitre Saw from Evolution is built for metalwork professionals and it's the first heavy duty 355mm cold cut Chop Saw that allows you to produce precision mitre cuts without having to reposition the workpiece.

Designed to tackle heavy cuts in oversized metal pieces the S355MCS Chop Mitre Saw features a precision adjustable mitre table, 3-position saw head and our unique, height-adjustable double front clamp rail assembly. It delivers precise and quick angle adjustment for easy set-up and a powerful clamping mechanism to ensure quality, repeatable cuts every time.

With a powerful 2,200W motor, easy ambidextrous controls, and a Bench Dog compatible base plate with a tough knurled back fence the S355MCS Mitering Chop Saw is easy to rely on for your toughest jobs. Faster than a bench band saw and much cleaner than abrasive disc or plasma cutting the S355MCS delivers, quick, accurate, angled cuts that need no rework or clean-up before final assembly.

If your fabrication work relies on your ability to make fast, repeatable, accurate, clean & cost-effective cuts through a wide variety of large diameter metal workpieces then the S355MCS Mitre Chop Saw should be your next purchase.

Features

• Heavy Duty Metal Cutting Chop Mitre Saw
• +/- 46˚ Mitre Range Adjustable Saw Head
• Precision Laser Etched Mitre Guide
• 355mm 90T Tungsten tipped Stainless Steel Cutting Blade
• Burr Free - Ready To Weld Cuts
• Fine Adjust & Pre-set Mitre Positions
• Height Adjustable Front Clamp Rail
• Sliding QR Front Clamps x2
• 4-Position QR Top Clamp
• Workpiece Support V-Blocks
• 3-Position Cutting Head for optimum cuts
• Bench Dog Compatible Base
• Ambidextrous Trigger for left or right handed operation
• Knurled Back fence for secure clamping
• Chip Deflector
• Heavy Duty CNC machined cast alloy base

Specification

• Motor (240V 50Hz): 2200W
• Motor (110V 50Hz): 1600W
• Speed No Load: 1550 min-1
• Max. Mitre Left & Right +/- 46°
• Cable Length: 3m
• Blade Dia.: 355mm
• No. of Teeth: 66
• Bore: 25.4mm / 1 In.
• Kerf: 2.4mm
• Mild Steel Plate (Max Thickness): 12mm
• Stainless Steel Plate (Max Thickness): 5mm
• Square Tube at 90° (Mild Steel): 120 x 120mm
• Square Tube at 45° (Mild Steel): 100 x100mm
• Rectangle Tube at 90° (Mild Steel): 100x 165mm
• Rectangle Tube at 45° (Mild Steel): 100 x 110mm
• Round Tube at 90° (Mild Steel): Ø 120mm
• Round Tube at 45° (Mild Steel): Ø 110mm
• Minimum Cut Off Piece Length: 8 mm
• Packaging Dimensions: 450 x 760 x 584mm
• Product Dimensions: 410 x 530 x 310mm
• Product Weight: 35 kg
• Packaged Weight: 40 kg

Items Supplied

• Instruction Manual
• 66 Tooth Mild Steel TCT Blade
• Double Ended 5mm/8mm Hex Key
• Cutting Head Assembly
• Base Table Assembly
• Rear Stabilising Leg
• QR Top Clamp
• Rail Bracket & Fixings
• V-Blocks x3
• QR Front Clamps x 2

• Evolution RAGE® Diamond Blade, Segmented Rim 355 X 25.4mm (EVL355DIAM)
• Evolution Mild Steel Cutting Chop Saw Blade 355 X 25.4mm X 66T (EVLRP3552466)
• Evolution Stainless Steel Cutting Chop Saw Blade 355 X 25.4mm X 90T (EVLRP3552590)
• Evolution RAGE® Multi-Purpose Circular Saw Blade 355 X 25.4mm X 36T (EVL355MULTI)
• Evolution Aluminium Cutting Chop Saw Blade 355 X 25.4mm X 80T (EVLRP3552580)
