Evolution EVOMAG42 Magnetic Drill 1200W 240V

Industrial Quality - This incredible Magnetic Drill is deceptive in its capabilities; although small in size it is well-suited for heavy-duty industrial and fabrication work. The EVOMAG42 is versatile, accurate and portable with strong magnetic adhesion.

Features

• Ideal for site use - With so many buildings being built around a steel framework, a Magnetic Drill is an essential product and ideal for site use. It is also easy to carry (with the supplied case) and its light weight makes it manageable to position in both awkward and confined spaces.
• The impressive EVOMAG42 offers incredible value with the capability to use up to 1-5/8 inch (42mm) cutters and 1/2 inch (13mm) twist drills. The EVOMAG42 also features an integrated coolant system for magnetic drilling.
• Evolution also offers a large variety of tools to be used with the EVOMAG42. This offering includes a wide range of annular cutters, step drills and mini-cutters. Extend the life of your cutters and get more value by using Evolution Cutting Fluid.

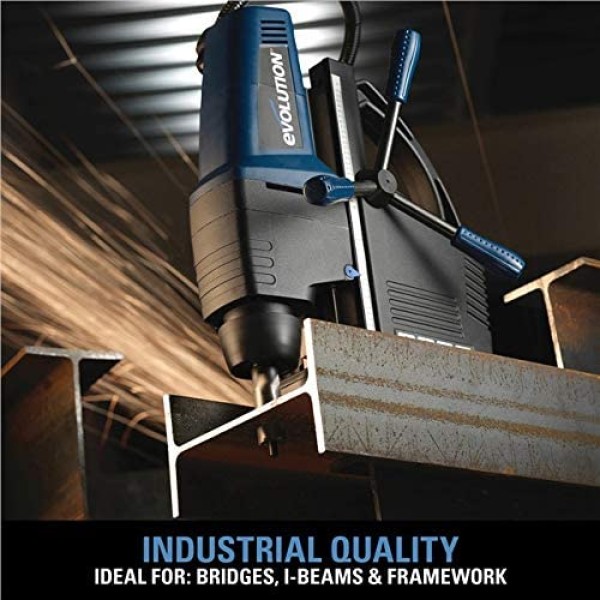

• Ideal For: Bridges, I-Beams & Framework
• Includes Carry Case

Machine Spec

• Motor (50Hz): 1200W
• Speed No Load: 450 rpm-1
• Number of Speeds 1
• Insulation Class 1
• Cable Length: 2.6m
• Weight: 10.9kg

Cutter Capacities

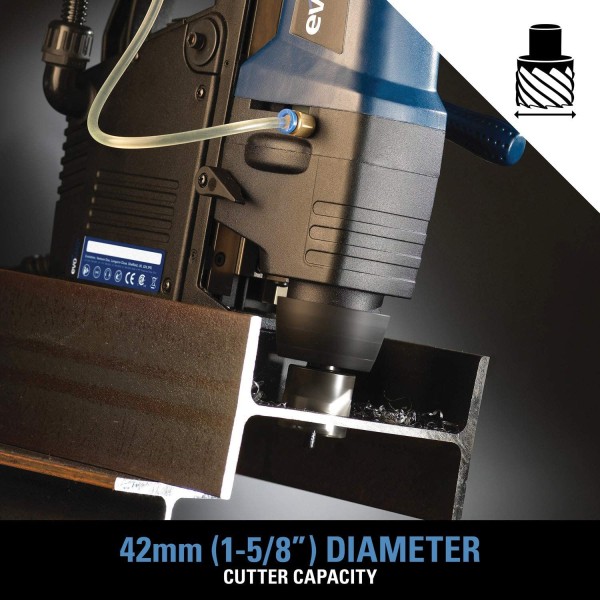

• Maximum Annular Cutting Capacity 42mm

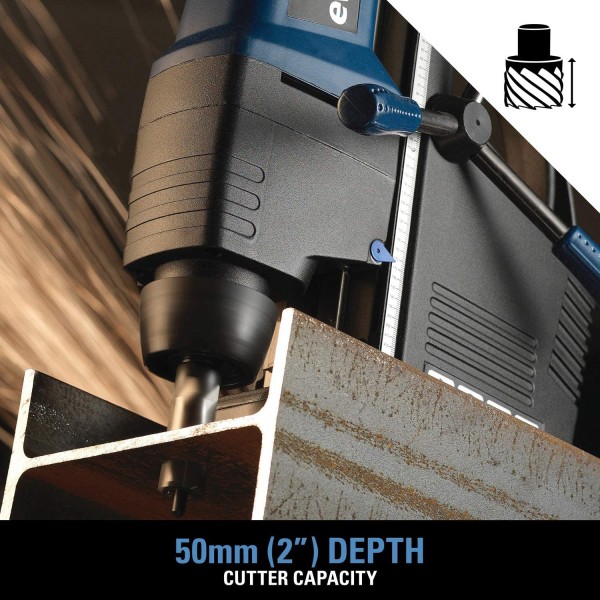

• Maximum Cutting Depth 50mm
• Cutter Shank 19mm
• Standard Twist Drill Capacity 13mm
• Magnetic Adhesion 1300kg f
• Minimum Plate Thickness 10mm

Dimensions

• Magnet Dimension 40mm x 90mm x 180mm

• Maximum Machine Height 654mm
• Minimum Machine Height 420mm
• Machine Width 222mm

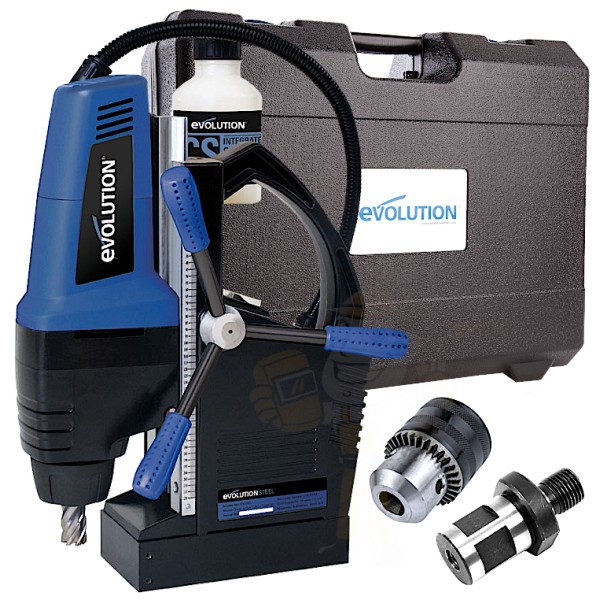

Items Included

• Instruction Manual
• Coolant Tank System
• Handles x3
• Safety Strap
• Safety Guard
• Safety Guard Fixing Screws x2
• Hex Key 2mm
• Hex Key 3mm
• Hex Key 4mm
• Hex Key 5mm
• Chuck adaptor (allows HSS twist drills to be used)

• Carry Case
• 2 years warranty

Noise Data

• Sound Pressure Level LPA: 89.40dB(A) K:3dB(A)
• Sound Power Level LWA: 102.4dB(A) K=3 dB(A)

Vibration Data

• Hand Arm Vibration 0.629m/s2 K= 1.5m/s2

All Evolution Power Tools from Everyday Welding Supplies are supplied with full industrial warranty!
