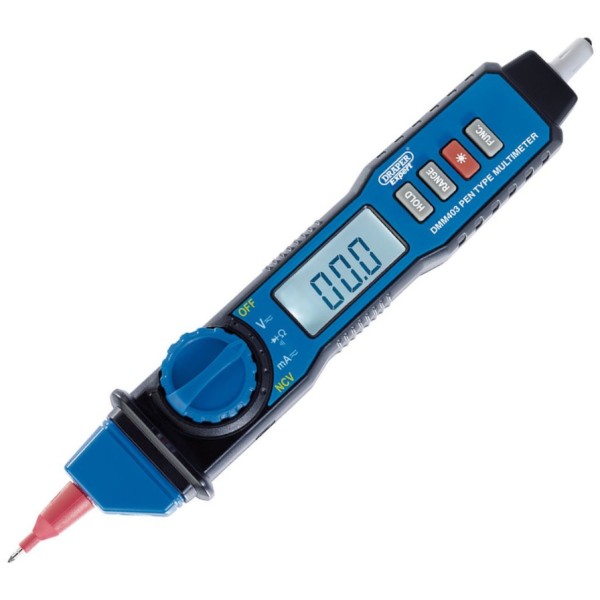

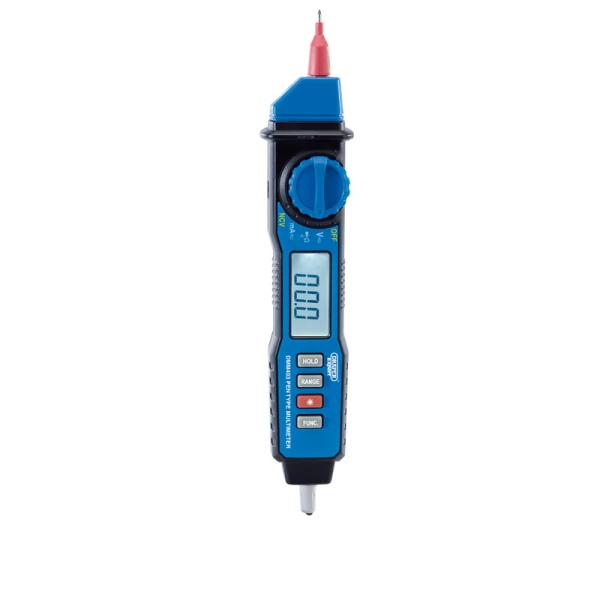

Draper Expert Manual & Auto-Ranging Pen Type Digital Multimeter (41835)

Auto and manual ranging capable of voltage, current, resistance, diode, continuity and non contact voltage testing. Fitted with a backlit LCD, continuity buzzer features and an inspection torch. Supplied with test lead and a carry case.

• Auto and manual ranging capable of voltage, current, resistance, diode, continuity and non contact voltage testing
• Fitted with a backlit LCD, continuity buzzer features and an inspection torch
• Supplied with test lead and a carry case

Specifications

• AC Amps 20mA/200mA
• AC Current 20mA/200mA
• AC Voltage 2V/20V/200V/600V
• Automatic Power Off Yes
• Battery 1 x 6F22 9V (not supplied)
• Capacitance N/A
• DC Amps 20mA/200mA
• DC Current 20mA/200mA
• DC Voltage 200mV/2V/20V/200V/600V
• Diode on/off Test Yes
• Dimensions 272mm x 132mm x 60mm
• Duty Ratio N/A
• Dwell N/A
• Frequency N/A
• Resistance (Ohms) 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
• Symbol Unit Data Hold Yes
• TACH N/A
• Temperature Range N/A
• Weight 306g (approx.)
