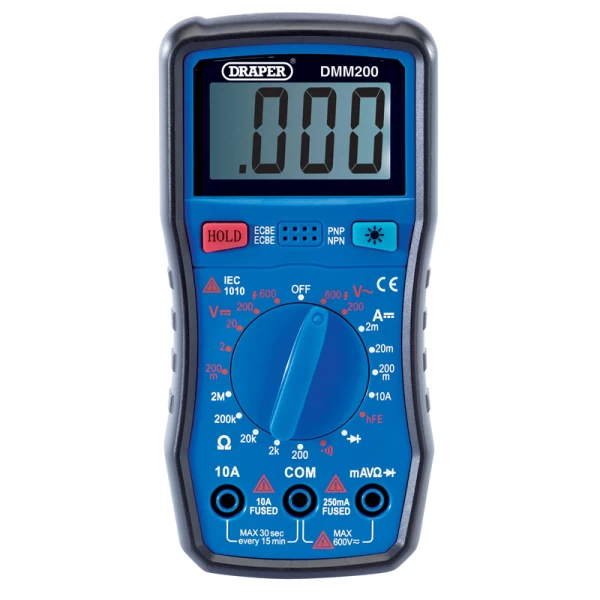

Draper 200 Series Manual Ranging Digital Multimeter, 600V, AC/DC (41817)

Manual ranging capable of voltage, current, hEF and resistance testing. Fitted with a backlit LCD screen, auto power off, continuity buzzer and data hold features. Supplied with test leads.

• Manual ranging capable of voltage, current, hEF and resistance testing
• Fitted with a backlit LCD screen, auto power off, continuity buzzer and data hold features
• Supplied with test leads

Specifications

• AC Current N/A
• AC Voltage 200V/600V
• Automatic Power Off Yes
• Capacitance N/A
• DC Amps 2mA/20mA/200mA/10A
• DC Current 2mA/20mA/200mA/10A
• DC Voltage 200mV/2V/20V/200V/600V
• Diode on/off Test Yes
• Dimensions 150mm x 74mm x 43mm
• Duty Ratio Yes
• Dwell N/A
• Frequency N/A
• Resistance (Ohms) 200Ω/2kΩ/20kΩ/200kΩ/2MΩ
• Symbol Unit Data Hold Yes
• TACH N/A
• Temperature Range -20°C - 1000°C
• Weight 233g (approx.)
• Battery Type 1 x PP3 9V (not supplied)
