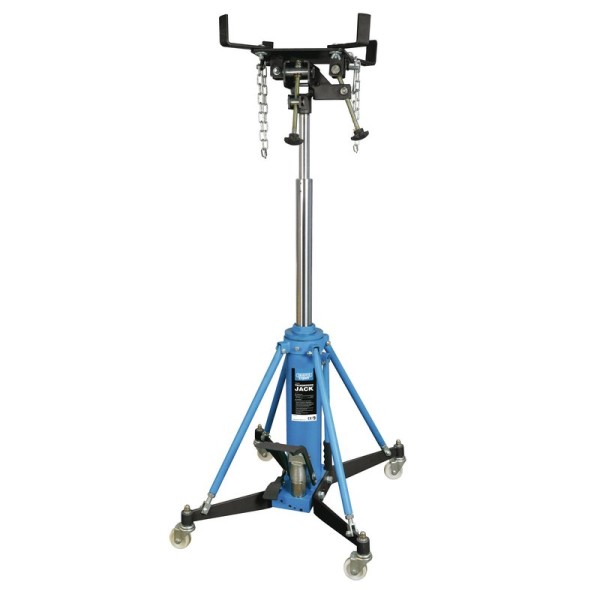

Draper Expert Vertical Transmission Jack, 1000kg (19788)

Hydraulic vertical transmission jack with a telescopic twin stage ram. Fitted with a lowering control system (LCS) which safely lowers the load precisely into position and the safety overload valve provides added user protection. Operated via the twin position and 'Quick Lift' foot pedal for hands-free operation and attached with chain straps for added support and adjustable supporting struts for increased stability. The nylon wheels provide a quieter and smoother operation whilst preventing damage to workshop floors and the side-mounted handle aids positioning and increases manoeuvrability. The fully adjustable saddle can accept a wide variety of gearboxes/components and the forward, backward and side-to-side tilt features aids the user further.

• Fitted with a lowering control system (LCS) which safely lowers the load into position
• Twin position ‘Quick Lift’ foot pedal facility
• Nylon wheels for quieter and smoother operation without preventing damage to workshop floors
• Telescopic twin stage ram
• Low entry height
• Safety overload valve
• Twin foot pedals for hands free operation
• Attached with chain straps and adjustable supporting struts
• Extra-large castors and side mounted handle
• Manufactured to EN1494 Specification

Specifications

• Capacity 1,000kg
• Minimum height 940mm
• Maximum height stage 2 1,030mm
• Maximum height stage 1 1,430mm
• Castor Diameter 75mm
• Saddle type Adjustable
• Weight 67kg
• Chain length 1,495mm
