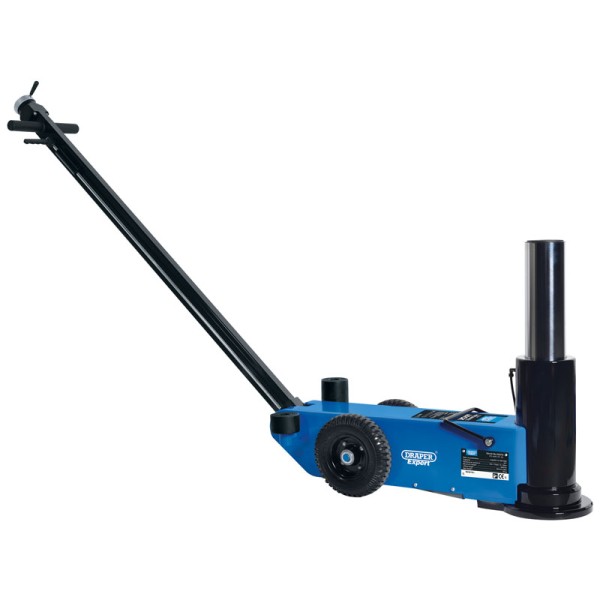

Draper EXPERT Pneumatic High Lift Jack (30 Tonne)

FEATURES:

Manufactured to EN1494 Specification

Expert Quality, portable and compact high lift pneumatic jack, capable of lifting 30 Tonnes. The ergonomic handle is fixed with a “Slow Down” valve and a “Self-Return” switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 100mm height lift extensions and a 1/4" BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.

VAT Rated At: 20.00%

Barcode: 5010559020782

Weight 90.900kgs

SPECIFICATION:

• Capacity 30 Tonne (30,000kg)
• Minimum height 360mm
• Maximum height 772mm (inc extensions)
• Lift height 267mm
• Operating air pressure 9 – 12BAR (130 – 174psi)
• Air consumption 11.5cfm
• Air inlet 1/4" BSP
• Wheel diameter 200mm
• Wheel width 55.5mm
• Saddle diameter 83.6mm
• Extensions 45mm and 100mm
• Handle length 1380mm
• Chassis size 840 x 215 x 360mm
• Nett weight 87kg
