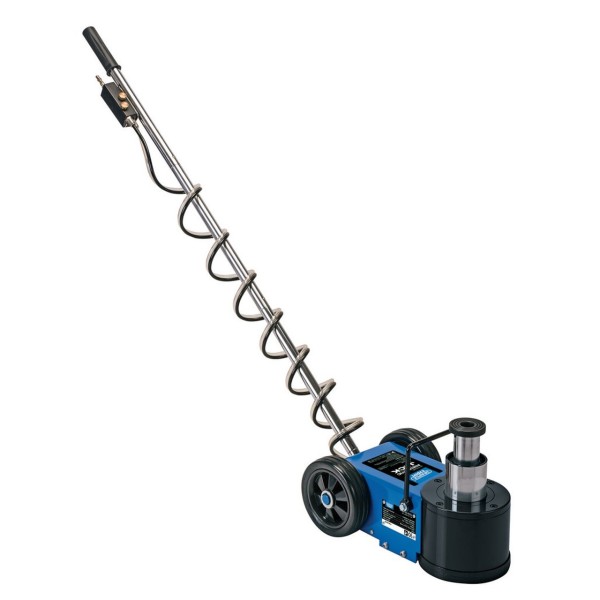

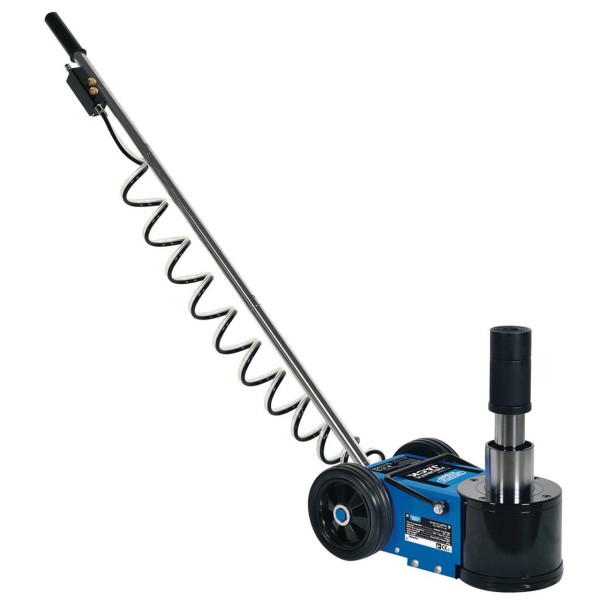

Draper Expert Pneumatic Jack, 30 Tonne (03724)

Portable and compact twin stage pneumatic jack, capable of lifting 30 Tonnes. The ergonomic handle is fixed with a "Slow Down" valve and a "Self-Return" switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.

• Twin stage pneumatic jack
• Ergonomic handle grips
• Slow Down' valve
• Self Return' switch
• Twin PP and rubber wheels
• Industrial seals

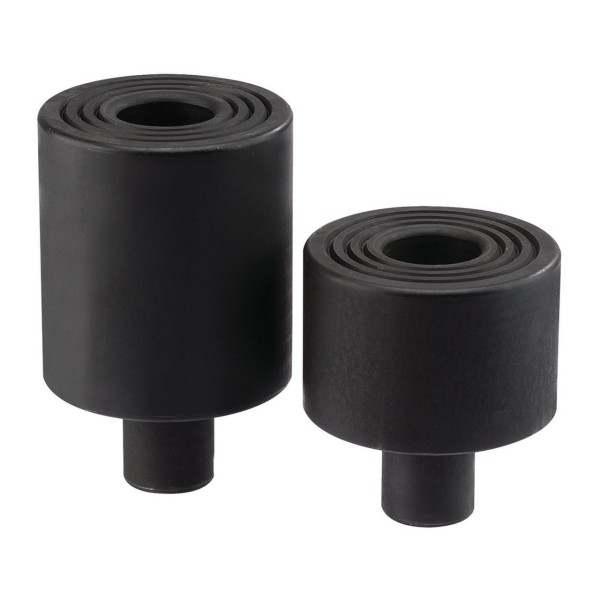

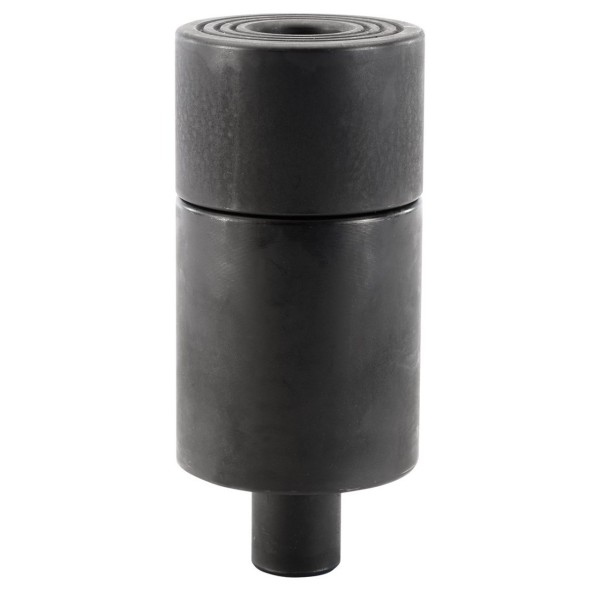

• Supplied with 1/4" BSP inlet and 45mm/75mm extensions
• Manufactured, tested and certified to the current EN1494 standard
• Manufactured to EN1494 Specification

Specifications

• Air Consumption 10.5cfm
• Air Inlet 1/4” BSP
• Capacity 30 Tonne (30,000kg)15 Tonne (15,000kg)
• Chassis Dimensions 430 x 176 x 150mm
• Handle Length 1200mm
• Lifting Height Position 1 73mm
• Lifting Height Position 2 66mm
• Max Height Stage 1 343mm (inc extensions)
• Max Height Stage 2 409mm (inc extensions)
• Min Height 150mm
• Nett Weight 30kg
• Operating Air Pressure 9 – 12BAR (130 – 174psi)
• Saddle Diameter 70mm
• Wheel Diameter 165mm
• Wheel Width 42.5mm
