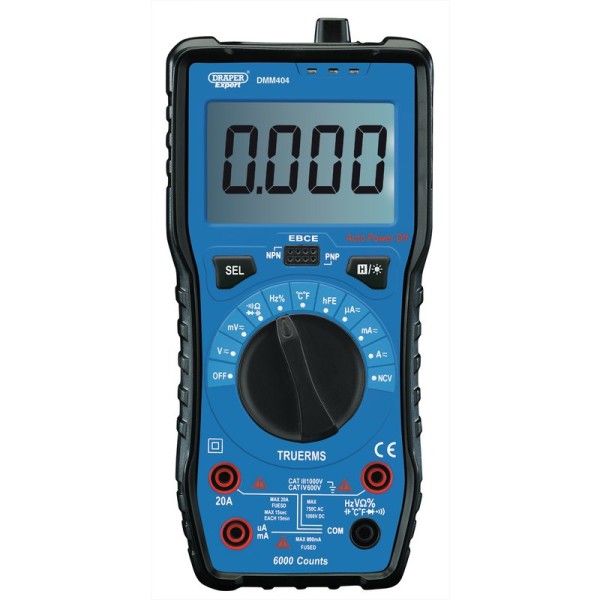

Draper Expert Auto & Manual Ranging Digital Multimeter (92433)

Auto - ranging CAT IV multimeter. Equipped with a high - performance MCU processor for more accurate measurements. Capable of DC voltage, AC voltage sine RMS, DC current, AC current sine RMS, resistance, capacitance, frequency, duty ratio, diode on/off test, symbol unit data hold and automatic power - off functions. Fitted with a large LCD backlit display screen, an NCV (Non - contact voltage) sensor and inspection light. An essential tool for electrical and industrial applications, especially useful for electricians, maintenance engineers, construction workers and electric vehicle technicians working on modern hybrid and electric vehicles. Supplied with a carry case.

• Large LCD backlit display screen
• Supplied with probes, battery, bump cover and storage case
• Auto-ranging CAT IV multimeter
• High-performance MCU processor
• Capable of DC voltage, AC voltage sine RMS, DC current, AC current sine RMS, resistance, capacitance, frequency, duty ratio, diode on/off test, symbol unit data hold and automatic power-off functions
• NCV (Non-contact voltage) sensor
• Inspection light
• An essential tool for electrical and industrial applications, especially useful for electricians, maintenance engineers, construction workers and electric vehicle technicians working on modern hybrid and electric vehicles
• Supplied with a carry case

Specifications

• AC Current 60uA/600uA/6000uA/60mA/600mA/20A
• AC Voltage 600mV/6V/60V/600V/750V
• Automatic Power Off Yes
• Capacitance 9.999nF/99.99nF/999.9nF/9.999µF/99.99µF/999.9µF/9.999mF/99.99mF
• DC Current 60uA/600uA/6000uA/60mA/600mA/20A
• DC Voltage 600mV/6V/60V/600V/0.1V/1000V
• Diode on/off Test Yes
• Dimensions 190mm x 90mm x 50mm
• Duty Ratio Yes
• Dwell N/A
• Frequency 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz
• Resistance (Ohms) 6000Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
• Symbol Unit Data Hold Yes
• TACH N/A
• Temperature Range -20°C - 1000°C/-4°F - 1832°F
• Weight 380g (approx.)
• Battery Type 1 x PP3 9V (not supplied)

Contents

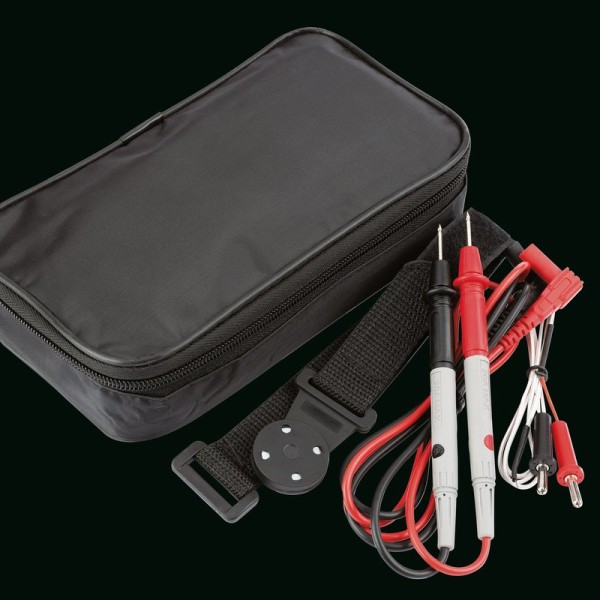

• 1 x Bump cover with probe storage
• 1 x Set of CAT IV 600V CAT III 1000V 20amp probes
• 1 x Magnetic hang strap
• 1 x Temp probe
• 1 x Storage case
