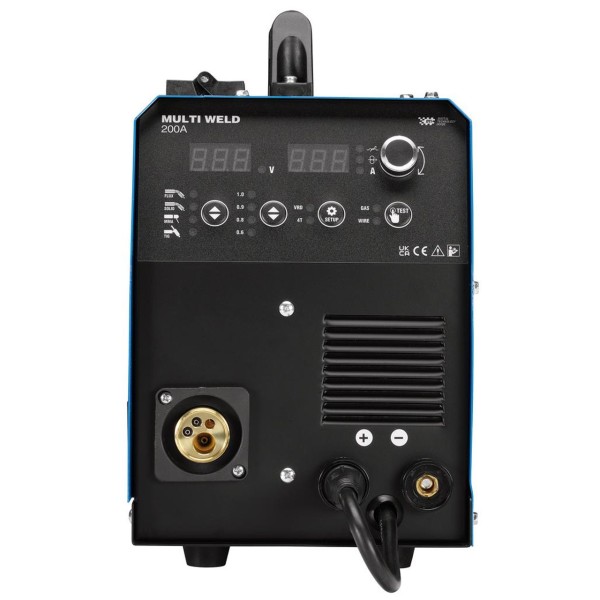

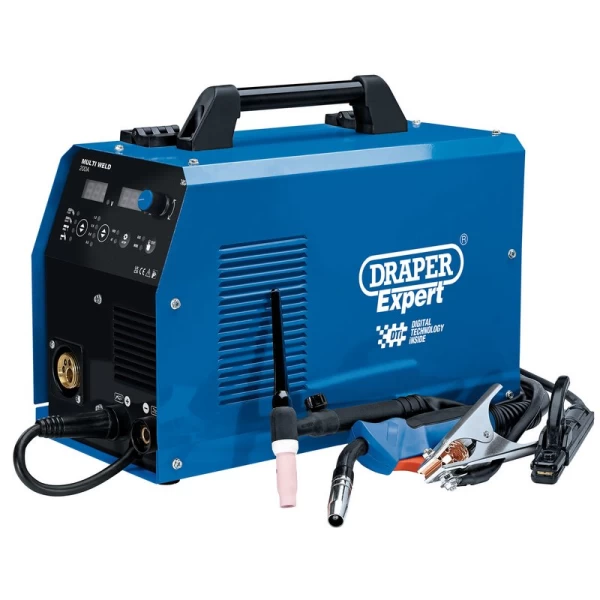

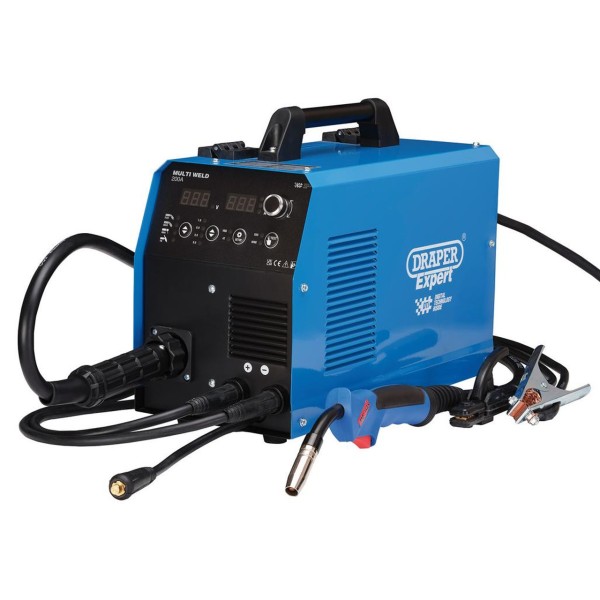

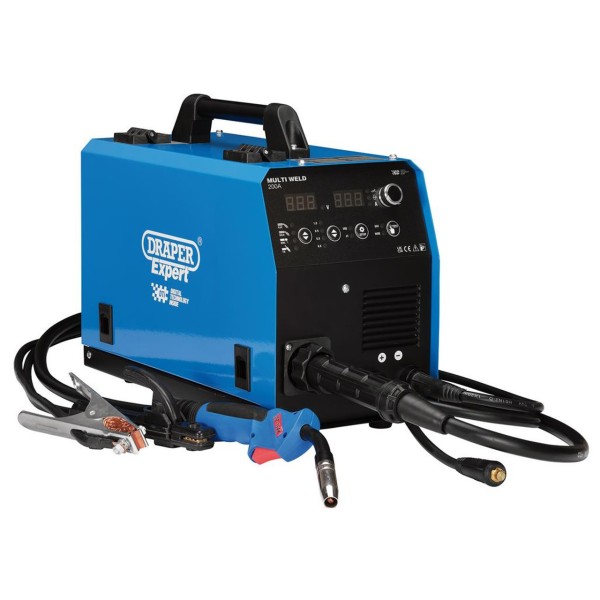

Draper Expert 3-In-1 Multi-Process Welder DTI, 200A (70043)

Highly versatile multi-function 3-in-1 welder (MIG/MMA/TIG) that can be used as a gas/gasless welder. Its compact design features powerful IGBT inverter technology to create a very efficient machine that is optimised for improved productivity and ease of use. Lightweight and portable design, with carry handle.

• IGBT Inverter technology
• MIG/MMA/TIG
• MIG torch, TIG torch and electrode holder included
• Synergic wire feed
• Digital display

Specifications

• Amperage range 30-200A (MIG), 20-200A (MMA), 20-200A (TIG)
• Power supply 230V
• Plug Fitted NO (32A PLUG REQUIRED)
• MMA Electrode size 1.6-5.0mm
• MIG Wire size 0.6-1.2mm
• Flux core wire 0.6-1.2mm
• Duty cycle 60% @200A / 100% @160A
• Dimensions 420 x 205 x 300mm
• Weight (net) 13.7kg
• IGBT Tech YES
• Euro Torch Connector/Dinse Type Coupling 10/25
• Includes MIG & TIG Torches & Electrode Holder YES
• IGBT Inverter Technology YES
• Anti-Spatter Feature YES
• DTi YES
• Digital Display YES

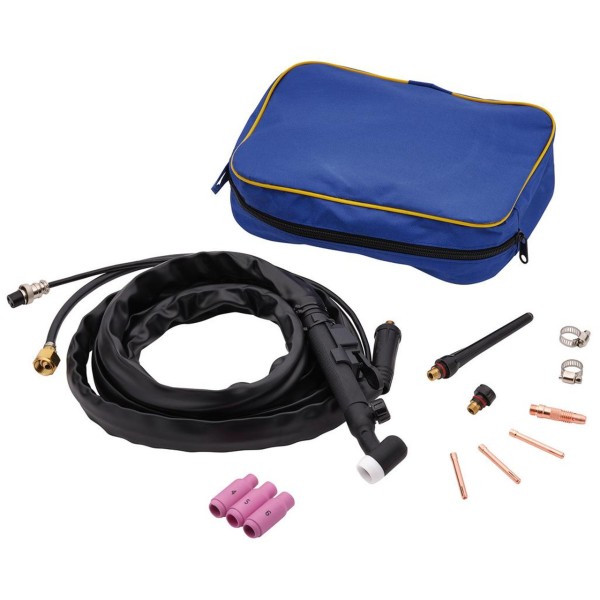

Contents

• 1 x TIG torch
• 1 x Cable, 3m
• 1 x Electrode holder, 200A
• 1 x Earth clamp, 300A
• 1 x Contact tips, 0.8mm
• 1 x Contact tips, 1.0mm
• 1 x AK15 Euro MIG torch
• 1 x Cable, 3m
• 1 x Gas hose, 2m
• 1 x Chipping hammer/wire brush
• 1 x Face mask
