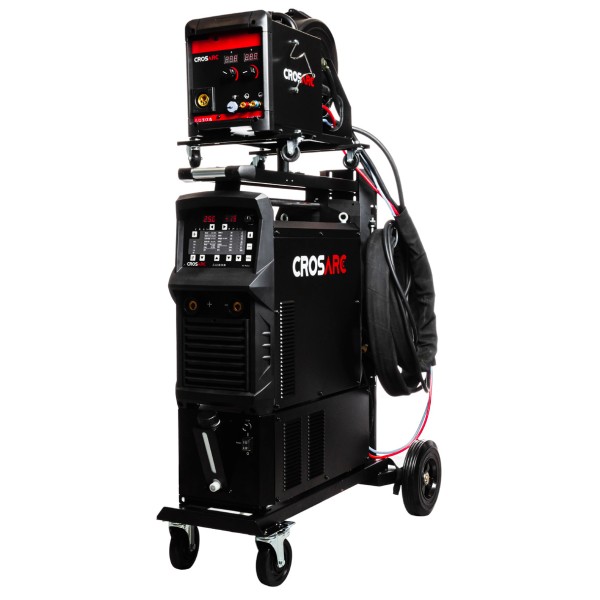

Cros Arc PULSE MIG MULTI PROCESS X5 Welder With MIG Torch (500A) (3 PHASE)

Features

• Latest IGBT Multi Process Inverter Power Source

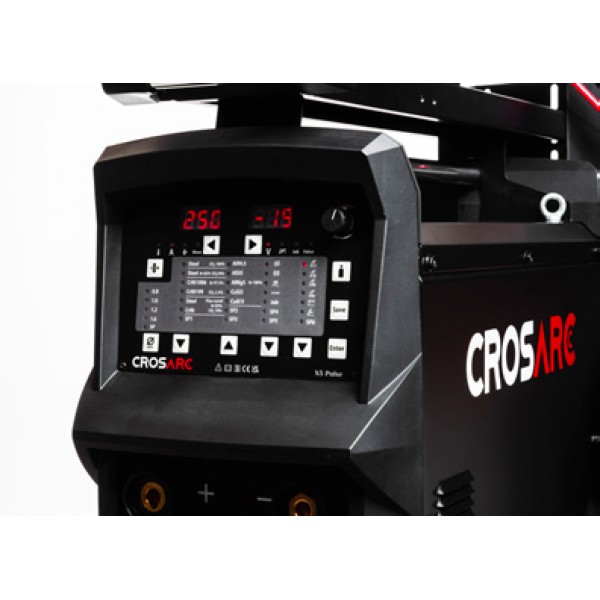

• Digital Volt / Amp Display

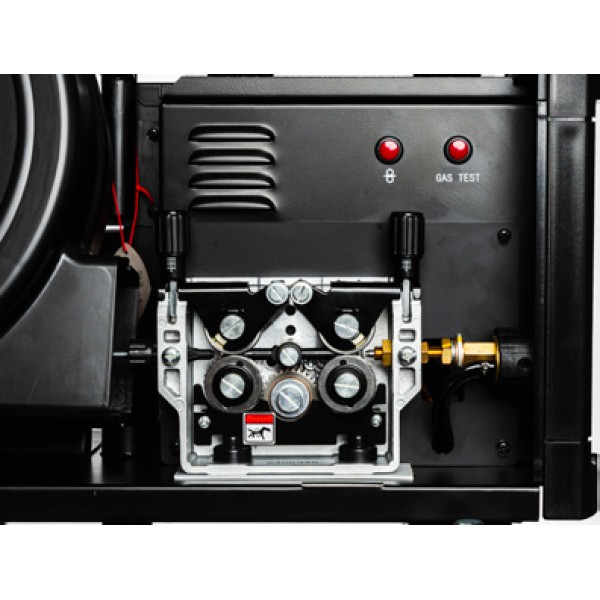

• 4 Roll Wire Feed Unit
• Suitable for 0.6, 0.8, 1.0, 1.2 & 1.6mm Wire
• Fe, AI, Stainless Steel & Flux Cored Wires
• Trolley Mounted
• Easy Set Up & Operation

Functions

• MIG/MAG
• MMA
• MIG PULSE
• TIG DC LIFT
• HD MIG/MAG
• Synergic or Manual Mode
• Single/Double Pulse Settings
• Burn Back Adjustment
• Wire Inching
• 2T/4T
• Gas Purge Function
• Variable Inductance
• Job Save Function

Specifications

• Input Voltage 3P-400 (+ - 15%) 50/60Hz
• Input Current 24 (A)
• Current Range MIG 30-500 (A)
• Current Range TIG 20-500 (A)
• Current Range MMA 20-500 (A)
• Duty Cycle @ 40°C 500A @ 60%
• Wire Speed (m/min) 0-24
• Arc Adustment -9 Soft to +9 Hard (default 0)
• Efficiency (%) 85
• Power Factor @ 100% 0.90
• Protection / Insulation Class IP23/F
• Cooling Fan
• Dimensions (mm) 685 x 300 x 560
• Weight (Kg) 53
• Conforms to EN IEC 60974-10:2021 EN IEC 60974-1:2022
• Approvals CE UKCA

Package Includes

• X5 Pulse Inverter Power Source
• M5W-4 Mtr MIG Welding Torch
• Earth Return Lead & Clamp
• Gas Hose
• Water Cooler
