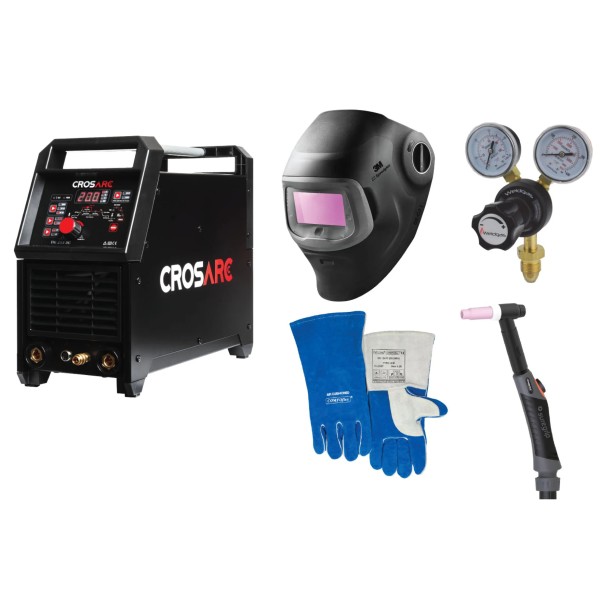

Cros Arc TIG 253 DC Welder Bundle with Helmet, Gloves & Regulator (250A) (3 PHASE)

A portable TIG DC and MMA welding package built around the CrosArc TIG 253 DC inverter power source. Includes a Parker TIG torch, 3M Speedglas welding helmet, Weldas gauntlets and Weldgas regulator, plus the leads, gas hose and foot pedal listed below.

What’s included

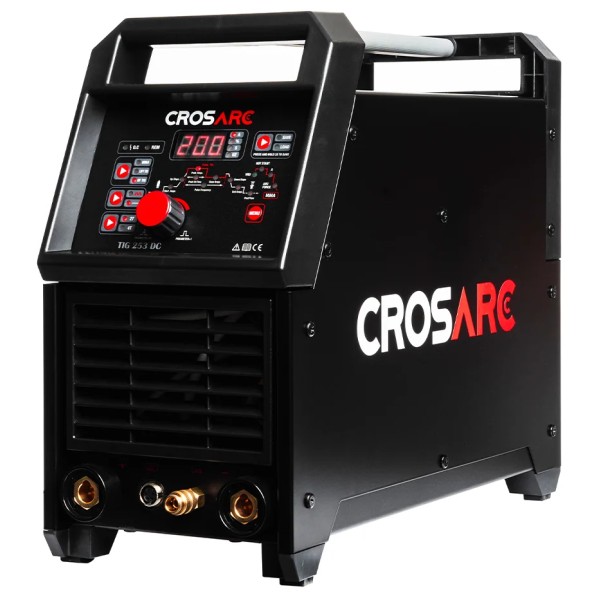

• CrosArc TIG 253 DC inverter power source
• Parker DGT26FX-12 TIG welding torch
• 3M Speedglas G5-03 E welding helmet
• Weldas COMFOFLEX blue gauntlets
• Weldgas single-stage, two-gauge Argon/CO₂ regulator

Also included

• Earth return lead and clamp
• Gas hose
• 3-metre MMA lead
• Foot pedal
• 3 Years Warranty

Machine specifications

• Input voltage Three-phase 400V (±15%), 50/60Hz
• Input current 16A
• TIG current range 5–250A
• TIG duty cycle at 40°C 250A at 30%
• Efficiency 85%
• Power factor at 100% 0.93
• Protection / insulation class IP21/F
• Cooling Fan
• Dimensions 625 × 285 × 555mm
• Weight 18kg
• EMC conformity BS EN IEC 60974-10:2021
• LVD conformity BS EN IEC 60974-1:2022 + A11:2022

Features

• IGBT multi-process inverter power source
• Digital volt/amp display
• VRD safety device
• Portable design
• Generator friendly
• Easy setup and operation

Functions

• MMA welding
• TIG DC with HF/Lift starting
• 2T/4T operation
• Pre-flow and post-flow gas adjustment
• Up-slope and down-slope adjustment
• Start and end current adjustment
• Hot Start
• Arc Force
• Job save function
