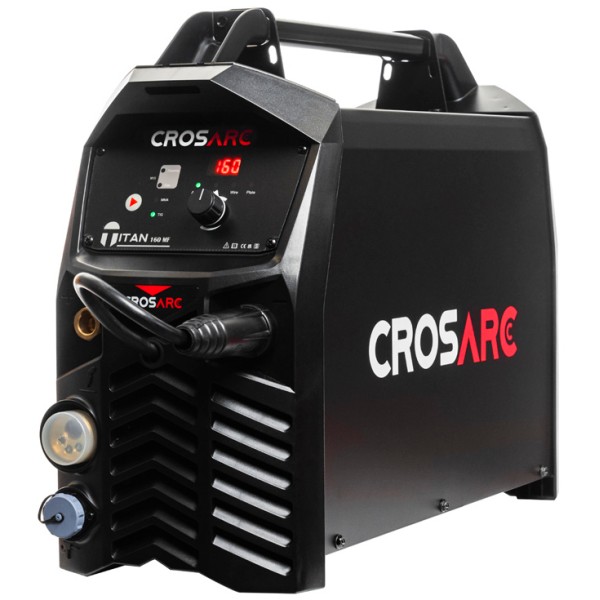

Cros Arc TITAN 160MF 'SynPro' Inverter MIG Welder with MIG Torch

The Cros Arc TITAN is ideal for repair & maintenance. This easy to use, intelligent and powerful unit, offers excellent welding properties and is easy to take along to the job at hand. Great if you are welding in the workshop or on the move!

Applications:

• Overhauls, repairs and production
• Households and agricultural holdings
• Car repairs
• Transport
• Welding training centres
• Steel accessories and furniture
• Making bonded seams

Features

• ✓ Compact, portable and easy to use
• ✓ Quick set pre-sets installed
• ✓ Ideal for light fabrication, maintenance and repairs
• ✓ Multifunction machine - MIG, DC lift TIG and MMA

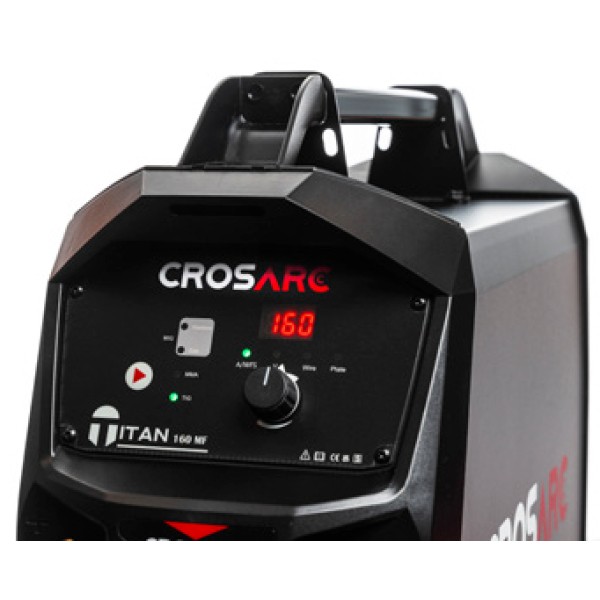

• ✓ Equipped with a digital meter displaying wire size, plate thickness, wire feed speed, AMPS and voltage
• ✓ Excellent welding performance across a broad range of applications
• ✓ Optional TIG Torch available! Sold Separately (See related products)

Specification

• Power supply (V-Ph) : 230VAC ± 15% SINGLE PHASE
• Duty cycle @ 40°C 30% @ 160A MIG; 30% @ 160A TIG; 30% @ 140A MMA
• Output current range (MIG) 20A/15V ~ 160A/22V
• Output current range (TIG) 10A/10.4V ~ 160A/22V
• Output current range (MMA) 10A/20.4V ~ 140A/25.6V
• Rated power MIG 5.9 kVA
• Power factor 0.7

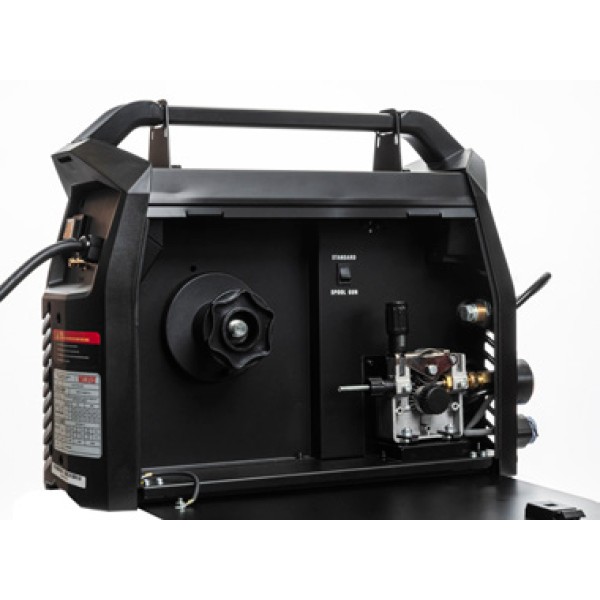

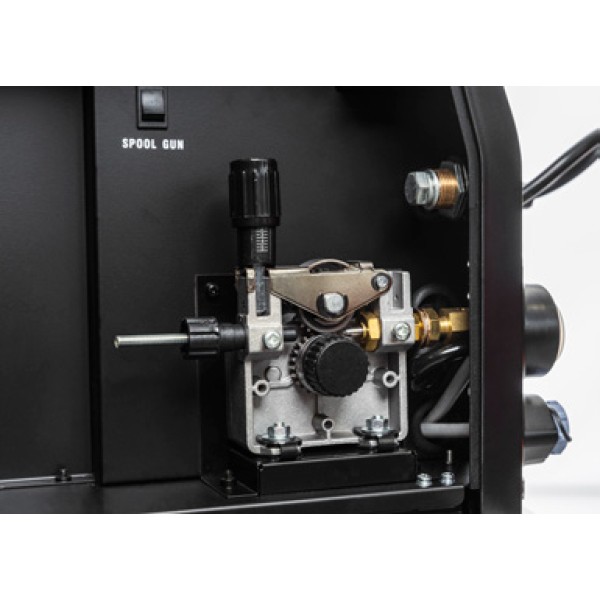

• Wire feed type 2 roll gear driven
• Protection class IP 21S
• Insulation class F
• Dimensions 490x195x380mm
• Weight 6.0Kg

Package Includes

• Titan160 MF Inverter Power Source
• 3 Metre Earth Lead
• 3 Metre 150 MIG Torch
• 3 Metre Gas Hose

Further Reading

The TitanMig160 Syn Pro welding machine offers many benefits of a professional welding machine in a compact, portable, easy to use and affordable self-contained single phase welding inverter. With Quick Set Plate Thickness Pre-Sets installed the guess work is now taken out of the set up, to allow excellent welding results. Plate thickness setting allows you to set up in a flash. There is no guessing the welding parameters. Use the QuickSet feature to set the machine to the correct plate thickness you are welding.

TheTitanMig160 SynPro welding machine is ideal for people who want to do light fabrication, maintenance and repairs or DIY around the home, workshop, worksite, or farm, without compromising on quality or safety. These welding inverters can perform MIG (Gas Shielded and Gasless) welding process, Lift TIG, MMA. The TitanMig 160Syn Pro welding machine is equipped with a standard 230V x 16Amp plug, and a digital meter which displays welding wire size, plate thickness, wire feed speed, amps and voltage. Additionally, the digital display also allows you to fine tune the Wire Feed Speed and Trim the Voltage off the factory Pre-Sets to suit individual welding jobs and circumstances.
