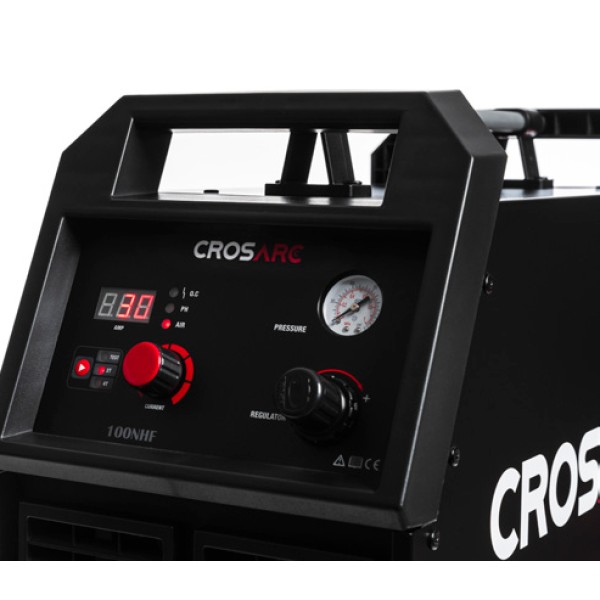

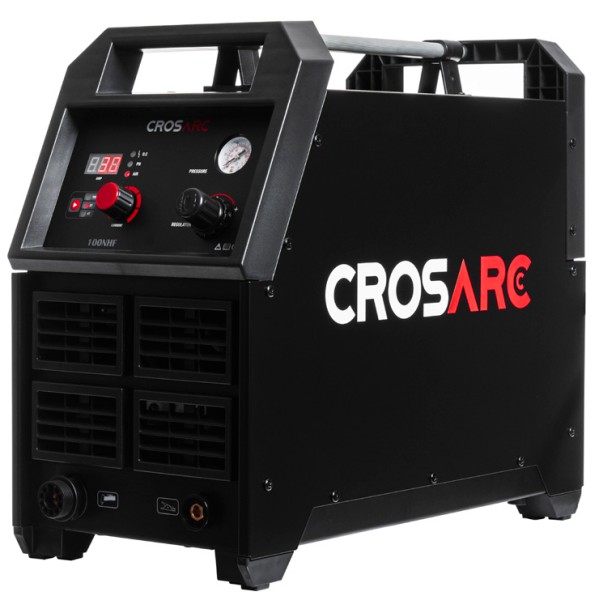

Cros Arc 100 NHF Plasma Cutter with 6m UPH105 Cutting Torch (3 PHASE)

Features

• Latest IGBT Inverter Power Source
• Digital Amp Display
• 35mm Clean Cut
• Air Pressure Adjustment
• Portable
• Generator Friendly
• Easy Set Up & Operation

Functions

• Plasma Cutting
• 2T/4T

Specifications

• Input Voltage 3P-400 (+-15%) 50/60Hz
• Input Current 23 (A)
• Cutting Capacity Clean Cut (mm) 35
• Cutting Capacity Severance (mm) 45
• Air Pressure (Bar) 5.5
• Current Range 30-100 (A)
• Duty Cycle @ 40°C 100A @ 60%
• Efficiency (%) 85
• Power Factor @ 100% 0.93
• Protection / Insulation Class IP21/F
• Cooling Fan
• Dimensions (mm)640 x 440 x 535
• Weight (Kg) 33
• Conforms to EN IEC 60974-10:2021 EN IEC 60974-1:2022
• Approvals CE UKCA

Package Includes

• 100 NHF Inverter Power Source
• 6 Mtr UPH105 Plasma Cutting Torch
• Earth Return Lead & Clamp
