Product Code: TREMTJIG
Ready to ship with

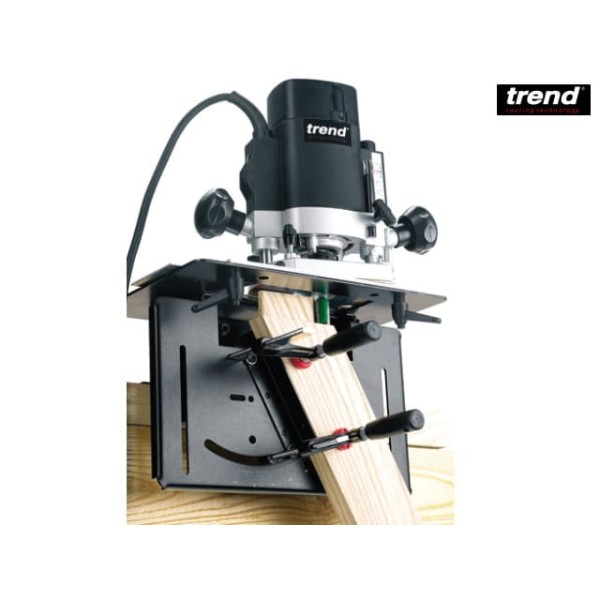

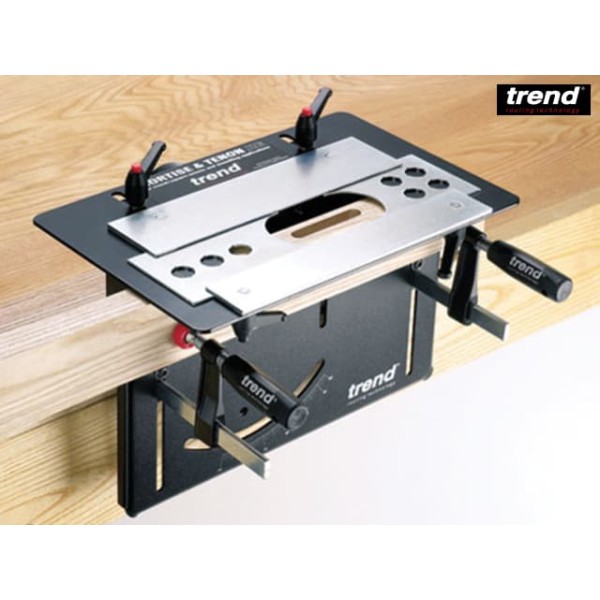

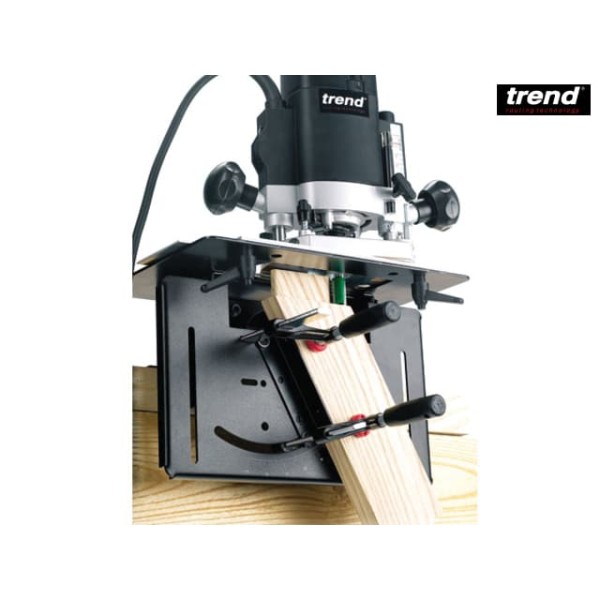

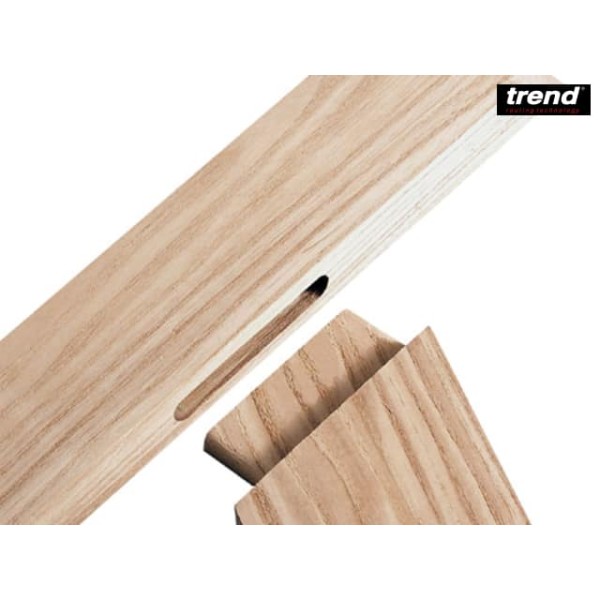

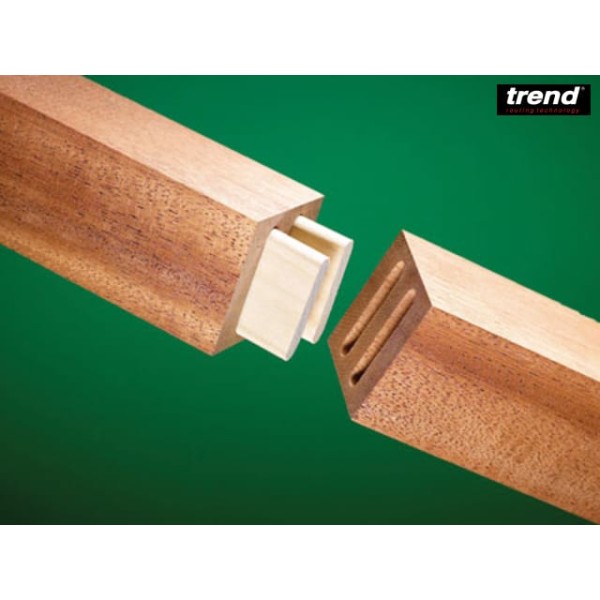

The Trend Mortice & Tenon Jig MT/JIG enables mortice, tenons and dowel joints to be cut with a router. Ideal for cabinets, chairs and table joints. There is a one set-up system for both mortice and tenon giving perfectly fitting joints and is fully adjustable for compound angle joints up to 45º.

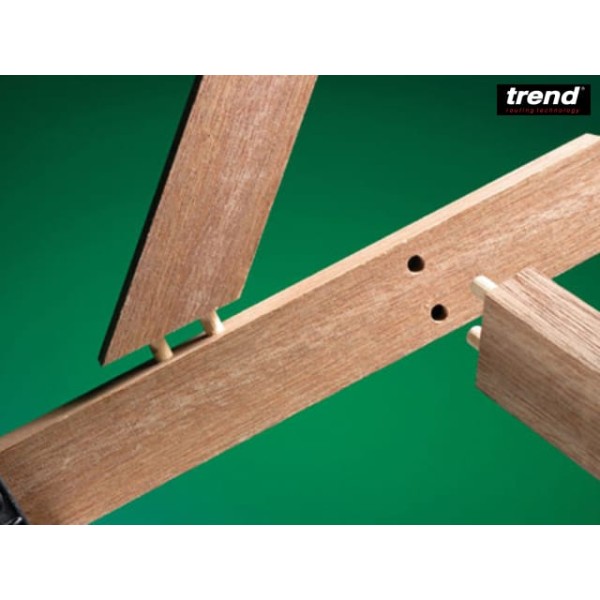

The reversible templates can be used to produce round and square end tenons and for accurate dowelling applications. It cuts mortice and tenon sizes of 1/4in (6.35mm) to 5/8in (15.9mm). A Unibase may be required for certain makes and models of router.
All tenons are cut with a 5/8 inch diameter straight cutter (Ref. C026). The width of the tenon is adjusted by using different guide bush diameters. International PCT Appl N.CNC precision manufactured plates and body.
Guide bushes are included but cutters are required.
Specification
Material Thickness: 12 - 47mm.Tenon Thickness: 4.8 - 16mm.Angle Tilt Compound: -10º to 45º.
Material Thickness: 12 - 47mm.Tenon Thickness: 4.8 - 16mm.Angle Tilt Compound: -10º to 45º.
