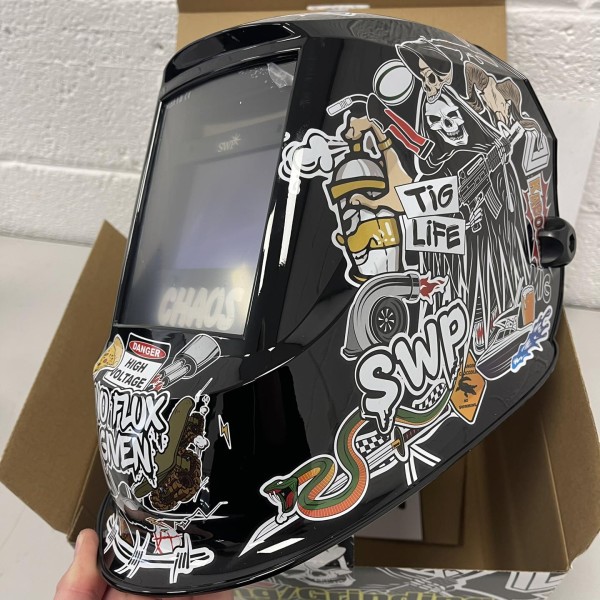

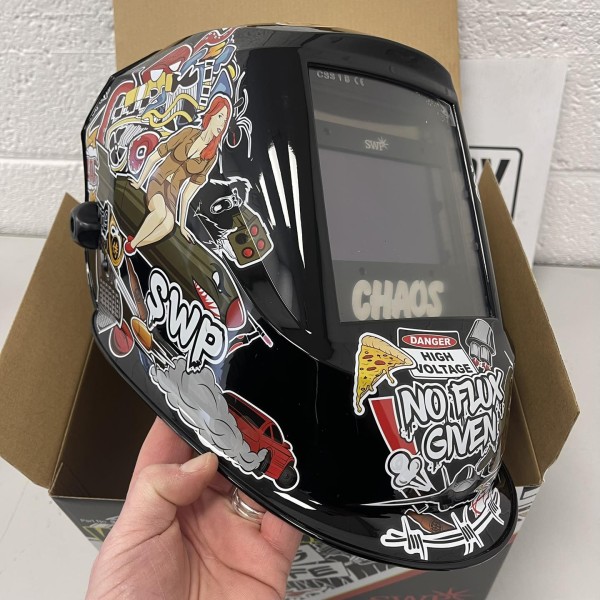

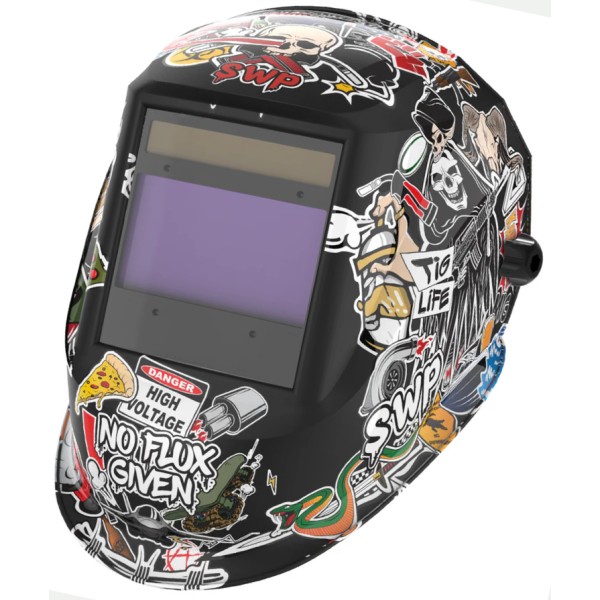

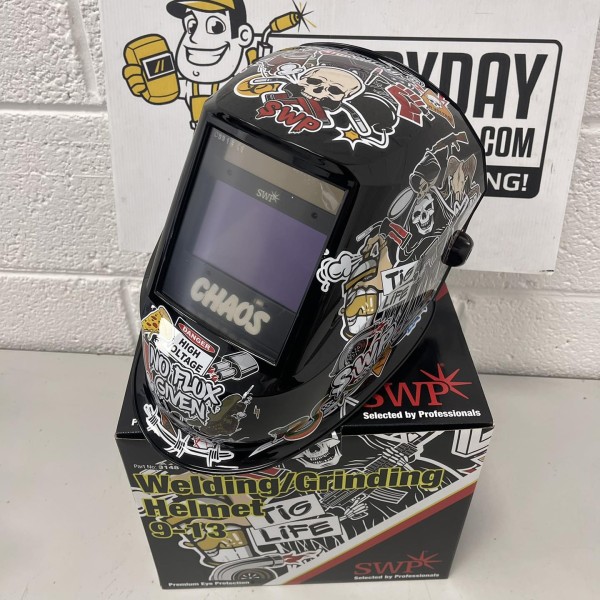

SWP CHAOS Variable Shade 9/13 Welding & Grinding Helmet

The SWP Chaos Welding & Grinding Helmet offers medium range welding vision, ideal for TIG and Plasma Welding. With variable shading and fully adjustable sensitivity and delay features, it maximizes ADF filter and provides state-of-the-art shade 4 protection through new generation true colour technology. CE classified 1/1/1/2 for all types of welding.

• Medium range welding vision
• Working from 3 amps ideal for TIG and Plasma Welding
• Variable shading to maximise the ADF filter and protection
• State shade 4 due to the new generation true colour technology
• Auto and manual shade settings
• Fully adjustable sensitivity and delay optimises setting for all types of welding in MIG, TIG and Plasma
• CE Classification: 1/1/1/2

Specifications

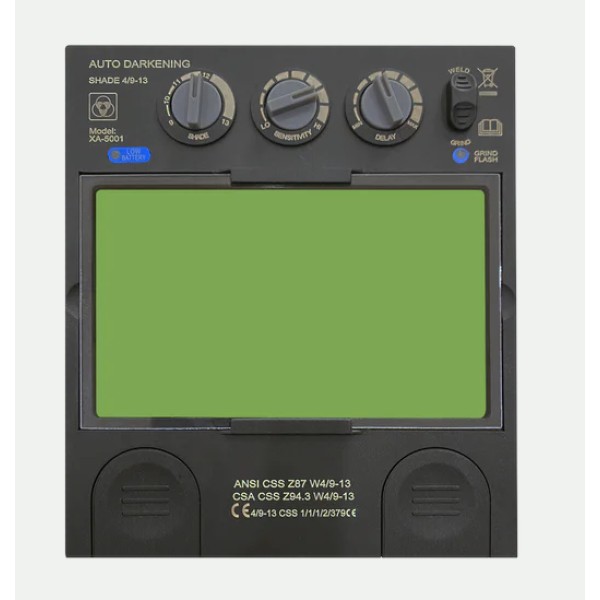

• Filter Dimensions: 114mm x 133mm x 9.5mm
• Viewing Area: 100mm x 83.4mm
• CE Classification: 1/1/1/2
• Sensors: 4
• Auto Shade: Yes
• Light Shade: 4
• Dark State: Variable shade 5-9/9-13
• Shade Control: Internal
• Switching Time: 0.04ms(ANSI)
• Sensitivity Control: Adjustable (Internal, Digital)
• Delay Time Control: Adjustable 0.1-0.9S
• Grinding Function: Yes – Digital Control
• Low Battery Warning Indicator: Yes
• Operation Temperature: -10°C -65°C
• Storing Temperature: -20°C-85°C
• Power Supply: Solar Cell, Replaceable Battery 1 x CR2450
• Inner Protection Lens: PL-5003
• Minimum TIG Welding Current: >3A
• Maximum TIG Welding Current: 350A

Standards

• CE Classification: 1/1/1/2

• Outer Replacement lens (1482)
• Inner Replacement lens (3021)
