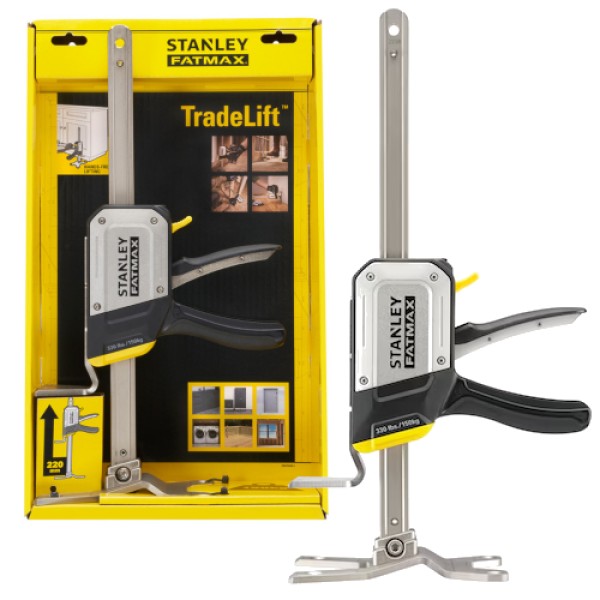

Stanley FatMax® 150kg Tradelift™ (FMHT83550-1)

STANLEY® FatMax® Tradelift™ with push down lever, allows the user to push down on the handle for easier lifting of heavy loads vs a trigger style mechanism. 8mm per stroke. There is also an incremental lowering tab lowering the lift plate 2.5mm per toggle for fine adjustments. Fitted with an overmould handle for improved comfort and grip. A recessed full release acts as a safety feature preventing accidental acitivation of full release.

Its enclosed metal plate housing provides improved durability, this prevents dust and debris from entering the tool. The enlarged base plate is extended at the rear for added stability. An angled edge makes it easier to slide the base under objects. Anchor points with countersunk screw holes allow the user to fasten the lift down for added stability.

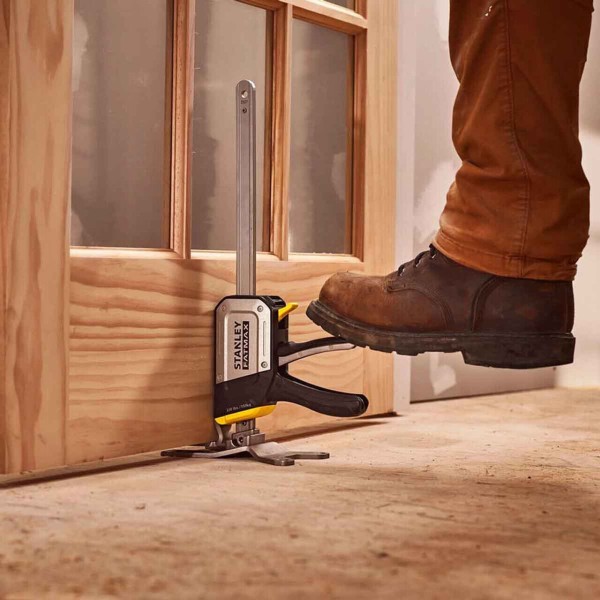

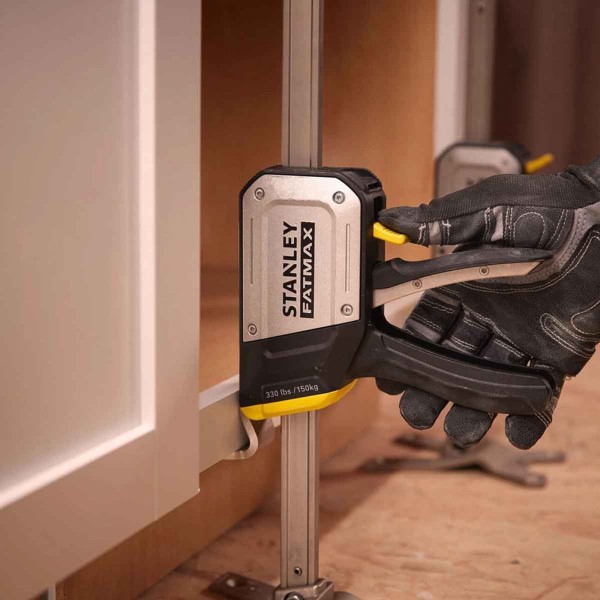

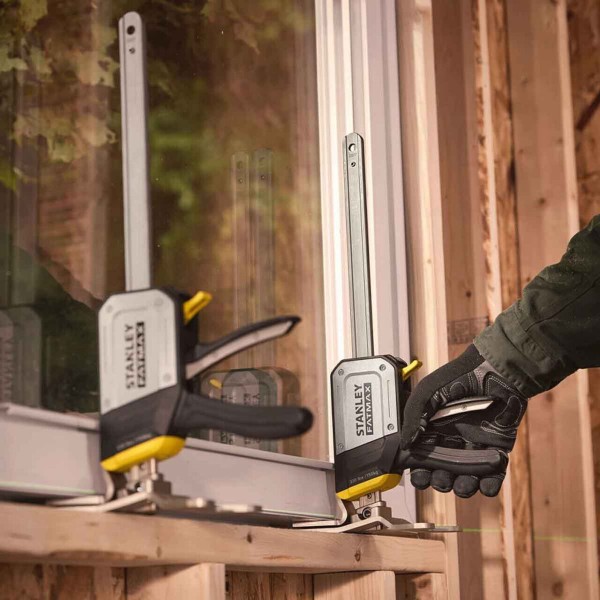

Ideal for use in a wide variety of work environments and trades; such as kitchen fitters, door/window fitters, carpenters, joiners, drywallers, flooring installers and general construction. Examples of application; lifting and levelling kitchen units, nudging heavy objects in to place, lifting and holding doors in place, fitting windows, etc.

Features

• Perfect for lifting, levelling, holding and fitting jobs
• Heavy-duty performance with up to 150kg lifting force
• Easy one-person operation saves time and effort
• Lever can be operated by foot for hands-free lifting
• Safe operation with a total lifting capacity of 220mm
• Lift plate lowers by 2.5mm per toggle for fine adjustments
• Angled edge makes it easier to slide under low objects
• Four countersunk screw holes for secure anchoring
• Large base plate provides stability and prevents tipping
• Recessed full release button to avoid accidental activation
• Enclosed metal plate housing protects against dust

Specification:

• Lifting Force: 150kg.
• Lifting Capacity: 7-220mm.
• Lifting Action: Lever.
• Lift Stroke Capacity: 8mm.
• Incremental Lowering: 2.5mm.
• Base Dimensions: 6 x 170 x 125mm.
