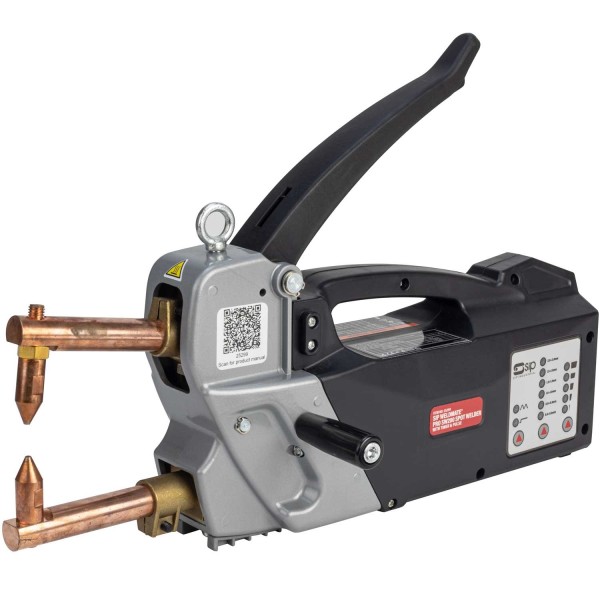

SIP WELDMATE® PRO SW200 Spot Welder w/ Timer/Pulse (25299S)

The SIP WELDMATE® PRO SW200 Spot Welder with Timer & Pulse is a portable resistance welder designed for sheet metal applications in automotive environments and light fabrication workshops.

Ideal for vehicle body panel repairs and light sheet metal tasks, this easy-to-use welder uses copper/chrome alloy electrodes to achieve a maximum welding thickness of 2mm + 2mm and features a microprocessor-controlled timer and pulse functions for consistent welds and enhanced penetration using a variety of material types.

For added flexibility the welder operates from a 13A supply. It is also available with a range of additional electrode arms sold individually or as a bodywork kit for greater application versatility.

KEY FEATURES:

• Maximum welding thickness of 2mm + 2mm
• Timer function 80~1800ms for consistent welds
• Pulse function for enhanced spot welding of coated materials
• Operates from a 13A supply for added ease-of-use
• Supplied with replacement 20mm straight electrodes

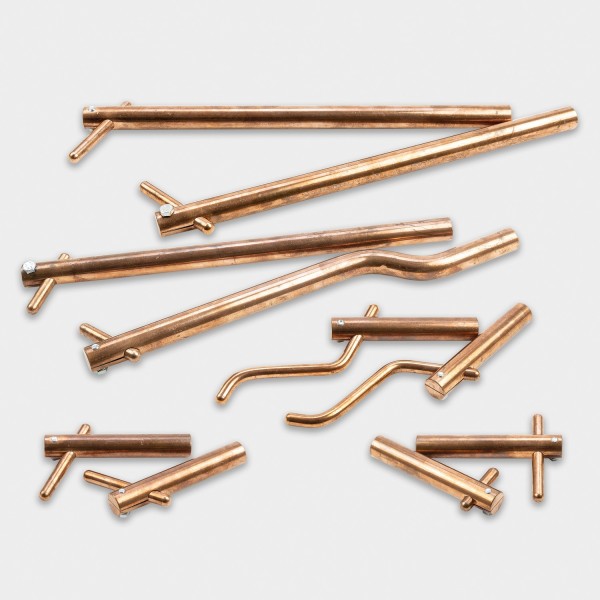

• Available with additional electrodes and bodywork kit

Technical Information:

• ITEM NO. 25299
• Input Supply: 230v (13A)
• Max. Welding Thickness: 2mm + 2mm
• Spot Duration: 80-180ms
• Welds Per Minute: 4 welds per minute
• Max. Electrode Force: 460N
• Net Weight: 9.7kg
• Gross Weight: 10.6kg
• Product Dimensions: 330(H) x 152(W) x 460mm(D)
• Packaged Dimensions: 265(H) x 140(W) x 515mm(D)
