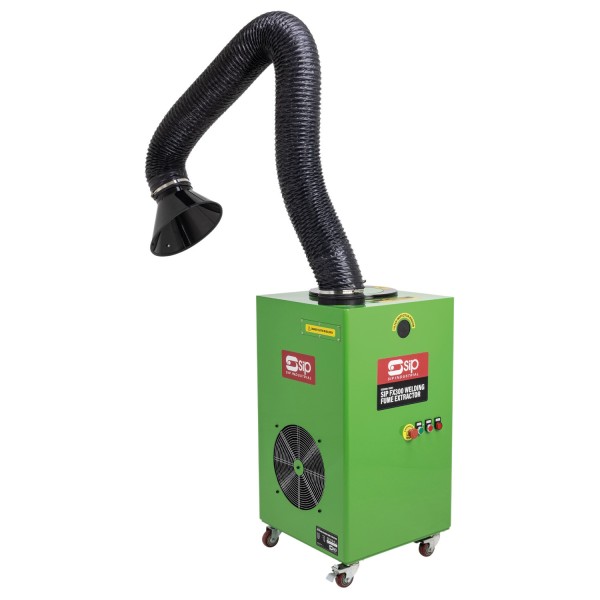

SIP FX300 Welding Fume Extractor (05814S)

The SIP FX300 Welding Fume Extractor is a powerful and mobile fume extractor designed to capture high-level concentrates of welding fume pollutants. Suitable for large fabrication workshops, welding stations and automotive settings.

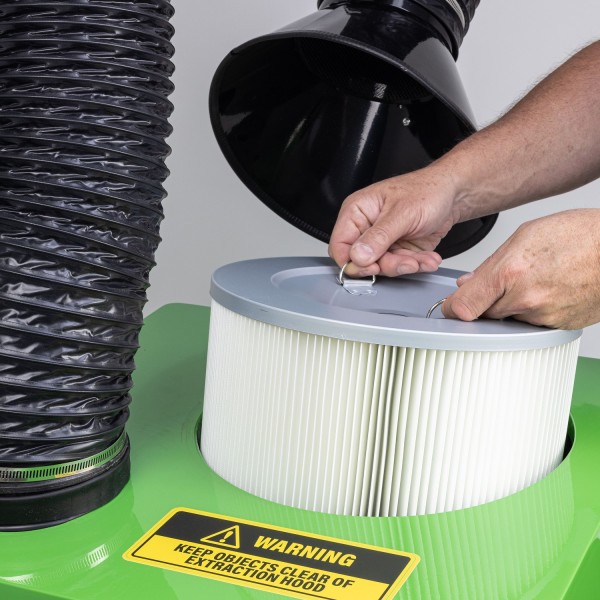

Featuring a 3-stage E12 filtration system and fitted with a 2m flexible arm suction hose, the FX300 filters 99.5% of sparks, spatter and dust as well as harmful fumes and gases.

This supports HSE requirements for handling weldable materials, which helps to reduce exposure to hazardous pollutants and improve work area quality.

KEY FEATURES:

• 3-stage filtration system captures 99.5% of welding fume pollutants
• High 2500m³/hr max. flow rate for high-level concentrates
• 2m flexible arm suction hose helps channel and capture harmful fumes
• Small physical footprint minimises lost work area space
• Extra-long 5m mains cable for added flexibility
• Fitted with lockable castors for easy mobility

Technical Information:

• ITEM NO. 05814
• Input Supply: 230V (13A)
• Motor Power: 1.5kW (2hp)
• Max. Flow Rate: 2500m³/hr
• Filtration Level: 99.5%
• Hose Length: 2m
• Noise Level: 75dB(A)
• Net Weight: 70kg
• Gross Weight: 84kg
• Product Dimensions: 2100(H) x 550(W) x 550mm(D)
• Packaged Dimensions: 980(H) x 575(W) x 580mm(D) (P1)
• 1165(H) x 340(W) x 550mm(D) (P2)
