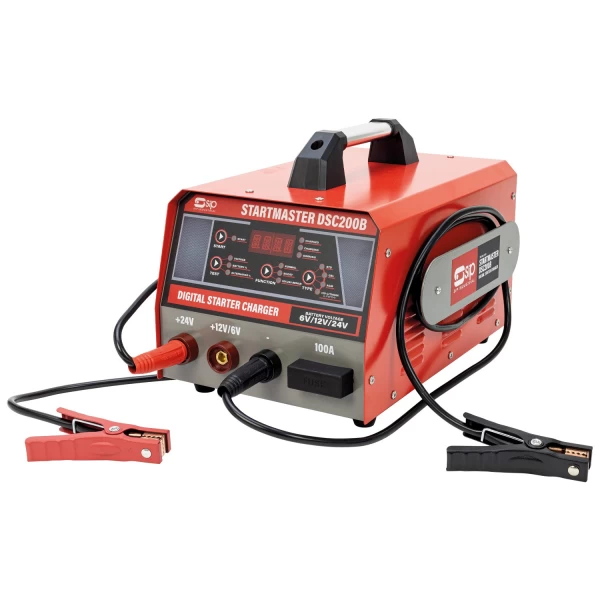

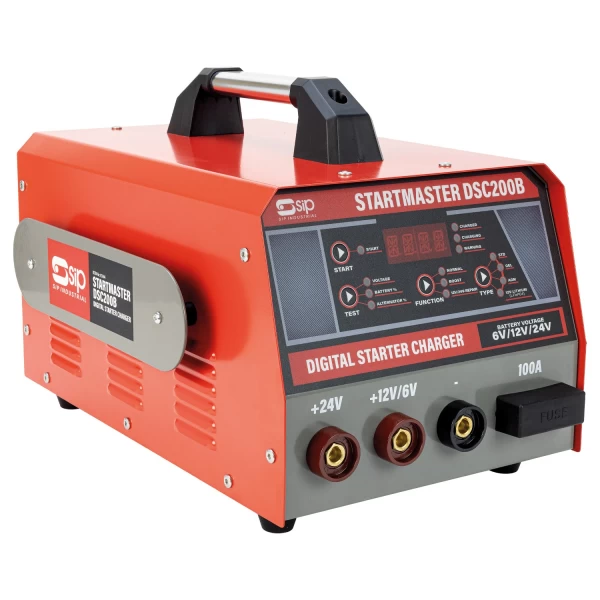

SIP STARTMASTER DSC200B Digital Starter Charger

The SIP STARTMASTER DSC200B Digital Starter Charger is a powerful bench-top digital starter charger designed for charging and boosting a variety of lead acid and Lithium-Ion battery types.

Featuring an intelligent microprocessor with 10-step automatic charging cycle, the STARTMASTER DSC200B makes battery charging and boosting easier, faster and safer.

KEY FEATURES

• 6v/12v/24v charging voltage and 200A max. engine boost-start
• Charging capacity of up to 350Ah max. rated
• Microprocessor-controlled automatic 10-step charging cycle
• Battery low voltage detector >1v
• One-person operation allows for single user engine boost-start
• LED display screen and intuitive soft touch control panel

Specification

• Input Supply: 230v 50Hz
• Battery Voltage: 6v / 12v / 24v
• Functions: 10-Stage Charging, Boost & Support
• CHARGING
• Battery Types: All 6v/12v/24v Lead Acid
• 12v 4-cell Lithium-Ion LiFePO4
• Charging Input: Continuous; 1000w / 4A
• Recommended Plug (not supplied): 230v (13A)
• Charging Current: 5A (6v) / 10A (12v) / 10A (24v)
• Boost Charging Current (5min max.): 25A (6v) / 25A (12v) / 20A (24v)
• Battery Capacity: 350Ah
• JUMP START
• Start Voltage: >1v
• Start Input (5sec): 4.5kW / 20A
• Recommended Plug (not supplied): 230v (32A)
• Fuse: 100A
• Max. Start Current: 200A (fully discharged battery)
• 150A (medium charged battery)
