Product Code: 01940S

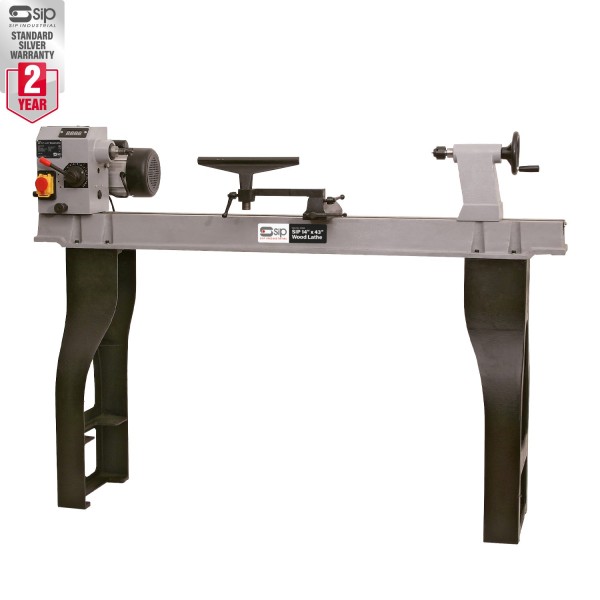

The SIP 14" x 43" Swivel Head Wood Lathe is an ideal solution for those seeking a robust and adaptable lathe for woodturning. Crucial to a functioning workshop, this machine tool allows a woodturner to accurately shape, turn, drill and sand workpieces to the desired specification.
For added functionality, a 360° swivel headstock with four locking positions is fitted to allow outboard turning of larger wood materials. Heavy-duty cast iron legs are fitted to the lathe to maximise stability during this process. The lathe bed, headstock and tailstock are also manufactured to a professional finish from heavy-duty cast iron.
The headstock has an MT1 taper and tailstock an MT2 taper alongside a variable speed motor which runs between 500rpm and 2000rpm. The eassy-change speed handle has 10 settings and a digital readout speed display for greater turning control.
Supplied with tool rest holder, 6" faceplate, drive and tailstock centres, 2x tool rests and bowl turning rest holder.
Applications & uses | Perfect for turning furniture legs, staircase spindles and bespoke woodwork items. Accurately turns, shapes, drills and sands workpieces to the desired specification. Suitable for soft and hard woods.
SIP 2-Year Standard Silver Warranty | Find out more
3/4" x 16TPI spindle thread size
Allows the use of various turning attachments.
350mm max. turning diameter (1100mm between centres)
Enables a variety of woodwork projects and jobs.
360° swivel headstock with four lock positions
Allows for outboard turning of larger wood materials.
Heavy-duty cast iron legs
Prevents flex and movement of the bed and enhances stability when outboard turning.
Heavy-duty cast iron lathe bed
Ensures greater turning stability and accuracy.
Cast iron MT1 headstock and MT2 tailstock
For an assured hold to the workpiece when turning.
Digital speedometer display
Provides accurate readout of headstock spindle speed.
Fitted with hollow tailstock for long hole boring
Offers added versatility for professional applications.
| ITEM NO. | 01940 |
| Input Supply: | 230v (13A) |
| Motor Power: | 750w (1hp) |
| Speed Range: | 500rpm - 2000rpm |
| Distance Between Centres: | 1100mm (43") |
| Turning Capacity: | 350mm (14") |
| Spindle Through Hole: | 10mm (Drive) / 10mm (Tailstock) |
| Drive Spur Size: | 1 Morse Taper |
| Tailstock Rotating Centre Size: | 2 Morse Taper |
| Noise Level: | 68dB(A) |
| Net Weight: | 130.00kg |
| Gross Weight: | 154.00kg |
| Product Dimensions: | 1600(H) x 1160(W) x 450mm(D) |
| Packaged Dimensions: | 1625(H) x 520(W) x 405mm(D) |
