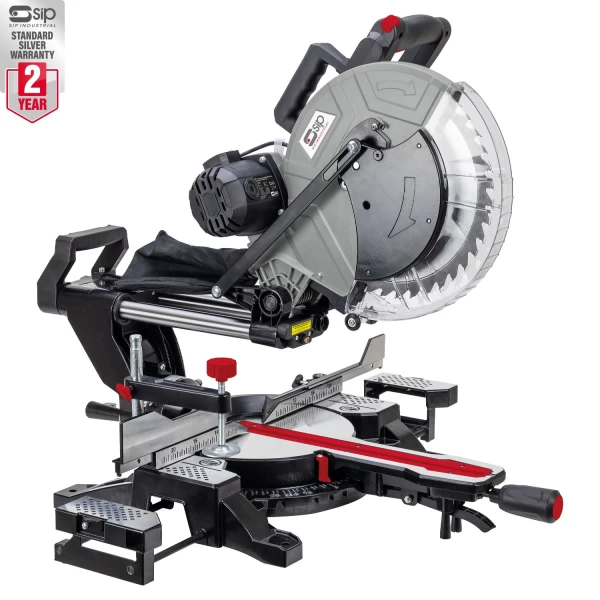

SIP 12" Sliding Compound Mitre Saw w/ Laser

The SIP 12" Sliding Compound Mitre Saw with Laser is a powerful, versatile and accurate woodcutting saw. Designed with a belt-driven motor for smoother handling and quieter operation, it is ideal for professional woodworking workshops, domestic or commercial premises and DIY uses.

Featuring a 12" blade for handling larger workpieces and making deeper cuts, plus compound fuctionality to perform both bevel and mitre cuts, this heavy-duty multi-process tool is ideal for frequent day-to-day use.

KEY FEATURES

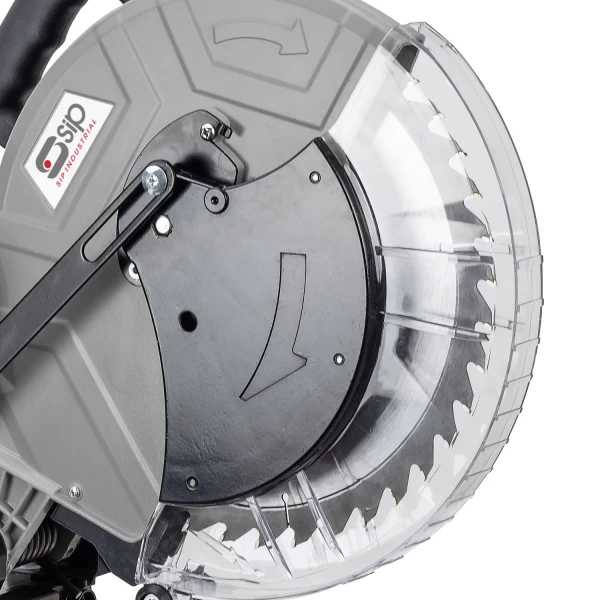

• Fitted with a ⌀ 305mm x 40TCT high-quality saw blade
• High-torque belt-driven motor for smooth handling and quieter operation

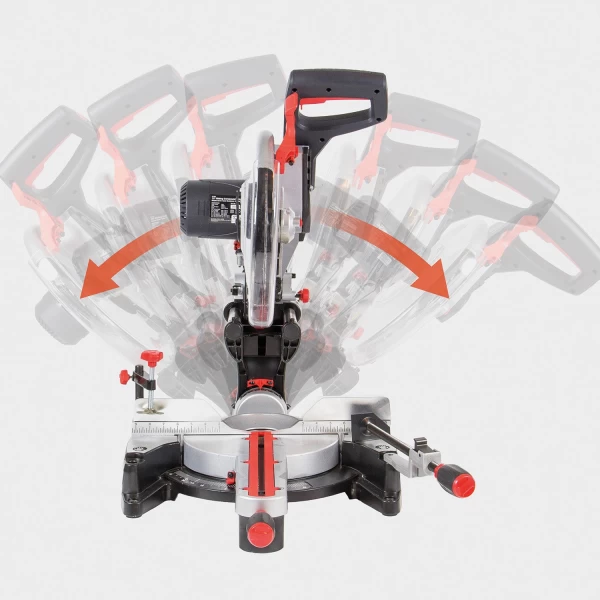

• Double bevel function is adjustable to 45° both left and right
• -45° / 0° / +45° mitre range for greater cutting capacity
• Adjustable depth-cut setting for tenoning and trenching tasks

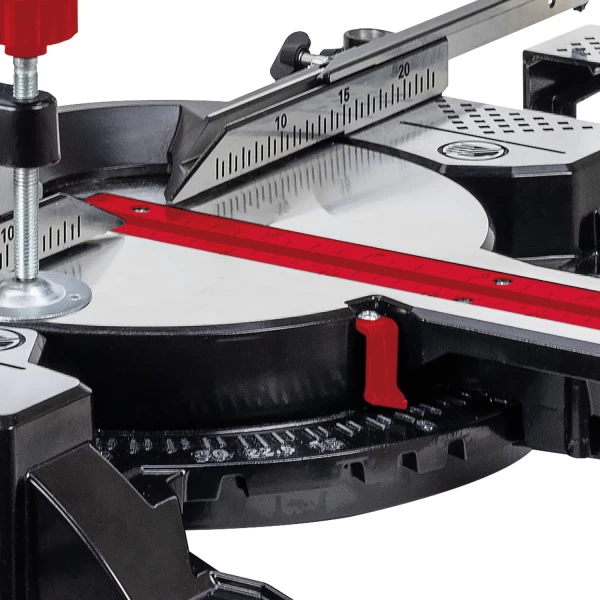

• Heavy-duty rotating table with pre-set mitre gauge stops

Specifications

• ITEM NO. 01505
• Input Supply: 230v (13A)
• Motor Power: 1.8kW (2.4hp)
• Blade Speed: 3800rpm
• Blade Diameter: ⌀ 305mm
• Blade Bore Size: 30mm
• Blade Teeth: 40TCT
• Blade Thickness: 1.8mm min. / 2.8mm max.
• Mitre Range: -45° / 0° / +45°
• Bevel Range: Up to 45° (left and right)
• Cutting Capacities: 00° x 00°: 330mm x 105mm (straight) 45° x 00°: 230mm x 105mm (mitre) 00° x 45°: 330mm x 60mm (left bevel) 00° x 45°: 230mm x 33mm (right bevel) 45° x 45°: 230mm x 60mm (left compound mitre) 45° x 45°: 230mm x 33mm (right compound mitre)
• Net Weight: 16.00kg
• Gross Weight: 18.60kg
• Product Dimensions: 600(H) x 650(W) x 890mm(D)
• Packaged Dimensions: 530(H) x 920(W) x 575mm(D)
