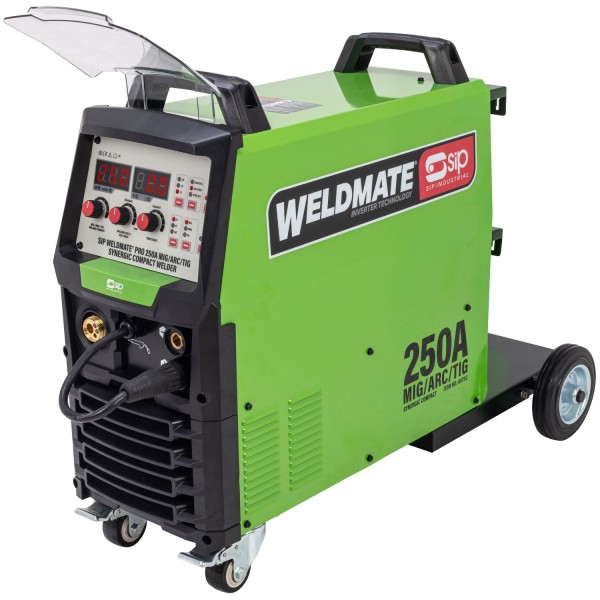

SIP WELDMATE® PRO 250A MIG/ARC/TIG Welder (05752S)

The SIP WELDMATE® PRO 250A MIG/ARC/TIG Synergic Compact Inverter Welder is a multi-process inverter welder specifically designed for use in professional fabrication workshops.

Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.

It also includes Pure Synergic Control, which allows users to adjust welding voltage and wire feed speed autonomously. This simplifies the welding process at all skill levels and helps to achieve more consistent and higher quality welds.

KEY FEATURES:

• Multi-process MIG/ARC/TIG welder for greater welding flexibility at high duty cycles
• Features Pure Synergic Control for more consistent and higher quality welds
• Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)
• Heavy-duty cast aluminium 4-roll wire feed drive handles higher feed speeds
• Intuitive control panel to select between welding processes and function settings
• Wheel-mounted design with lockable front castors for mobility around work area

Technical Information:

• ITEM NO. 05752
• Input Supply: 230v (32A)
• Welding Process: MIG ARC TIG
• Output Voltage: 15.5v - 26.5v 21.2v - 30v 10.4v - 20v
• Output Current: 30A - 250A 30A - 250A 10A - 250A
• Duty Cycle @ 20°C: 250A @ 80% 250A @ 80% 250A @ 80%
• Wire Diameter: ⌀ 0.8mm - 1.2mm
• Wire Spool Size: 5kg, 15kg
• Welding Material Thickness: 0.8mm - 8.5mm (mild steel) / 2.5mm - 8.5mm (aluminium)
• Protection / Insulation 21S / H
• Net Weight: 40kg
• Gross Weight: 43kg
• Product Dimensions: 650(H) x 450(W) x 880mm(D)
• Packaged Dimensions: 620(H) x 400(W) x 670mm(D)
