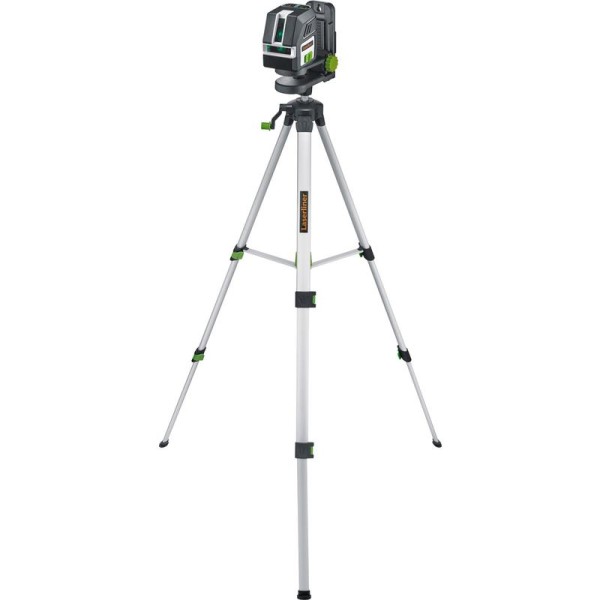

Laserliner 036.713A PocketCross-Laser 2G Set Cross-Line Laser, 150cm (32162)

Product Description:

This cross-line laser projects a highly visible green laser cross for precise horizontal and vertical alignment of objects. It also has a manual slope function for setting creating gradients. A versatile range of accessories means this laser is the solution for any precision alignment job. The compact tripod has a wide adjustment range due to the multi-section telescopic legs and a crank (30 cm stroke). The PocketWallHolder, a multi-functional, height-adjustable magnetic bracket, is suitable for attaching to walls, metal items, and tripods with a 1/4” or 5/8” thread. Supplied with battery pack.

• Accurate horizontal and vertical alignment of objects
• Supplied with battery pack
• Good visibility through green laser technology
• Easy alignment of slopes with manual tilt function
• Light and robust compact tripod 150cm
• Crank height adjustment and telescopic tripod legs
• Height-adjustable, magnetic, multi-function bracket with 1/4” and 5/8” thread for attaching to walls, metal items and tripods
• Magnetic target plate with stand, nail hole and dual scale – perfect for working close to ceilings
• Laser enhancement glasses for optimum visibility of laser lines with the human eye
• Time-saving automatic alignment

Specifications:

• Horizontal/vertical levelling Yes
• Manual slope function Yes
• Battery and mains operation Yes
• Hand receiver mode Yes
• Self-Levelling Range ± 3.5° (horizontal)
• Accuracy ±0.3 mm/m
• Levelling Automatic
• Visibility (Typical)* 55 m
• Laser Wavelength 515nm
• Laser Class 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
• Power Supply Li-ion battery pack 3.7V / 3.6Ah / 13.32Wh, Power adapter 5V / DC / 2A
• Operating Time approx. 15 hours
• Operating Conditions 0°C … 50°C
• Dimensions (W x H x D) 91 mm x 82 mm x 60 mm
• Weight 334g (incl. Akkupack)

Contents:

• 1 x Laserliner 036.713A PocketCross-Laser 2G Set Cross-Line Laser, 150cm
• 1 x Compact tripod 150 cm
• 1 x PocketWallHolder
• 1 x Magnetic target plate green
• 1 x Laser enhancement glasses
• 1 x Li-ion battery pack
• 1 x Network/charging device incl. international adapter
• 1 x USB-C-cable
• 1 x Carrying case
