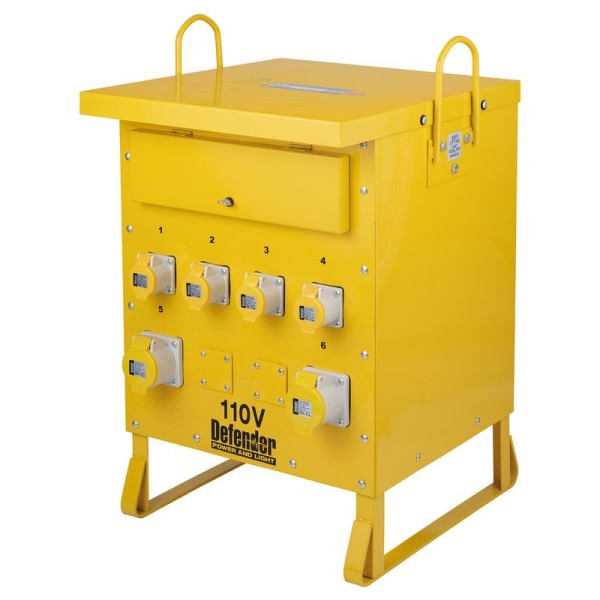

Defender ZE210027 110V 10kVA 3-Phase Transformer - 16A/32A

FEATURES:

3-phase, heavy duty transformer with 4 x 16A and 2 x 32A 110V outlets. Hard-wearing steel enclosure. Elevated underside for improved access. Double wound with safety earth screen. Supplied without plug or cable. Intermittent rating 10000VA. Continuous rating 7000VA. Duty cycle 5 mins on / 15 mins off. Ingress protection rating: IP44. BSEN 61558-1 compliant. Dimensions: 775 x 515 x 800mm. Weight 80kg.

SPECIFICATION:

• Input voltage: 400-415V - 3P
• Output voltage: 110V
• Apparent Power (kVA): 10KVA
• Intermittent duty rated output: 10000VA (10KVA)
• Continuous duty rated output: 7000VA(7.0KVA
• IP Rating: IP44
• Rated Power Factor: 0.93 cos
• Socket Outlet configuration: 4X16A Socket + 2X32A socket
• Dimensions: 775 x 500 x 545mm
• Weight: 80.5kg

CONTENTS:

• 1 x Defender ZE210027 110V 10kVA 3-Phase Transformer, 16A/32A
• 4 x 16A Socket
• 2 x 32A socket
