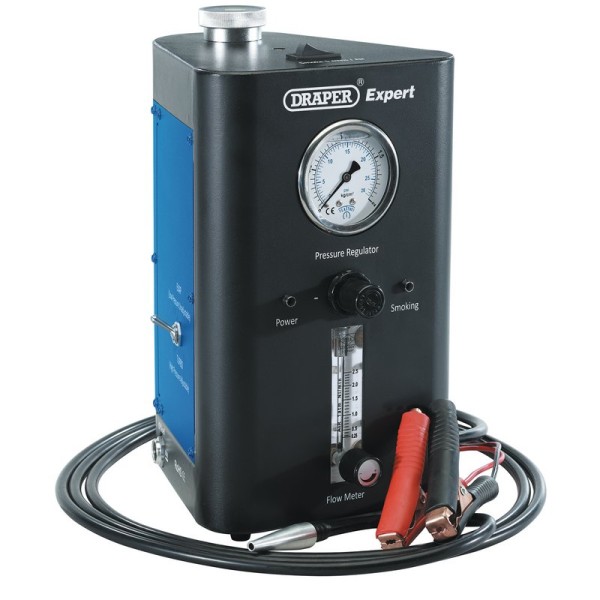

Draper EXPERT Turbo/EVAP Smoke Diagnostic Machine

FEATURES:

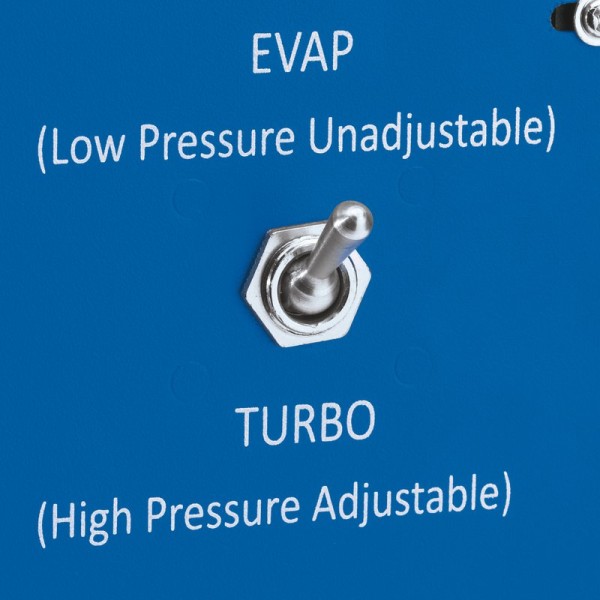

Expert Quality smoke diagnostic machine. Effortlessly switches between the turbo and EVAP (Evaporation Emission Control System) testing. Fitted with visual pressure, flow and fluid level indicators. Engineered to eliminate any guesswork when operating. The variable flow gauge and control makes pinpointing leaks precisely and quickly a breeze and the oil - filled gauge delivers added accuracy. Excels at finding all types of petrol and diesel system leaks including turbos, intercoolers, manifolds, brake boosters, EGR valves, brake vacuum hoses, cooling systems, air and waters leaks and much more. The air mode or smoke mode are easily switched between making it highly efficient when identifying leaks. The compact and lightweight design coupled with an onboard micro air compressor and 12V power connection delivers a fully portable unit, ideal for all types of mechanic including breakdown technicians. Supplied with 23 plastic plugs used to seal a variety of openings, 31mm - 81mm cone adaptor, battery cable with crocodile clips, smoke outlet hose, air intake adaptor, a hand inflatable block off bladder, hook and EVAP service kit. All stored in a convenient accessory storage case.

SPECIFICATION:

• Power Supply 12V DC
• Turbo Mode Output Pressure 3-20 PSI
• EVAP Mode Output Pressure 0.75 PSI
• Operating Temperature 0 °F - 140°F (-17°C - 60°C)
• Hose Length 3m (10ft)
• Operating Modes Smoke 5-minute cycle/air cycle
• Recommended Fluid Mineral oil (not supplied)
• Dimensions 280 x 185 x 165mm
• Weight 4.5kg
