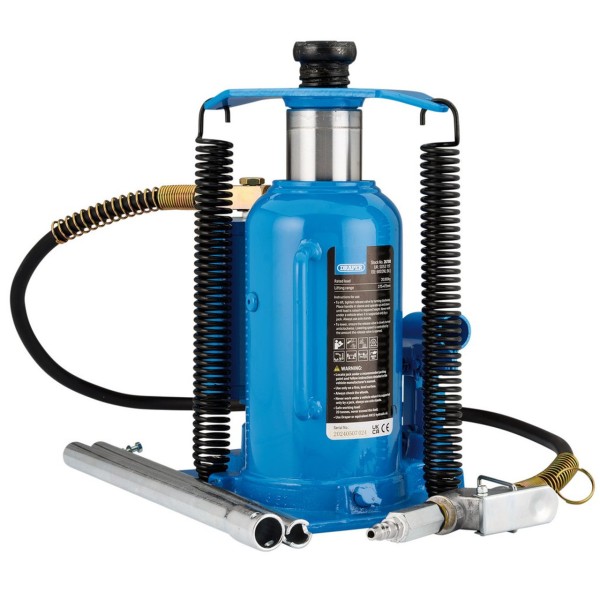

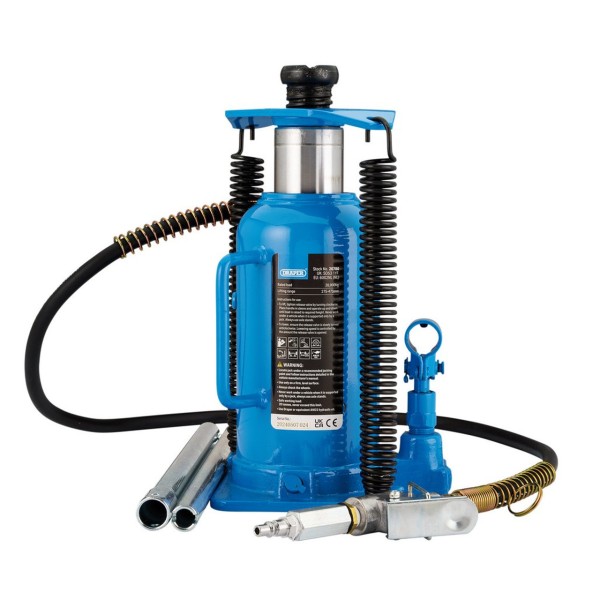

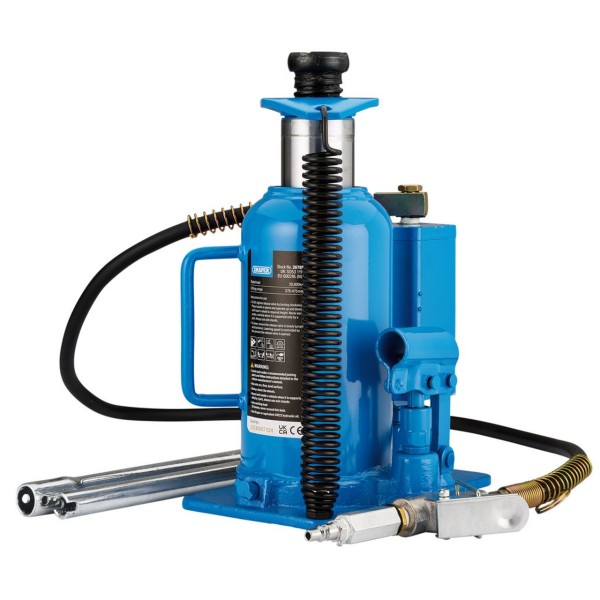

Draper Air Bottle Jack, 20 Tonne (26780)

This air bottle jack can effortlessly handle heavy loads up to 20 tonnes. It has a minimum height of 245mm and a maximum height of 474mm, making it versatile and suitable for various lifting needs. The extendable screw reaches up to 80mm, allowing for precise adjustments. You can connect the air compressor for pneumatic lifting and control it by using the air valve, which makes heavy lifting effortless and improves work efficiency. The bottle jack can also be operated hydraulically by hand using the two-piece handle for extra versatility. It is built with a robust welded base and reservoir to improve strength and minimise leaks. Additionally, there is a built-in safety valve to prevent overloading. The jack also features an integrated carry handle for easy transportation and storage.

• 245-474mm lifting range
• Powerful air compressor for pneumatic lifting
• Secure manual pump operation using two-piece handle
• Welded base and reservoir for enhanced strength and leak minimisation
• Carry handle for ease of transportation and storage
• Manufactured to EN 1494 Specification

Specifications

• Capacity 20 Tonne
• Lifting range 245-475mm
• Screw extension 80mm
• Operating air pressure 0.7-1mpa
• Saddle diameter 45mm
• Air coupler 1/4" BSP
• Hydraulic lift 150mm
• Ram diameter 72mm
• Jack handle length 650mm
• Base size 220 x 175mm
• Weight 16kg
