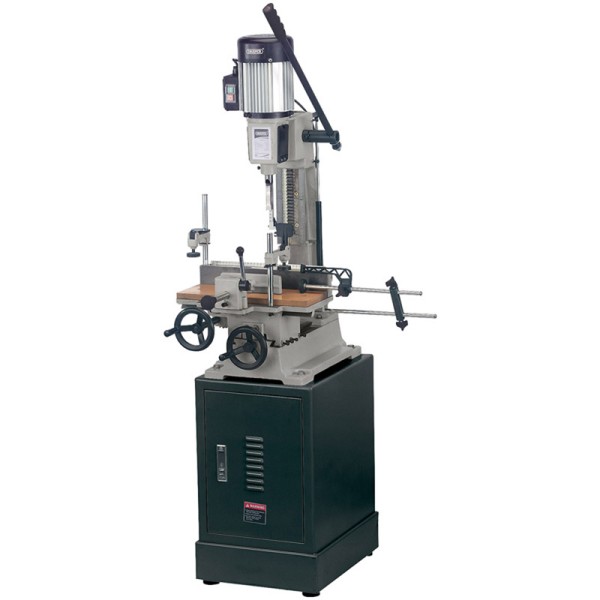

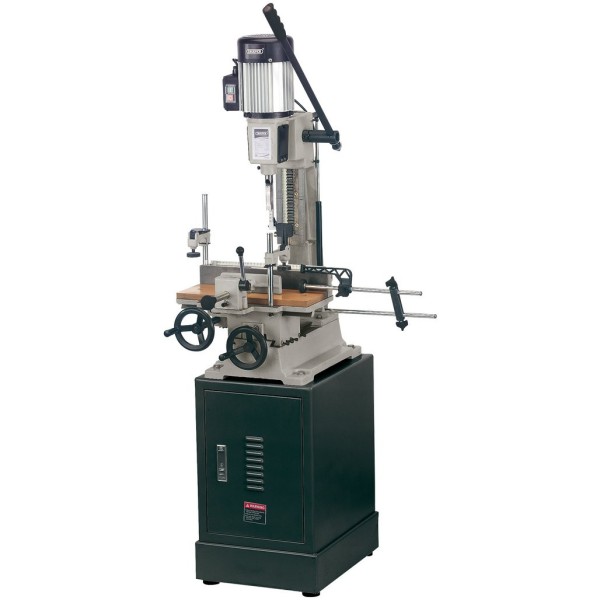

Draper Morticer and Stand, 1", 750W (09896)

Powerful induction motor supports 1" mortice facility. Back, forth and lateral table movement allows for easy positioning of larger workpieces. Fully adjustable work clamps and depth stops allow for accurate morticing. Supplied with 5/8" chisel and bit, 19mm, 13/16" and 13/16" chisel bushes, 16mm chuck and key, work clamp, 2m (approx.) cable and approved plug. Display packed on pallet.

• Powerful induction motor
• Multi-directional table movement
• Easily positioned for larger workpieces
• Fully adjustable work clamps
• Depth stops allow for accurate morticing
• Supplied with 5/8" chisel and bit, 19mm, 13/16" and 13/16" chisel bushes, 16mm chuck and key
• Fitted with 2M (approx.) cable and approved plug
• No-volt switch

Specifications

• Base Size 300 x 450mm
• Chuck Capacity 16mm
• Speed 1400r/min
• Table Size 400 x 150mm
• Weight (Machine Only) 108kg
• Chisel Capacity 25.4mm (1")
• Chisel Stroke (Max) 220mm
• Clamping Height (Max) 200mm
• Fence To Chisel Centre 140mm
