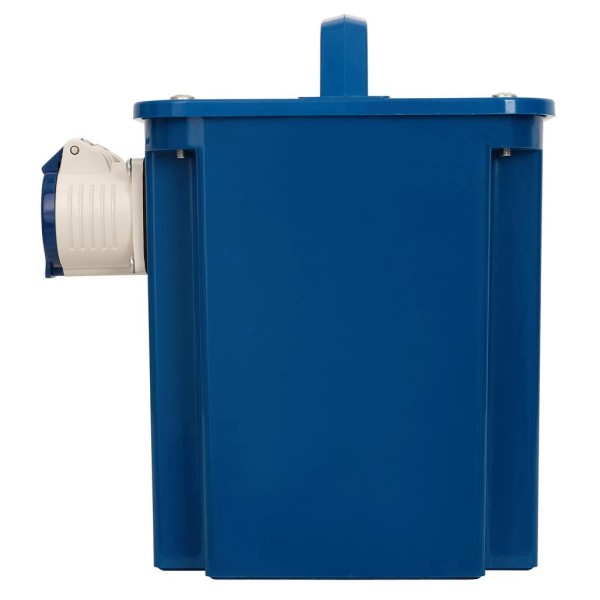

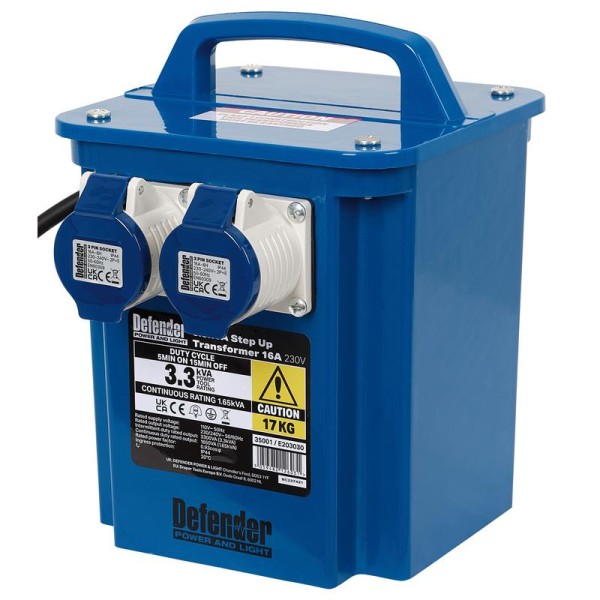

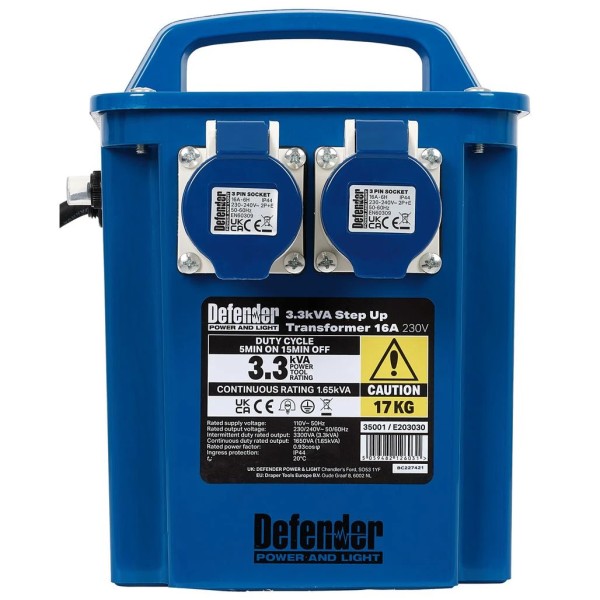

Defender E203030 3.3kVA 230V Step Up Transformer, 16A (35001)

FEATURES:

Step-up transformer with tough GRP case to withstand harsh conditions for site use. Features 2 x 16A outlets. Enables users to operate 240V 16A tools by attaching to a 110V electrical circuit. Provides isolation from mains and eliminates the need for a second set of tools. Centre tapped to earth for extra safety. Intermittent rating 3300VA. Continuous rating 1650VA. Duty cycle 5 mins on / 15 mins off. Ingress protection rating: IP44. Supplied with 110V 16A plug and 1.7m cable. BSEN 61558-1 compliant. Dimensions: 190 x 240 x 260mm. Weight 17kg.

• Amperage 16A
• Voltage 230V

SPECIFICATION:

• Input Voltage: 110V AC, 50Hz
• Output Voltage: 230––240V AC, 50/60Hz
• Apparent Power: 3.3kVA
• Intermittent Rating: 3300VA (3.3kVA)
• Continuous Rating: 1650VA (1.65kVA)
• Sockets: 2 ✕ 16A 230V
• Ingress Protection: IP44
• Dimensions (W ✕ D ✕ H): 260 ✕ 220 ✕ 192mm
• Weight: 17kg

CONTENTS:

• 1 x Defender E203030 3.3kVA 230V Step Up Transformer, 16A
• 2 x 16A Socket
• 1 x 1.8 m H05VV-F 3x1.5mm Yellow PVC cable
• 1 x 16A Plug
