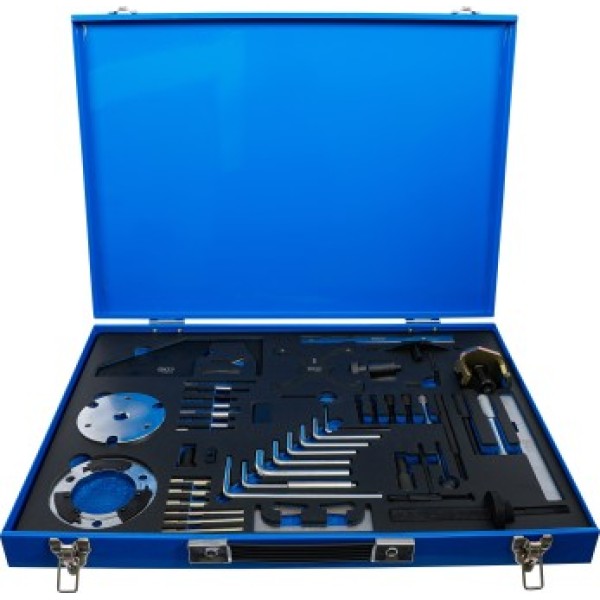

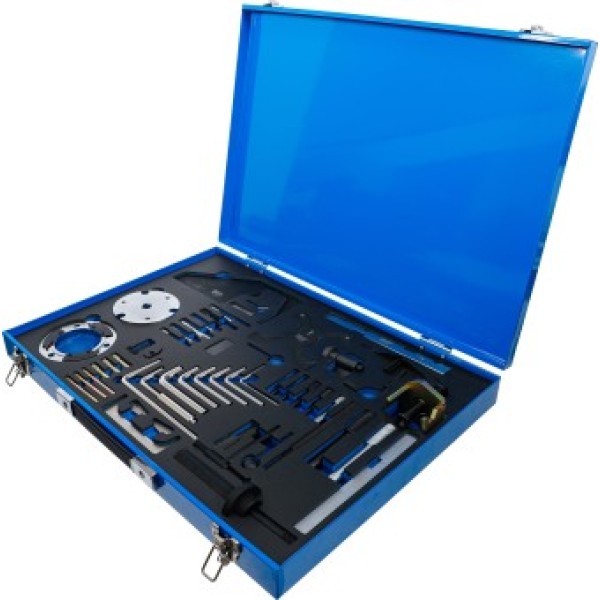

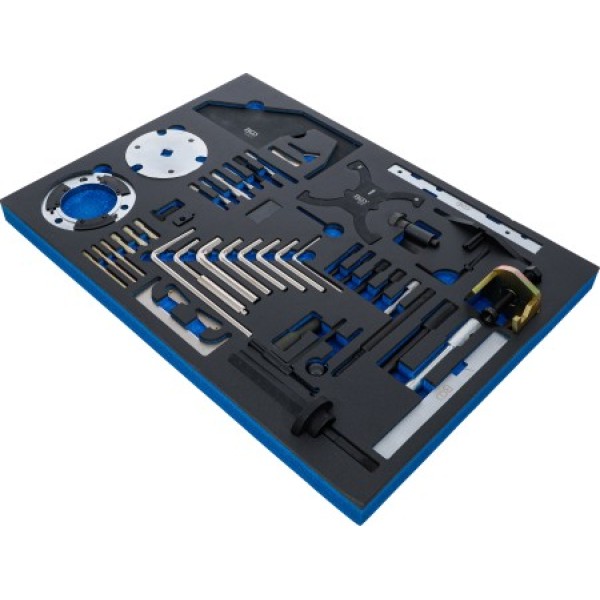

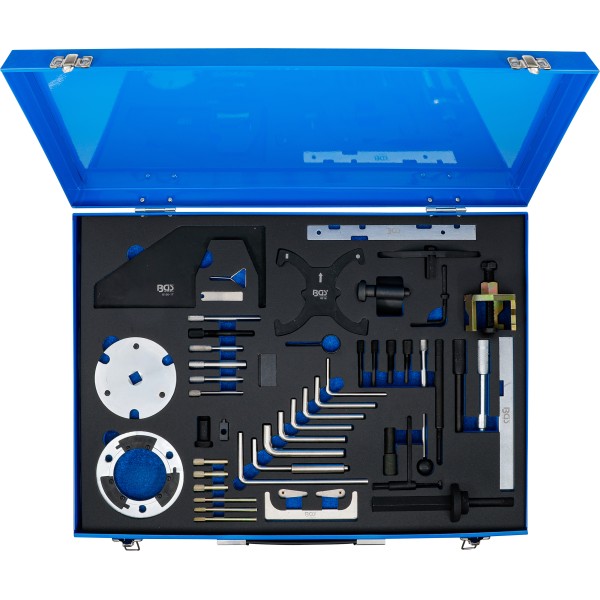

BGS Technic Tool Tray 3/3: Engine Timing Tool Set | for Ford, VW, Seat, Mazda, Volvo

• for checking and adjusting the engine timing

suitable for the following models:

• Ford Fiesta, Fusion, Courier, Escort, Focus, Focus C Max, Puma, Mondeo, Sierra, Cougar, Galaxy, C-Max, Orion, Tourneo Connect, Transit, Transit Connect
• VW Sharan
• Seat Alhambra
• Mazda 121
• Volvo S40, V50

gasoline engines:

• 1.2 / 1.25 / 1.4 / 1.6 / 1.6 / 1.7 / 1.8 / 2.0 16V / 1.6 TI-VCT / 1.6 SCTI

diesel engines:

• 1.6 Duratorq TDCI / 1.8D / 1.8TD / 1.8 DI (98-04) / 1.8 TDCI (01-04) / 1.6D / 1.9TDI / 2.5D TCI / 1.9TDI / 2.5D/TCI / 1.4TDCI / 1.6TDCI / 1.8D / 1.8TCI / 1.8TDDI / 1.8TDCI / 1.8D Turbo / 1.9TDI PD / 2.0TDCI / 2.2TDCI / 2.5D / 2.5D Turbo / 2.0 / 2.2 / 2.4 Duratorq TDCI 16V / 1.4TDCI / 1.6D 8V / 1.6D 16V

engine codes:

• 1Z / 4BA / 4BB / 4BC / 4CA / 4CB / 4CC / 4DA / 4EA / 4EB / 4EC / 4ED / 4FA / 4FA / 4FB / 4FC / 4FD / 4GA / 4GA / 4GB / 4GC / 4GD / 4GE / 4GF / 4HA / 4HB / 4HC /
  4HD / ABFA / AFN / AFN / AHU / AHU / ANU / ASDA / ASDB / AUY / AVG / AZBA / AZBC / AZWA / AZWC / BHPA / C9DC / D24 / D24T / D24TIC / D2FA / D3FA / D4FA / D5BA /
  D6BA / DHA / DHB / DHC / DHD / DHE / DHF / DHG / DOFA / F3FA / F4FA / F6JA /
  F6JB / F6JC / F6JD / F8JA / F8JB / F9DA/B / FFBA / FFWA / FHA / FHE / FIFA /
  FMBA/B / FUJA / FUJB / FXDA/C / FXDB/D / FXFA / FXJA / FXJB / FXJC / FYDA/C / FYDB/D / FYDH / FYJA / FYJC / FYJB / G6DA / G6DB / G6DC / G6DD / G6DE /
  G6DF / G6DG / G8DA / G8DB / H9FA / H9FB / HCPA / HCPB / HHDA / HHDB / HHJA / HHJC / HHJD / HHJE / HHJF / HJBA/B / HWDA / HWDA1Z / HWDB / HXDA / HXJA /
  HXJB / IQDA/B / IQDB / IXDA / JQDA / JTDA / JTDB / KHBA / KKDA / KKDA / KKDB / KLBA / KLWA / KNBA / L1E / L1G / L1H / L1K / L1T / L1V / LPBA / LQDB / M7JA /
  M7JB / N7BA / N7BB / P7PA / P9PA / P9PB / PNBA / PNDA / Q4BA / QJBA / QJBB /
  QJBC / QJBD / QXBA / QXBB / QXWA / QXWB / QYBA / QYWA / R2PA / R3PA / RDA /
  RDB / RFK / RFN / RFN / RHBA / RKC / RKD / RQB / RQC / RTA / RTB / RTC / RTD / RTE / RTF / RTG / RTH / RTJ / RTJ / RTK / RTK / RVA / RVA / RWPA / RWPC / SHDA / SHDB / SHDC / SIDA / SNJA / SNJB / SPJA / SPJC / STJA / STJB / TXBA / TXDA / TXDB / TXWA / TYBA / TYDA / TYWA / TZJA / TZJB / UFBA / UFDA / UFDB / UFWA / UKBA /
  UKDA / UKDB / UKWA

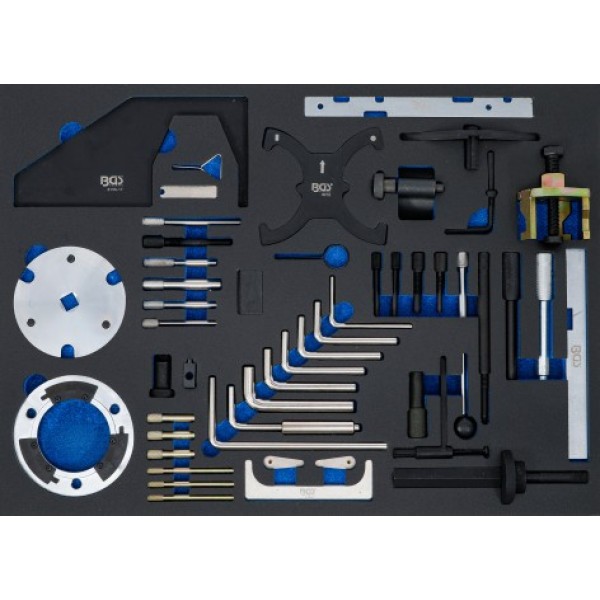

scope of delivery:

• camshaft adjusting tools, to be used as OEM 21-105, 303-1061, 21-162B, 303-367, 303-376, 323-029
• injection pump adjusting tools, to be used as OEM 2064, 23-047, 310-055, U20003, 21-260, 303-732, 23-020, 21-238, 303-679A, 303-1151
• flywheel / crankshaft locking tool, to be used as OEM 303-1060, 0132-AB, 0178-D, 21-151, 0194-B, 21-263, 303-735, 49JE02021, 21-234, 21-251, 0194-C, 21-262, 303-734, 21-163, 303-620, 21-210, 21-123, 21-234, 21-251, 303-675, 303-698
• camshaft sprocket puller, to be used as OEM 21-229, 303-651
• feeler gauge
