BGS Technic Tool Tray 3/3: Engine Timing Tool Set | for Fiat, Alfa, Lancia, Opel, Suzuki, Ford

• for checking and adjusting the engine timing

suitable for the following models:

• Opel Corsa B/C / Combo / Tigra / Agila /Tigra B / Meriva / Astra F/G/H / Astravan / Speedster VX220 / Zafira A/B / Vectra B/C / Signum / Omega B / Sintra / Frontera A/B / Astravan / Kadett / Ascona / Omega / Monterey / Antara / Croma / Speedster VX220
• Chevrolet & Daewoo Epica / Captiva / Nubira / Lacetti / Evanda
• Saab 9-3 / 9-5 (98-04)
• Alfa 145 / 146 / 147 / 156 / 159 / 166
• GT / Crosswagon Q4
• Fiat Punto / Grande Punto / Bravo / Brava / Marea Weekend / Stilo / Doblò/Cargo / Multipla Idea / Panda
• Lancia Ypsilon / Musa / Lybra / Thesis
• Suzuki Ignis / Swift / Wagon R+
• Ford Ka

engines:

• 1.0 12V / 1.0 16V / 1.2 16V / 1.4 /1.6 / 1.2-1.4 16V (chain) / 2.0 / 2.0 Turbo / 2.2 DI / 2.0-2.2 16V / 1.6 16V / 1.8 16V / 2.0 16V / 2.2 16V / 1.3 JTD MultiJet / 1.3 CDTI / 1.3 TDCI / 1.6 MultiJet / 1.9 JTD / 1.9 MultiJet / 2.4 JTD / 1.9 CDTI / 2.0 MultiJet /1.5 D / 1.5 TD / 1.7 D / 1.7 TD / 1.6-1.7 D / 3.0 TD / 3.1TD / 2.0-2.2-2.4 TD / 2.0-2.2 DI / 2.0 TDCI / 2.0 D VCDI / 2.2 16V (DOHC)
• engine codes:
  X14XE / Z14XE / X16SEJ / X16XE / X16XEL / Y16XE / Z16XE /
  Z16YNG / C18XEL / X18XE / X18XE1 / Z18XE / Z18XEL / C20SEL / C20XE /
  X20XEV / Z20LEH / Z20LEL / Z20LER / Z20LET / X22SE / X22XE / Y22SE /
  Y22XE / Z22XE / D223L /X10XE / Z10XE / Z10XEP / X12XE / Z12XE / Z14XEP /
  X20DTL / X20DTH / X22DTH / Y20DTL / Y20DTH / Y22DTH / Y22DTR /
  169A1.000 / 955A4.000 / 350A3.000 / 192B4.000 / 198A2.000 / 350A2.000 /
  955A3.000 / 192A8.000 / 198A6.000 / 198A3.000 / 199B1.000 / 199B2.000 /
  199A2.000 / 199A3.000 / 199A9.000 / 940A3.000 / 188A3.000 / 939A2.000 /
  188B2.000 / 188A8.000 / 188A9.000 / 323.02 / 371.01 / 937A2.000 /
  182B4.000 / 182B9.000 / 188A2.000 / 188A7.000 / 192A9.000 / 186A6.000 /
  186A8.000 / 192A1.000 / 192A3.000 / 192B1.000 / 192A5.000 / 186A9.000 /
  939A1.000 / 199A5.000 / 223A7.000 / 223A9.000 / 342.02 / 362.02 /
  841G.000 / 841H.000 / 841P.000 / 939A3.000 / 185A2.000 / 185A6.000 /
  Z13DT / Z13DTJ / Z13DTH / Z19DT / Z19DTH / Z19DTJ / Z19DTL  /
  X10XE / Z10XE / Z10XEP / Z12XE / Z14XEP / X16SZR / Z16SE / 4EC1/T / 4EC1 / 4EE1/T / 4EE1 / X17DT / Y17DT / Y17DTi / Y17DTL / 16DA / 17D /
  17DR/X / 7DTL / X17DTL / 4JX1/4 / JG2T /4FC1/T / 4FD1 / X20DTL /
  Y20DTL / D223L Z20DMH / Z20DM / RA420 / Z20S1 /194A1.000 / Z22SE / Z22YH

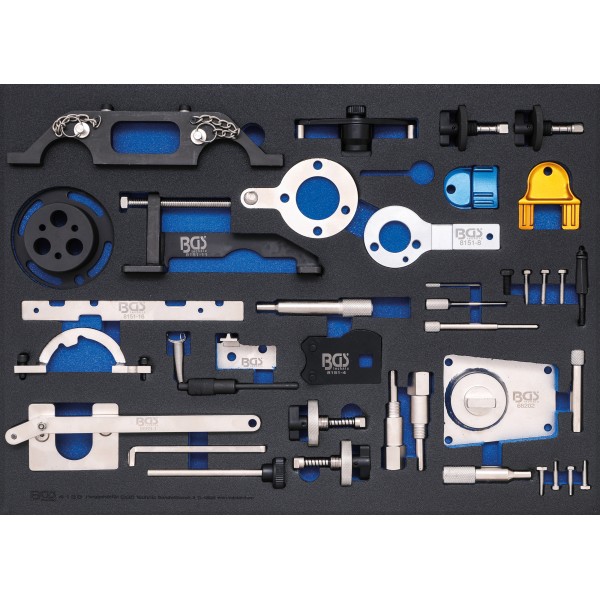

scope of delivery:

• adjusting wrench, to be used as OEM KM-933
• injection pump locking pin, to be used as OEM KM-927
• flywheel & crankshaft locking tools, to be used as OEM KM-929 / KM-952 / EN-46785 / KM-951 / 1860905000 / 1860905010 / EN-46788 / KM-911 / EN-46785 / 1860703000 / EN-48246 / 1870900300 / 303-1468
• tensioner tools, to be used as OEM KM-955 / KM-6130 / KM-6349 / KM-6349 / 1870900400 / 1871000200
