BGS Technic Thread Repair Kit | metric / Inch Sizes | M5 - M12, 1/4" - 1/2" | 320 pcs.

universal set composition

metric and inch sizes

for thread repair of damaged or worn-out threads

perfect for maintenance and installation

the repair is carried out in just a few steps

drill out the damaged thread with the twist drill

use the special tap to cut the internal thread into the drilled hole

to install, place the thread insert on the installation tool and screw it in the thread insert with light pressure

the use of cutting oil is recommended

simple and safe handling

allows a cost- and time-saving repair

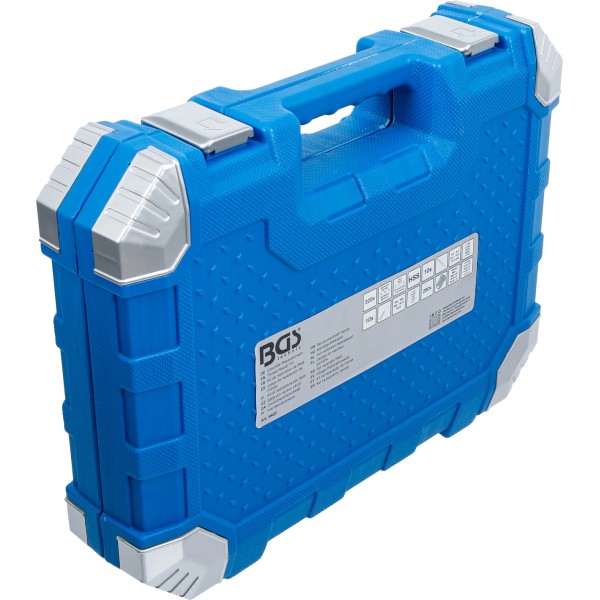

in a sturdy blow mould case with EPE foam tray

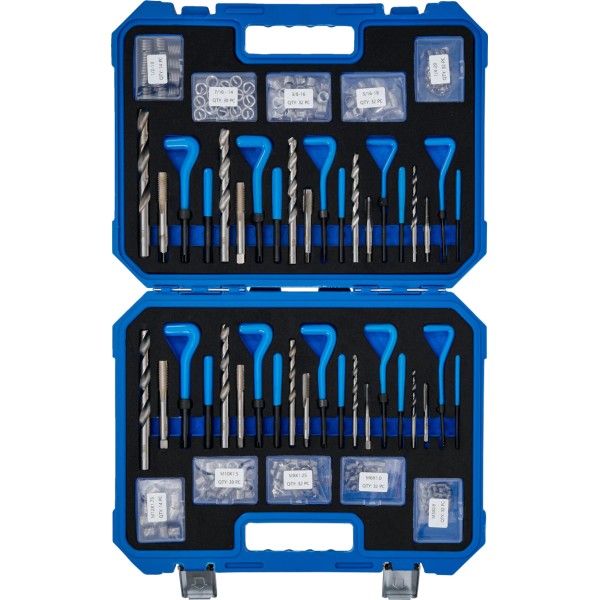

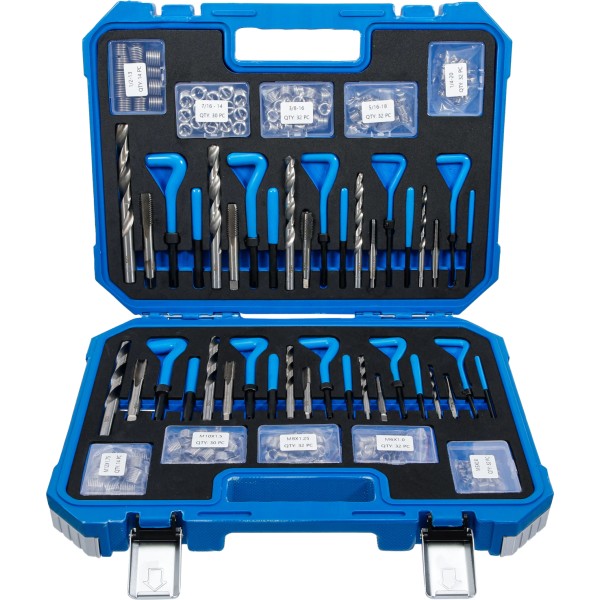

the tools are protected in the hard foam tray and are stowed in the recesses in a non-slip manner

each individual tool has its appropriate place

• 5 Twist Drills (Metric) 5.2 - 6.3 - 8.3 - 10.4 - 12.4 mm
• 5 STI Short Machine Tap for threaded inserts M5 - M6 - M8 - M10 - M12
• 32 threaded inserts M5x0.8
• 32 threaded inserts M6x1
• 32 threaded inserts M8x1.25
• 30 threaded inserts M10x1.5
• 14 threaded inserts M12x1.75
• 5 Twist Drills (imperial) 17/64" - 21/64" - 25/64" - 29/64" - 17/32"
• 5 STI Short Machine Tap for threaded inserts 1/4" - 5/16" - 3/8" - 7/16" - 1/2"
• 32 threaded inserts 1/4 "x20
• 32 threaded inserts 5/16x18
• 32 threaded inserts 3/8 "x16
• 30 Threaded inserts 7/16 "x14
• 14 Threaded inserts 1/2 "x13
• 10 assembly tools
• 10 tenon breakers
