BGS Technic Rubber Bushing Tool Set | for Toyota | 13 pcs.

• for removing and installing of rubber bushings on rear axles

suitable for following vehicle models:

• Toyota Avensis (M2)
• Toyota Corolla
• Toyota Corolla Verso (E12)
• Toyota Previa (R3)
• Toyota Yaris (P10, P13)
• Toyota Yaris Verso (P20, P21, P22)
• Toyota Camry, Picnic (XM1)

fits on rubber bushings with the following original spare part numbers:

• 48725-28050, 28725-44050, 28725-44050, 48725-02220, 48725-12580, 48725-0F010, 48725-47010, 48725-52010, 48725-52020, 48725-0D011, 48725-0D050

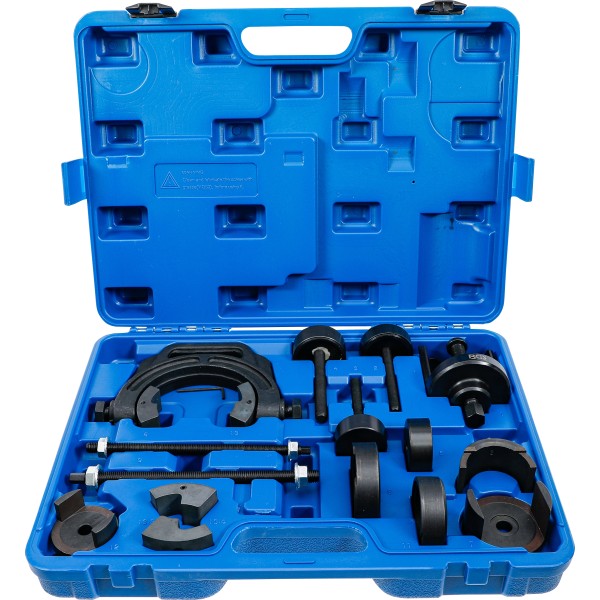

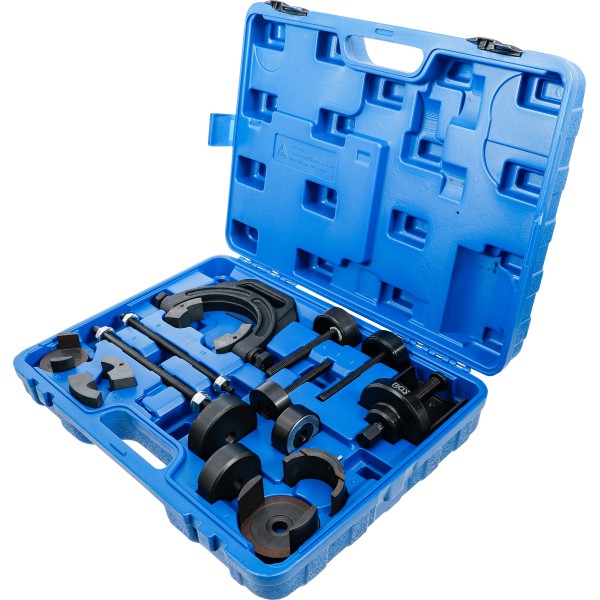

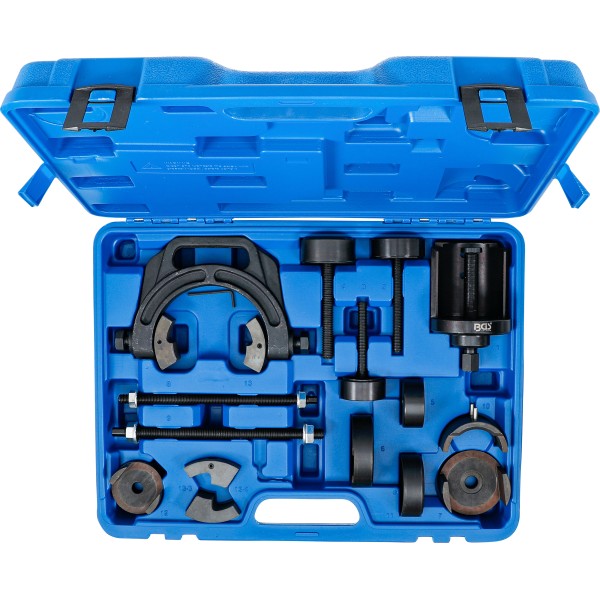

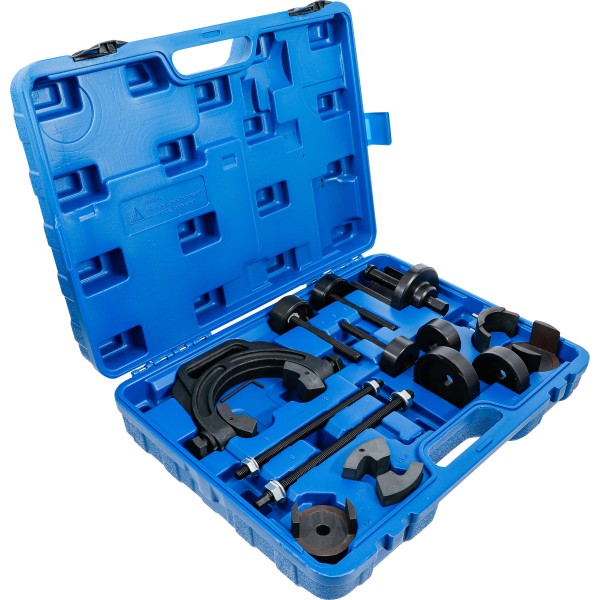

scope of delivery:

• 1 disassembly tool, half round open, with spindle, Ø 92 x 122 mm height
• 1 disassembly pressure piece with spindle (for medium-sized bushings), M12 x 1.5
• 1 disassembly pressure piece with spindle (for small bushings), M12 x 1.5
• 1 disassembly pressure piece with spindle (for large bushings), M14 x 2.0
• 1 ball bearing, Ø 57 x 23 mm height
• 1 assembly pressure plate for medium and large-sized bushings, Ø 84 x 24 mm height
• 1 assembly pressure piece for medium and large-sized bushings, Ø 9.5 x 52 mm height
• 1 pulling spindle, M12 x 1.75
• 2 pulling spindle nut, M12 x 1.75
• 1 pulling spindle, M14 x 2.0
• 2 pulling spindle nut, M14 x 2.0
• 1 reduction shell for for small bushings
• 1 assembly pressure plate for small bushings
• 1 assembly pressure piece for small bushings
• 1 C-bracket
• 2 C-bracket bolts, M16 x 24
• 2 holding clamps for medium and large-sized bushings
• 2 holding clamps for small bushings
