BGS Technic Repair Kit for Glow Plug Threads | for Audi, VW | 28 pcs.

• for quick and professional drilling out damaged or torn-off glow plugs without removing the cylinder head
• allows re-cutting or repairing of the glow plug thread and cleaning of the electrode bore
• exact depth and drilling angle are reached using guide sleeves
• suitable for M10 x 1 glow plug thread bores, e. g. on VW Passat, Audi with TDI engines 2.5, 2.7, 3.0 V6 with engine codes AFB, AKE, AKN, ASB, AYM, BAU, BCZ, BDG, BDH, BFC, BKN, BKS, BMK, BNG, BSG, BUN, BUG

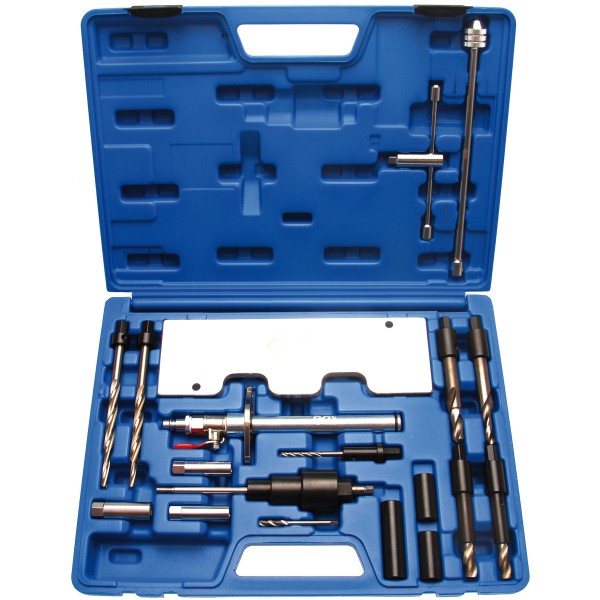

scope of delivery:

• cover plate for intake ports
• compressed air adaptor for injector bore
• 9.1 mm drill for M10 x 1
• 11.1 mm drill for M12 x 1
• tap with guide sleeve for M10 x 1 threads
• tap with guide sleeve for M12 x 1 threads
• 10 threaded inserts for M10 x 1 with external thread M12 x 1
• taps M6 x 1.25 mm
• extraction tool
• 2 reamers 4.8 mm, long and short type
• reamer 5.8 mm long type
• guide sleeves, Ø 17.5 mm OD - 38 mm length, inside Ø 9 mm
• guide sleeves, Ø 17.5 mm OD - 38 mm length, inside Ø 13 mm
• guide sleeves, Ø 17.5 mm OD - 63 mm length, inside Ø 13 mm
• 2.4 - 5.5 mm tapping holder 240 mm long with 6.3 mm (1/4") drive
• 3 extractor electrodes for 2.5 - 3.5 - 4 mm
