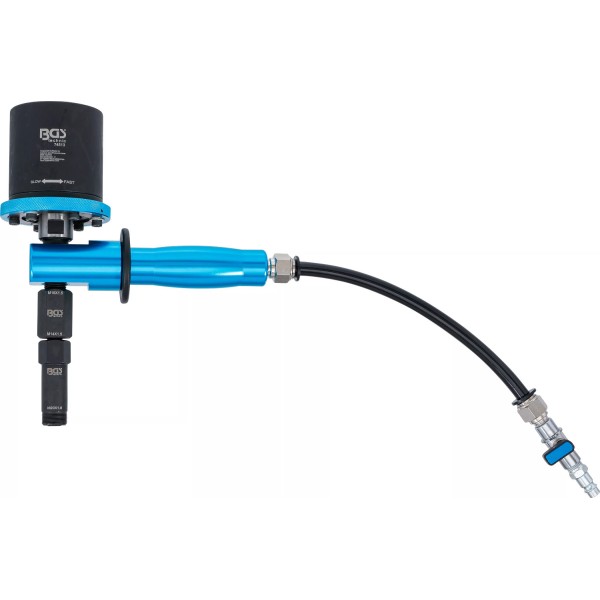

BGS Technic Pneumatic Injector Extractor Set

• for compressed air-assisted removal of particularly tight diesel injectors
• the diesel injectors are removed from the cylinder head by pneumatically generated impact effect
• coking and rust deposits are broken up and the injector will released from sealing seat

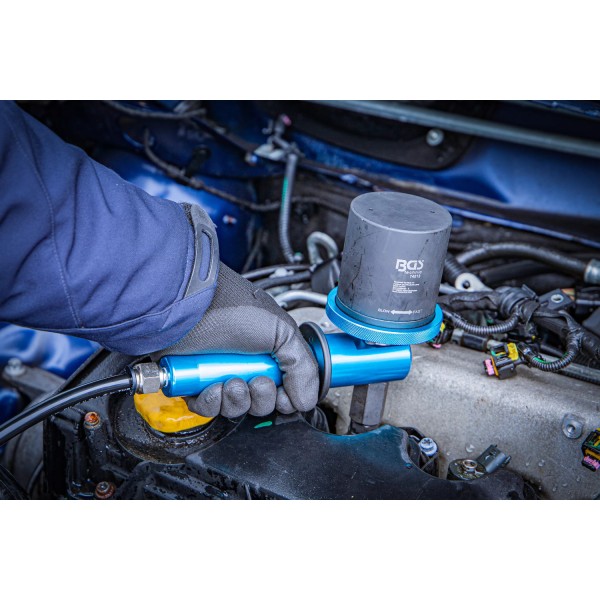

• the extractor is screwed in directly to the fixed injector by using the corresponding adapter
• compact design
• high impact effect
• including a wide range of adapters, suitable for the most commonly used diesel injectors
• piston stroke: 38 mm
• lifting speed: 300 / 900 per minute
• connecting hose: Ø 12 mm
• striking force: 600 N
• Gross weight 6349 g
• Spindle thread M18 x 1,5

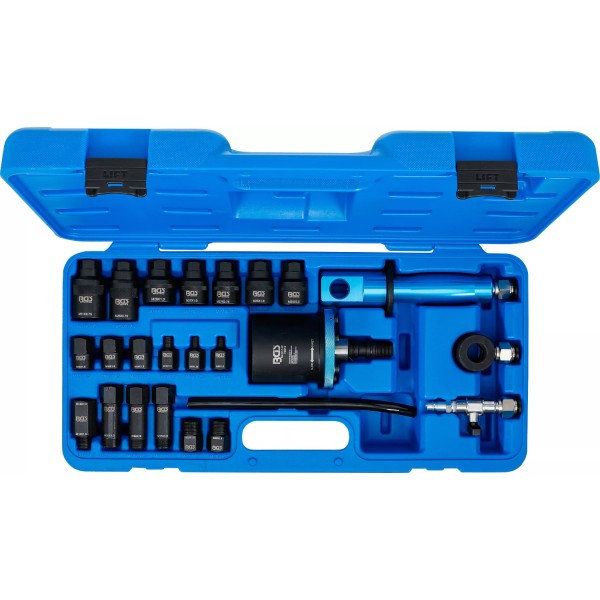

scope of delivery:

• 1 pneumatic injector extractor
• 1 compressed air adapter with handle
• 1 compressed air adapter without handle
• 1 compressed air valve
• 1 connecting hose
• 1 internal thread adapter M31 x 0.75
• 1 internal thread adapter M26 x 0.75
• 1 internal thread adapter M29 x 1
• 1 internal thread adapter M27 x 1
• 1 internal thread adapter M27 x 0.75
• 1 internal thread adapter M25 x 1
• 1 internal thread adapter M25 x 0.5
• 1 internal thread adapter M18 x 1.5
• 1 internal thread adapter M16 x 1.5
• 1 internal thread adapter M14 x 1.5
• 1 external thread adapter M10 x 1.5
• 1 external thread adapter M8 x 1.25
• 1 external thread adapter M8 x 1
• 1 external thread adapter M14 x 1.5
• 1 external thread adapter M20 x 1
• 1 external thread adapter M18 x 0.75
• 1 external thread adapter M17 x 1
• 1 external thread adapter M22 x 1.5
• 1 external thread adapter M20 x 1.5
