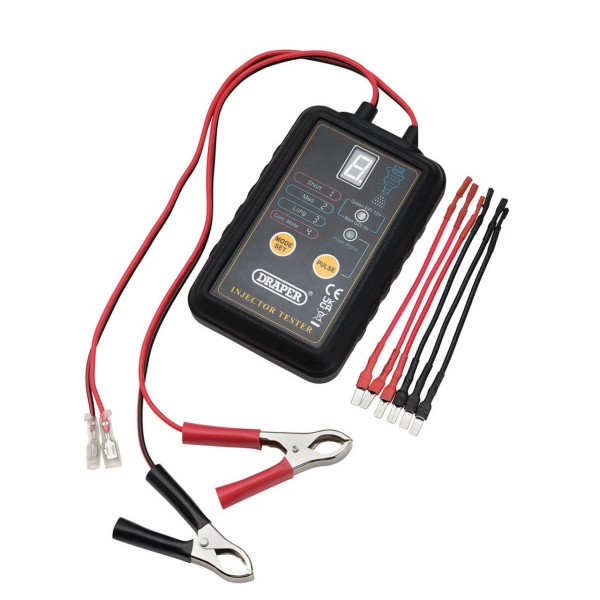

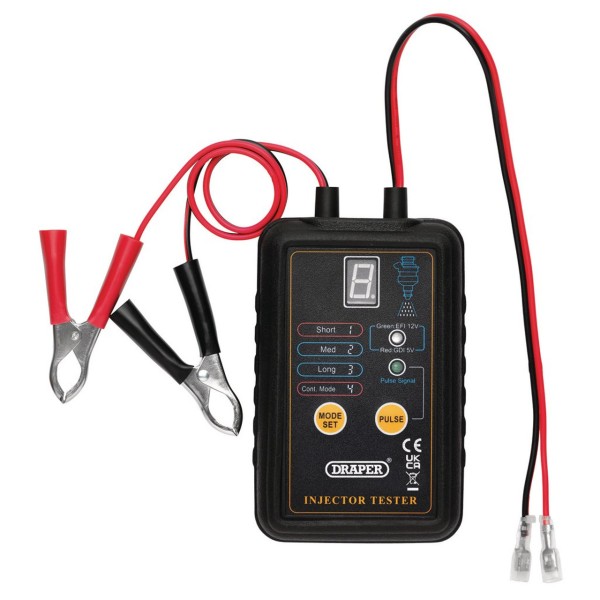

Draper 5V/12V Injector Tester (24703)

This injector tester is designed to operate injectors electronically, allowing for the diagnosis of fuel delivery issues such as blocked, sticky or leaking injectors. It features switchable 12V and 5V outputs, depending on the type of injector being tested or activated. The tester offers four selectable modes: short, medium, long, and continuous, and includes an easy-to-read LED indicator. In continuous mode, the tester can also be used for injector cleaning. Additionally, it comes with three pairs of extension leads to facilitate use in restricted engine bays.

• LED indicators
• Full function test or aid injector cleaning
• Switchable 12V and 5V output
• Four selectable modes - short, medium, long and continuous mode
• Powered by 12V car battery
• Includes three pairs of extension leads for restricted engine bays

Specifications

• Power supply 12V vehicle battery
• Injector type 1 12V EFI (Electronic fuel injection)
• Injector type 2 5V GDI (Gasoline direct injection)
• Fuel type Petrol
• Positive/negative lead length (injector and battery) 450mm
• Positive/negative extension lead length 140mm
• Dimensions 140 x 90 x 135mm
• Weight 243g
