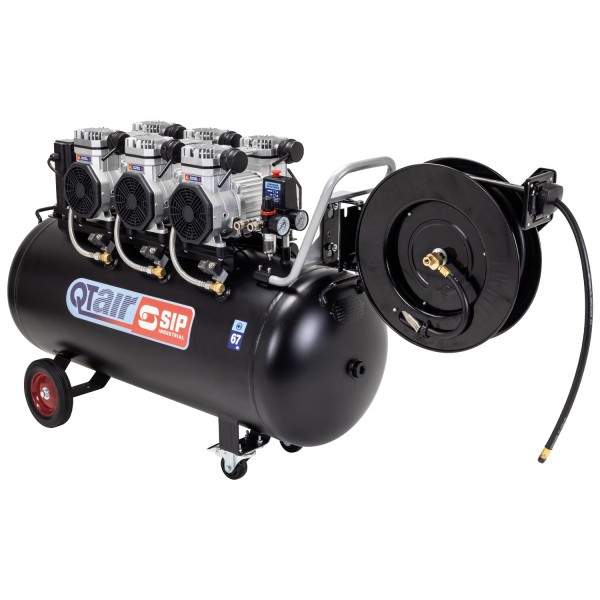

SIP QT AIR DD 4.5hp 200ltr Compressor & Hose Reel (05498AHR15S)

The SIP QT AIR DD 4.5hp 200ltr Ultra Low Noise Oil-Free Direct Drive Compressor is an innovative ultra low noise air compressor which operates at just 67dB and features slow-running 4-pole motor pump units for up to 50% longer life performance.

Built to support demanding higher air volume in automotive environments and large workshops, this oil-free and low maintenance compressor delivers 22.8CFM piston displacement resulting in 18.2CFM Free Air Delivery (FAD) from a single phase supply.

Supplied with a separate SIP Air Hose Reel R15 (07977) for mounting onto the compressor handle using the supplied bracket and fixings.

KEY FEATURES:

• 22.8CFM piston displacement resulting in 18.2CFM Free Air Delivery (FAD)

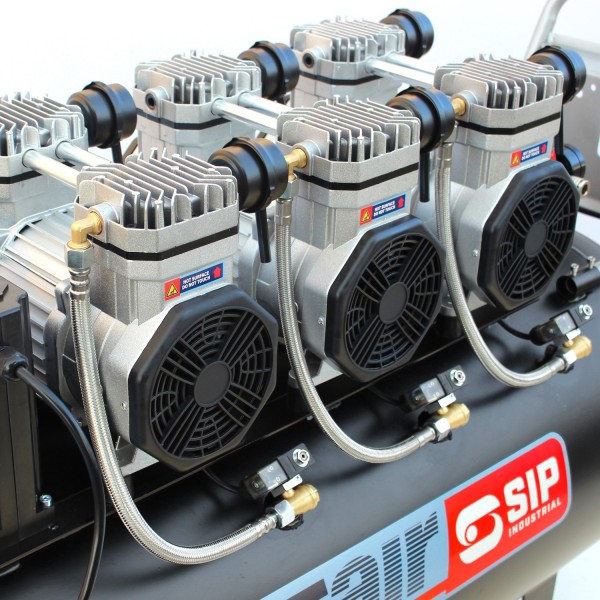

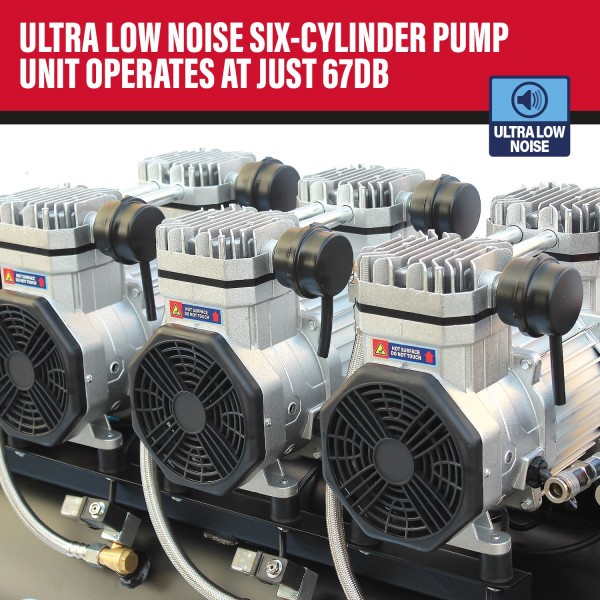

• Ultra low noise six-cylinder motor pump unit operates at just 67dB
• Slow-running oil-free 4-pole motors for longer life performance (4.5hp/3.3kW)

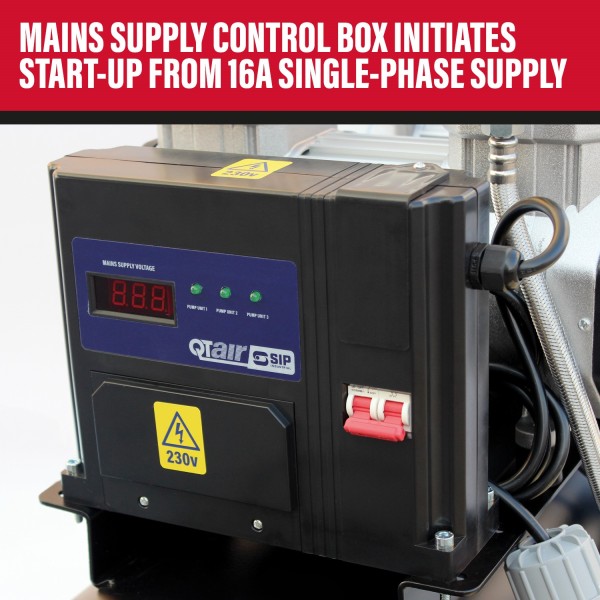

• Mains supply control box initiates start-up from a 16A single-phase supply

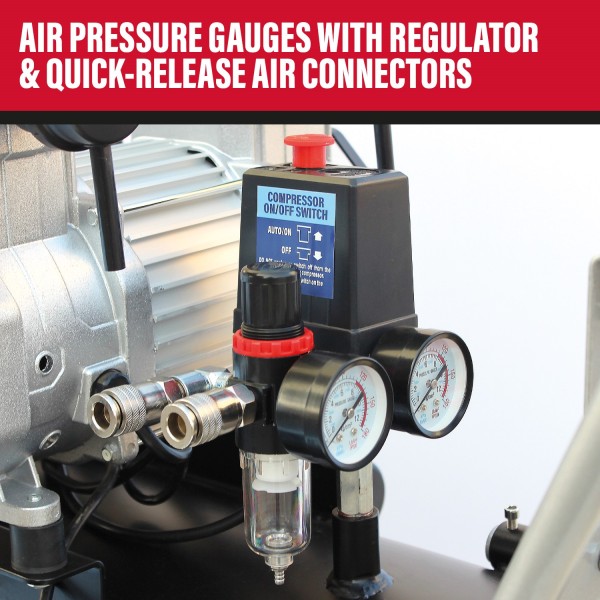

• 200ltr receiver with tank and working pressure gauges and quick-release connectors
• U-handle includes bracket and fixings for supplied SIP Air Hose Reel R15 (07977)

Technical Information:

• ITEM NO. 05498AHR15
• Input Supply: 230v (16A)
• Motor Power: 4.5hp (3.3kW)
• Receiver Size: 200ltr
• Piston Displacement: 22.8CFM (646ltr/min)
• Free Air Delivery (FAD): 18.2CFM (515ltr/min)
• Max. Air Pressure: 116psi (8bar)
• Noise Level: 67dB
• Net Weight: 110kg (05498) / 12kg (07977)
• Gross Weight: 130kg (05498) / 12.7kg (07977)
• Product Dimensions: 870(H) x 470(W) x 1260mm(D) (05498)

            445(H) x 550(W) x 115mm(D) (07977)

• Packaged Dimensions: 900(H) x 490(W) x 1290mm(D) (05498)

             530(H) x 460(W) x 180mm(D) (07977)
