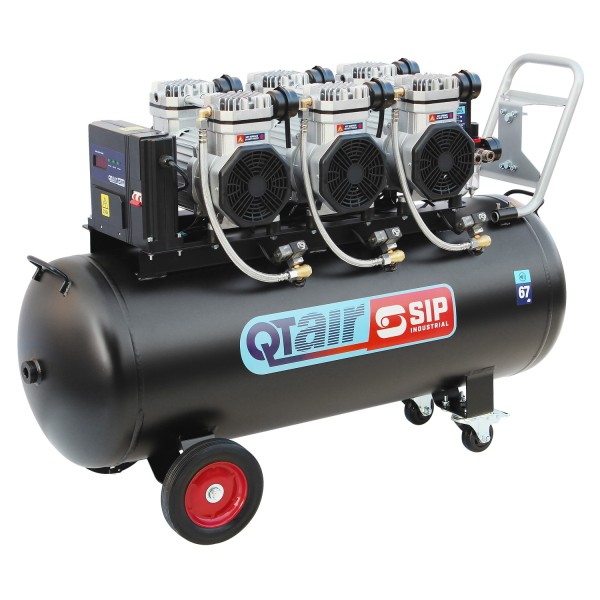

SIP QT DD 4.5hp 150ltr Ultra Low Noise Compressor (05497S)

The SIP QT AIR DD 4.5hp 150ltr Ultra Low Noise Oil-Free Direct Drive Compressor is an innovative ultra low noise air compressor which operates at just 67dB and features slow-running 4-pole motor pump units for up to 50% longer life performance.

Built to support demanding higher air volume in automotive environments and large workshops, this oil-free and low maintenance compressor delivers 22.8CFM piston displacement resulting in 18.2CFM Free Air Delivery (FAD) from a single phase supply.

KEY FEATURES:

• 22.8CFM piston displacement resulting in 18.2CFM Free Air Delivery (FAD)

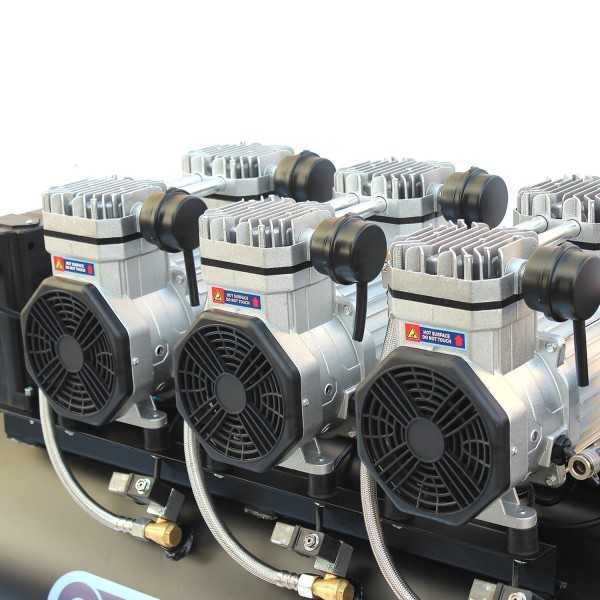

• Ultra low noise six-cylinder motor pump unit operates at just 67dB
• Slow-running oil-free 4-pole motors for longer life performance (4.5hp/3.3kW)

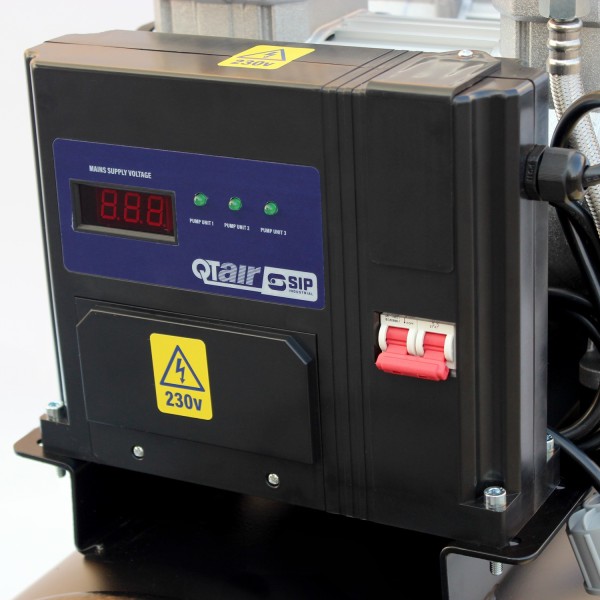

• Mains supply control box initiates start-up from a 16A single-phase supply
• 150ltr receiver with tank and working pressure gauges and quick-release connectors

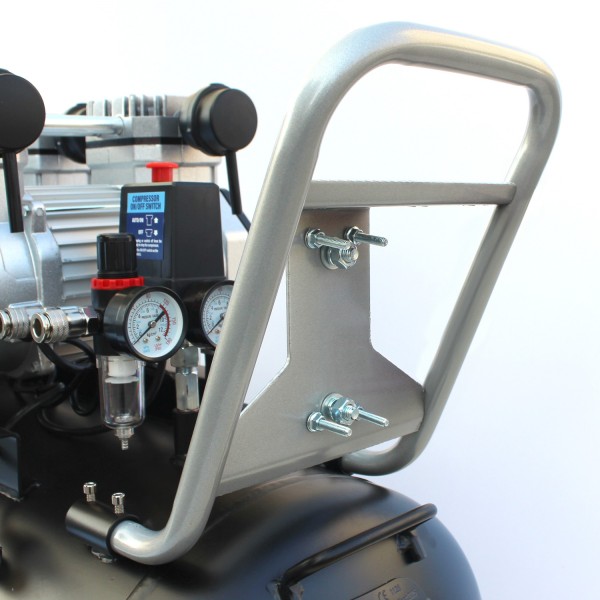

• U-handle includes bracket and fixings for separate SIP Air Hose Reel

Technical Information:

• ITEM NO. 05497
• Input Supply: 230v (16A)
• Motor Power: 4.5hp (3.3kW)
• Receiver Size: 150ltr
• Piston Displacement: 22.8CFM (646ltr/min)
• Free Air Delivery (FAD): 18.2CFM (515ltr/min)
• Max. Air Pressure: 116psi (8bar)
• Noise Level: 67dB
• Net Weight: 95kg
• Gross Weight: 115kg
• Product Dimensions: 815(H) x 450(W) x 1200mm(D)
• Packaged Dimensions: 860(H) x 450(W) x 1270mm(D)
