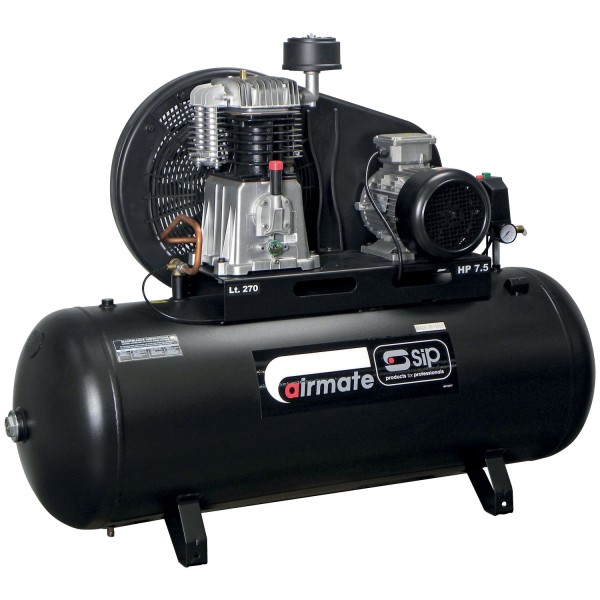

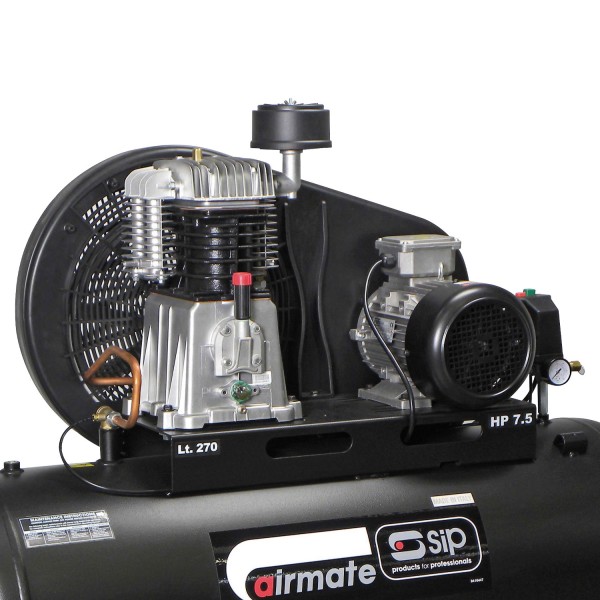

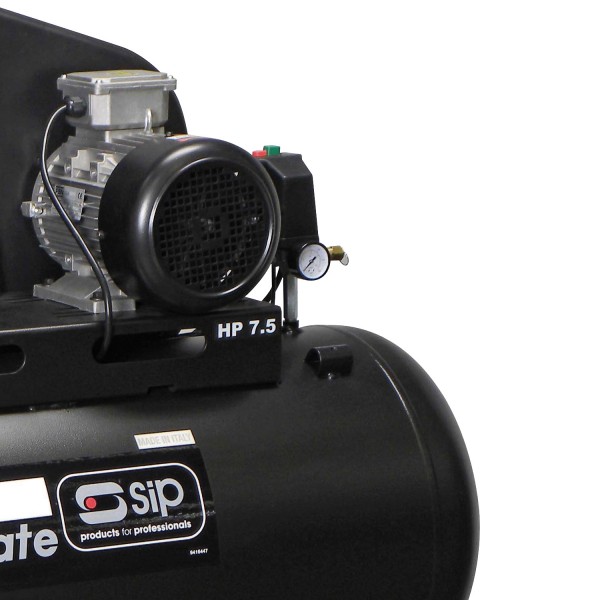

SIP TN7.5/270 270ltr Belt Drive Compressor (06585S)

The SIP TN7.5/270 270ltr Belt Drive Compressor utilises heavy-duty components including finned manifolds, an oversized crankcase and aluminium aftercooler to provide high-quality compressed air with improved moisture reduction. This provides a higher level of performance and longer compressor life.

A heavy-duty 2-stage pump gives increased durability and efficiency.

Ideal for a range of trade and professional-grade applications.

KEY FEATURES:

• Oil-lubricated and belt-driven compressor
• Heavy-duty 2-stage pump for high efficiency
• Extra-strong moulded plastic guards for improved safety
• Heavy-duty cast iron barrel for an increased service life

Technical Information:

• ITEM NO. 06585
• Input Supply: 400v (20A) 3-PHASE
• Motor Power: 7.5hp (5.6kW)
• Receiver Size: 270ltr
• Piston Displacement: 34.00CFM (963ltr/min)
• Free Air Delivery (FAD): 25.00CFM (708ltr/min)
• Max. Air Pressure: 145psi (10bar)
• No. of Cylinders: 2 cylinders
• No. of Stages: 2 stages
• Net Weight: 168.00kg
• Gross Weight: 177.00kg
• Product Dimensions:
• Packaged Dimensions: 1340(H) x 560(W) x 1650mm(D)
