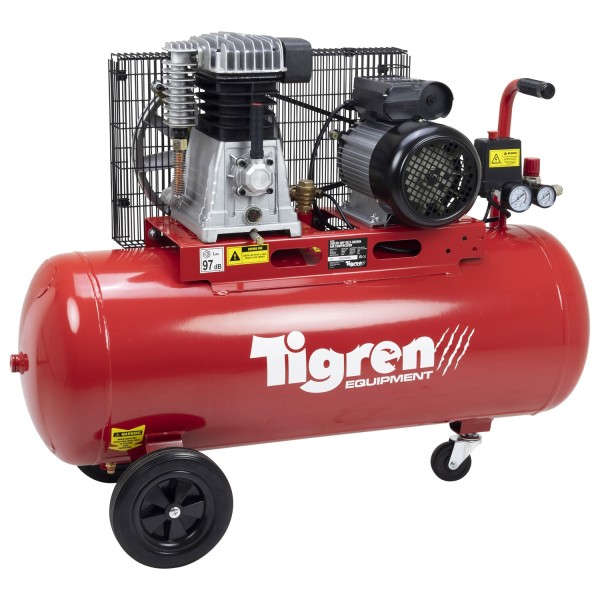

TIGREN 100ltr 3hp Belt-Driven Compressor (04396S)

The TIGREN 100ltr 3hp Belt-Driven Compressor delivers performance and mobility to small and medium-sized workshops. This no-nonsense solution is ideal for demanding and busy work areas and is particularly suited to automotive and agriculture applications.

KEY FEATURES:

• 14CFM piston displacement and 10CFM free air delivery (FAD)
• Belt-driven transmission for proven and reliable everyday use
• Compact, space-saving, wheel-mounted design with 100ltr receiver
• Twin cylinder splash oil-lubricated pump for increased production
• Heavy-duty brushless induction motor meets demanding lifespan
• Adjustable air regulator optimises working pressure

Technical Information:

• ITEM NO. 04396
• Input Voltage: 230v (13A)
• Motor Power: 3hp (2.2kW)
• Receiver Size: 100ltr
• Max. Air Pressure: 150psi (10bar)
• Pump Speed: 1100rpm
• Piston Displacement: 14CFM (400ltr/min)
• Free Air Delivery (FAD): 10CFM (285ltr/min)
• Isolation Class: Class F
• Protection Type: IP54
• Motor Efficiency: 80%
• Noise Level: 97dB
• Net Weight: 65.00kg
• Gross Weight: 74.00kg
• Product Dimensions: 750(H) x 350(W) x 1030mm(D)
• Packaged Dimensions: 775(H) x 380(W) x 1070mm(D)
