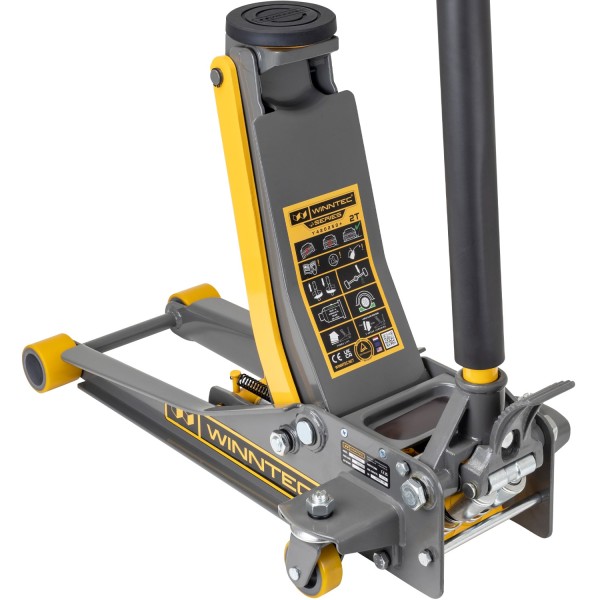

WINNTEC® +SERIES 2 Ton Low-Profile Trolley Jack (09712S)

The WINNTEC® +SERIES 2 Ton Turbo Lifter Low-Profile Trolley Jack is a high-performance hydraulic jack engineered for professional automotive garages and workshops, mobile service vans and general vehicle maintenance operations.

A low-profile chassis provides access under reduced clearance vehicles, while the Turbo Lifter™ twin-piston pump delivers rapid approach to the load point with minimal handle strokes. Two-Speed Lowering™ enables controlled descent under varying load conditions.

An enhanced +SERIES hydraulic power unit and robot-welded steel design ensures long-term stability and wear resistance. Supported by a World Exclusive 5-Year Warranty.

KEY FEATURES:

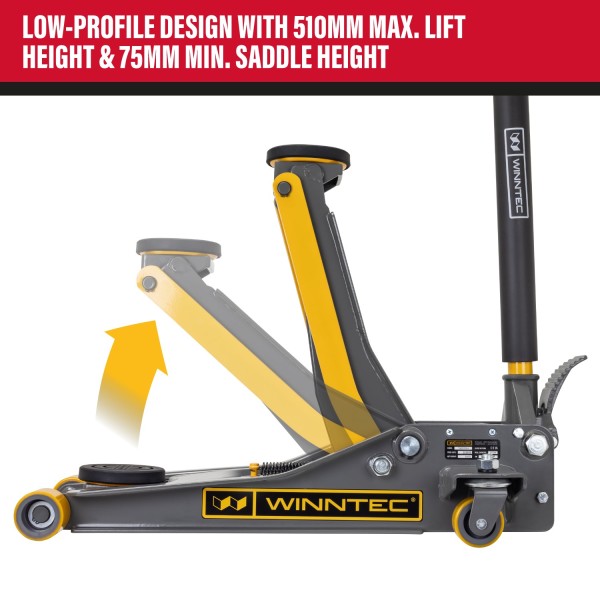

• Low-profile design with 510mm max. lift height and 75mm min. saddle height
• Turbo Lifter™ twin-piston pump for accelerated no-load lift and reduced user effort
• Two-Speed Lowering™ system for smooth, precise load-sensitive controlled descent
• +SERIES hydraulic power unit with chromed components and extended-life seals
• Robot-welded with PU wheels for high structural strength and fatigue resistance
• Engineered for durability and supported by a World Exclusive 5-Year Warranty

Technical Information:

• ITEM NO. 09712
• Max. Lifting Capacity: 2 Ton
• Max. Lifting Height: 510mm
• Min. Saddle Height: 75mm
• Jack Length: 686mm
• Jack Width: 343mm
• Net Weight: 32kg
• Gross Weight: 34kg
• Product Dimensions: 1310(H) x 343(W) x 686mm(D)
• Packaged Dimensions: 195(H) x 400(W) x 805mm(D)
